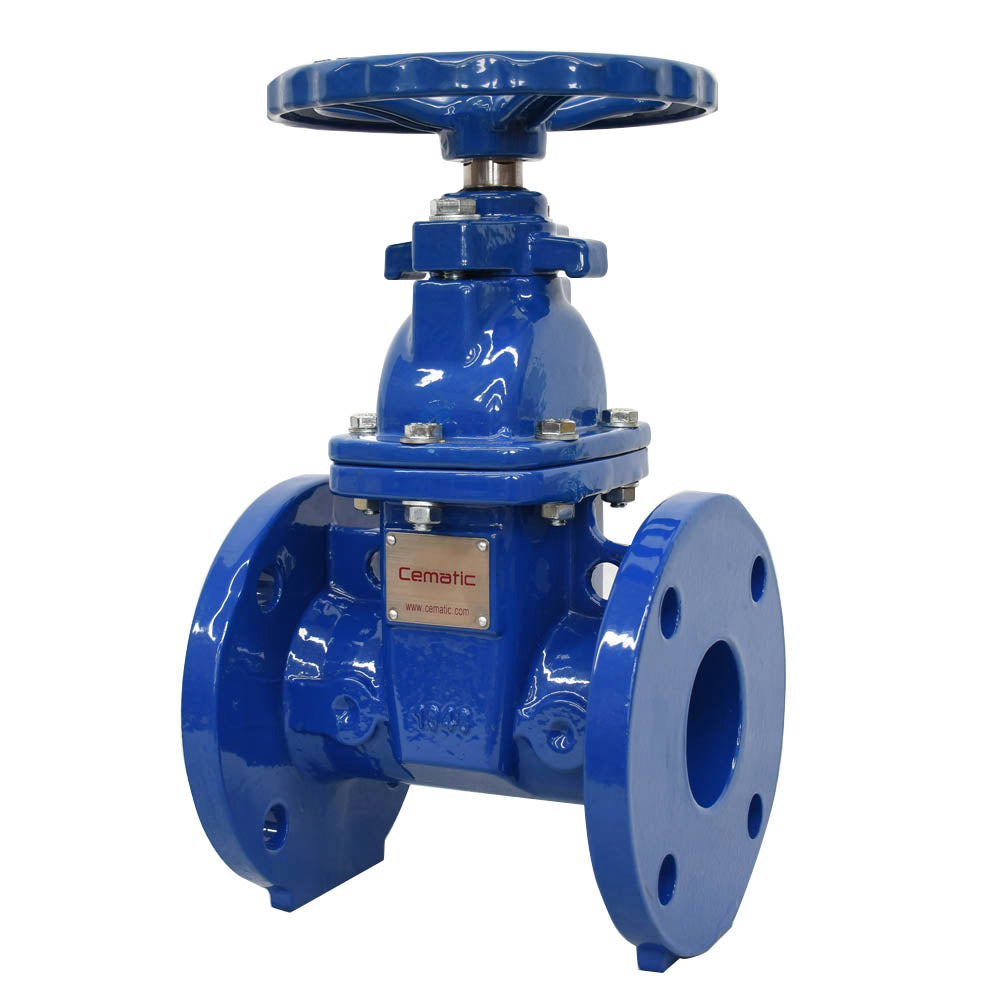

ANSI 150 Flanged Gate Valve

The ANSI 150 flanged gate valve controls and regulates the flow of liquids and gases in industrial piping systems. Therefore, it is the ideal solution for handling non-aggressive liquids in low and medium pressure processes.

Its GGG50 cast iron body provides mechanical strength and a long service life. In addition, EPDM seals and seats ensure a tight and durable seal in various service conditions. Manual operation via handwheel allows precise flow control.

Features of the ANSI 150 flanged gate valve

The GGG50 iron body offers superior mechanical resistance to conventional gray iron. In addition, the resilient EPDM seal ensures reliable tightness in a temperature range of -10°C to 110°C. On the other hand, the non-rising stem design reduces the space required for operation. Likewise, ANSI B16.1 Class 150 flanges facilitate installation and maintenance in existing systems.

Specifications

• Body: GGG50 cast iron
• Seals and seat: Resilient EPDM
• Design: AWWA C515-09
• Face-to-face: ANSI B16.10
• Stem: Non-rising
• Flanges: ANSI B16.1 Class 150
• Maximum pressure: 250 PSI
• Working temperature: -10°C to 110°C

Applications

The ANSI 150 flanged gate valve stands out in potable water systems for controlling and regulating flow in pipes with a tight seal. Likewise, the agricultural irrigation sector widely uses it thanks to its reliable closure that prevents water loss. For example, in sewage systems, it facilitates wastewater management and infrastructure maintenance.

Potable water systems The ANSI 150 flanged gate valve controls water flow in pipes with a reliable tight seal. Therefore, the EPDM seal ensures tightness in potable water distribution systems.

Irrigation networks Offers reliable closure in agricultural irrigation systems to prevent water loss. In addition, its manual operation with a handwheel allows for quick and direct adjustment in the field.

Sewage systems Facilitates wastewater management and flow control in drainage networks. Consequently, the GGG50 body withstands the aggressive conditions of the sewage environment.

Water treatment plants Controls flow in water purification and treatment processes. Likewise, the EPDM seal resists chemicals present in water treatment processes.

Heating and cooling systems Regulates water flow in heating circuits and cooling systems. Therefore, it operates reliably within the temperature range required by these systems.

Mining facilities Handles process water and tailings in demanding industrial environments. Finally, the mechanical resistance of GGG50 iron ensures durability against the abrasive conditions of mining.

The Cematic ANSI 150 flanged gate valve combines robust construction, reliable sealing, and low maintenance. It is the ideal solution for potable water, irrigation, sanitation, water treatment, and mining.
