SS316L Sanitary Butterfly Valve — Clamp and Weldable Connections for CIP/SIP in the Food, Beverage, and Pharmaceutical Industries

In the food, beverage, and pharmaceutical industries, a valve is not just a flow control device — it is a critical component of the process safety system. Every valve in contact with the product must ensure it retains no residue between batches, can be thoroughly cleaned and sterilized without disassembly (CIP/SIP), and its materials do not release substances that alter the product's quality, safety, or purity. The SS316L sanitary butterfly valve with clamp or weldable connection is the component that meets all these requirements for high-flow lines: SS316L stainless steel disc and body with a mirror-polished surface, food-grade EPDM or silicone elastomers, and the Tri-Clamp connection system that has become the universal standard in the global sanitary industry.

The sanitary butterfly valve boasts the highest flow coefficient (Cv/DN) of all available sanitary valves — the disc in the fully open position presents the least possible obstruction to flow, making this valve the preferred choice when process flow is high and pressure drop must be minimal: filling and emptying fermentation tanks, CIP circuit return, finished product distribution to fillers, and purified water distribution in pharmaceutical plants.

What makes a butterfly valve "sanitary"?

Not all 316L stainless steel valves are sanitary — the "sanitary" designation implies a set of specific design characteristics that allow for complete and verifiable cleaning of the valve without disassembly:

• Internal surface Ra ≤ 0.8 µm: The surface finish, measured in average arithmetic roughness Ra, determines how easily the metal surface can be cleaned. Above Ra 0.8 µm (equivalent to a satin finish), bacteria can adhere to surface micro-irregularities and form biofilm resistant to CIP cleaning. Below Ra 0.8 µm (mirror finish), bacterial adhesion is drastically reduced, and the flow of CIP solution carries away residues without leaving colonies. 3-A and EHEDG standards define Ra ≤ 0.8 µm as the maximum for surfaces in contact with the product — standard industrial valves have Ra 3.2–6.3 µm, unacceptable for sanitary use.
• No dead spaces: The design of the body and seat of the sanitary butterfly valve eliminates any cavities where process fluid could stagnate — especially in the fully open valve position, which is the continuous operating position in most process applications. In sanitary butterfly valves, the elastomeric seat is designed so that the CIP cleaning fluid completely sweeps it without low-velocity areas where residual product could remain.
• Elastomers approved for food contact: The EPDM and silicone used in Cematic sanitary butterfly valve seats comply with FDA 21 CFR (Code of Federal Regulations) and European Regulation CE 1935/2004, which define which materials are suitable for food contact. Not all EPDM is the same — standard grade EPDM may contain plasticizers and fillers unsuitable for food contact; FDA-grade EPDM is formulated without these compounds.
• Tool-free removable clamp connection: The Tri-Clamp (ISO 2852) clamp system allows for complete disassembly of any line component in seconds with just a wing nut wrench or even manually — no open-end wrenches, no pressurized piping, no cooling waiting time. This rapid disassembly capability is essential for periodic cleaning verifications and visual inspection of the valve interior required by food safety audits.
• SS316L (low carbon) material: 316L (low carbon, C ≤ 0.03%) is the standard stainless steel for equipment in contact with food and pharmaceuticals. The low carbon content prevents intergranular corrosion in heat-affected zones during welding of connections and in repeated SIP sterilization cycles with steam — a problem that would occur with standard SS316 in frequent, long-term SIP cycles.

Available Connections

Tri-Clamp (ISO 2852) — The Universal Sanitary Standard

The Tri-Clamp connection is the most widely used removable joining system in the food, beverage, and pharmaceutical industries worldwide. A two-piece clamp collar joins the two clamp ferrules (each with a 20° external bevel) and compresses an elastomeric gasket between them to create the seal. Complete disassembly only requires loosening a wing bolt — no special tools, in less than 10 seconds — immediately granting access to the valve interior for inspection and manual cleaning when CIP is insufficient.

• Diameters: DN25 (1"), DN38 (1½"), DN51 (2"), DN63.5 (2½"), DN76.1 (3"), DN101.6 (4"), DN152.4 (6")
• Standard: ISO 2852 / DIN 32676
• Gasket: FDA EPDM or silicone — included with the valve
• Application: The standard option for all new sanitary installations. Maximum flexibility for disassembly and inspection.

Weldable (Butt Weld — BW)

Weldable ends are joined to the piping by sanitary TIG orbital welding — the joining method that ensures the highest microbiological integrity of the line by completely eliminating removable gaskets inside the system. A clamp gasket, however well designed, always has a small irregularity at the joint between the gasket and the metal that can be a point of adhesion for microorganisms. Orbital welding eliminates this risk.

• Application: High-purity pharmaceutical systems (WFI, purified water, clean steam) where the number of removable gaskets in the circuit must be minimized. Sterile product lines in the pharmaceutical and biotechnology industries where bacterial contamination of a single gasket can compromise high-value batches.
• Maintenance: A welded valve cannot be disassembled without cutting the pipe — the dead-space-free design and CIP/SIP compatibility are even more critical in this format because the only way to clean the valve is with the in-line system.

DIN 11851 — Sanitary Threaded Connection

The DIN 11851 connection (sanitary threaded union, milk type) is the historical European standard for equipment in contact with milk and dairy products. Its threaded union system with collar and gasket allows for quick manual disassembly. Although the Tri-Clamp has increasingly replaced DIN 11851 in new installations due to its greater versatility, DIN 11851 remains the dominant standard in European dairy plants and in industries with equipment of European origin.

• Application: Dairy processing plants with European-made equipment, installations with an established DIN standard requiring compatibility with existing infrastructure.

Seat Materials — EPDM and Silicone

FDA Grade EPDM — The Standard Seat

FDA-grade EPDM is the benchmark seat for the vast majority of food and beverage applications. Its excellent resilience, resistance to SIP sterilization steam up to 134 °C, and compatibility with standard CIP solutions (1–3% NaOH, 0.5–2% HNO₃) make it the right seat for:

• Milk and dairy products, yogurt, creams, processed cheeses
• Juices, nectars, and fruit beverages
• Beer, wine, and fermented beverages
• Purified water, deionized water, and reverse osmosis water
• CIP solutions with NaOH, HNO₃, and chlorinated disinfectants in standard concentrations
• Clean steam up to 134 °C for SIP cycles

Not compatible with: High-concentration oils, fats, hydrocarbons, concentrated organic solvents, high-concentration acids (>10% for some EPDM grades).

FDA/USP Class VI Grade Silicone — For High Purity and Biotechnology

FDA/USP Class VI grade silicone is the preferred seat in pharmaceutical, biotechnology, and high-purity food processes where the elastomer's biocompatibility must be certified to the most demanding level:

• Greater flexibility than EPDM at low temperatures — maintains its elastic properties from -60 °C to +200 °C
• Superior resistance to permanent compression (compression set) — the silicone seat maintains its shape and seal for more cycles than EPDM
• Higher purity — USP Class VI silicone has been tested in vivo to confirm it does not release cytotoxic or hemolytic substances
• Resistance to UV rays and ozone — important in ozone or UV radiation sterilization systems present in the pharmaceutical industry

Typical silicone applications: Cell culture media for bioreactors, injectable and sterile solutions in pharmaceuticals, WFI and pharmaceutical-grade purified water systems, biotechnology processes with live culture media where minimal elastomer leaching is critical.

Silicone limitation: Lower resistance to concentrated acids and alkalis compared to EPDM — for CIP cycles with caustic soda greater than 2% or nitric acid greater than 1%, verify the resistance of the specific silicone grade with our technical team.

CIP and SIP Compatibility

Compatibility with Clean-In-Place and Sterilize-In-Place systems is the most important design requirement for a sanitary butterfly valve — and the main reason why a standard valve cannot be used in a sanitary process:

CIP (Clean-In-Place) — In-Situ Cleaning

The CIP system sequentially circulates hot water, NaOH solution (1–3% at 70–80 °C for alkaline cleaning), rinse water, HNO₃ solution (0.5–2% at 60–70 °C for acid cleaning), and final rinse water through the entire process line without disassembling any component. The Cematic sanitary butterfly valve is compatible with this complete cycle:

• The FDA-grade EPDM seat resists diluted NaOH (alkaline cleaning) and diluted HNO₃ (acid cleaning) at standard CIP concentrations and temperatures for thousands of cycles
• The internal surface Ra ≤ 0.8 µm retains no product or cleaning solution residues — the CIP return flow carries away all residue without accumulation zones
• The dead-space-free design ensures that the CIP solution accesses all internal valve surfaces with sufficient velocity for effective cleaning

SIP (Steam-In-Place) — In-Situ Steam Sterilization

The SIP system injects saturated steam at 121–134 °C and 1.0–3.0 bar gauge pressure through the line for 20–30 minutes to sterilize it completely. The EPDM seat resists these temperature cycles without degradation over the thousands of typical cycles in the installation's lifespan. The heating and cooling rate in SIP cycles can cause thermal expansion and contraction of the metal body — the sanitary butterfly valve's design absorbs these variations without loss of seal or seat deformation.

Sanitary Design Standards and Certifications

• 3-A Sanitary Standards (Inc.): The North American standard for sanitary design for equipment in contact with food and dairy products. Defines maximum surface roughnesses (Ra ≤ 0.8 µm), minimum internal corner radii (≥ 3 mm), accepted materials, and dead-space-free geometry. 3-A certification is required by many export contracts to the U.S. and Canada and is the reference standard in dairy and beverage plants in Mexico.
• EHEDG (European Hygienic Engineering & Design Group): The European equivalent of 3-A. Required in plants that export to Europe or operate under the quality standards of European retail chains. EHEDG design principles are identical to those of 3-A in their fundamental elements.
• FDA 21 CFR: U.S. Code of Federal Regulations — defines elastomers and polymers suitable for contact with food (chapters 177 and 182) and pharmaceuticals. The EPDM and silicone seats of Cematic sanitary valves comply with the applicable chapters of the CFR.
• CE 1935/2004: European Regulation establishing requirements for materials in contact with food. FDA 21 CFR grade elastomers typically also comply with European regulation 1935/2004.
• NOM-251-SSA1-2009: Official Mexican Standard from COFEPRIS that establishes Good Hygiene Practices for food establishments. Requires that materials in contact with food be inert, non-porous, and easily washable — criteria that the sanitary butterfly valve meets by design.

Note on available documentation at Cematic: We supply sanitary valves with SS316L material certificates and elastomer technical datasheets with reference to FDA 21 CFR. For projects requiring formal 3-A or EHEDG product certification documentation (not just design), we transparently communicate the available documentation in each case. See also the documentation policy in our pharmaceutical valve category →

Technical Specifications

• Body: AISI 316L stainless steel (CF3M in cast)
• Disc: AISI 316L stainless steel, mirror-polished surface Ra ≤ 0.8 µm on fluid-contacting faces
• Shaft / Stem: SS316L stainless steel in two pieces — sealed with PTFE retainers to prevent metal-fluid contact
• Seat: FDA grade EPDM or FDA/USP Class VI grade Silicone — vulcanized to the body
• Surface Finish: Ra ≤ 0.8 µm standard on product-contact surfaces; Ra ≤ 0.4 µm available on request for more demanding applications (aseptic processes, sterile pharmaceuticals)
• Connections: Standard Tri-Clamp ISO 2852; BW weldable and DIN 11851 available
• Diameters: DN25 to DN150 (1" to 6") in the most demanded clamp sizes
• Nominal Pressure: PN10 — up to 10 bar at ambient temperature; reduced in SIP steam service
• Operating Temperature: -20 °C to +130 °C with EPDM; -60 °C to +180 °C with silicone
• SIP Sterilization Temperature: Up to 134 °C (standard autoclave process) with both seats
• Design Standard: EN 593 hygienic; 3-A and EHEDG principles
• Factory Test: Seat tightness test and hydrostatic body test

Comparison — Sanitary Butterfly vs. Standard SS316 Wafer Butterfly

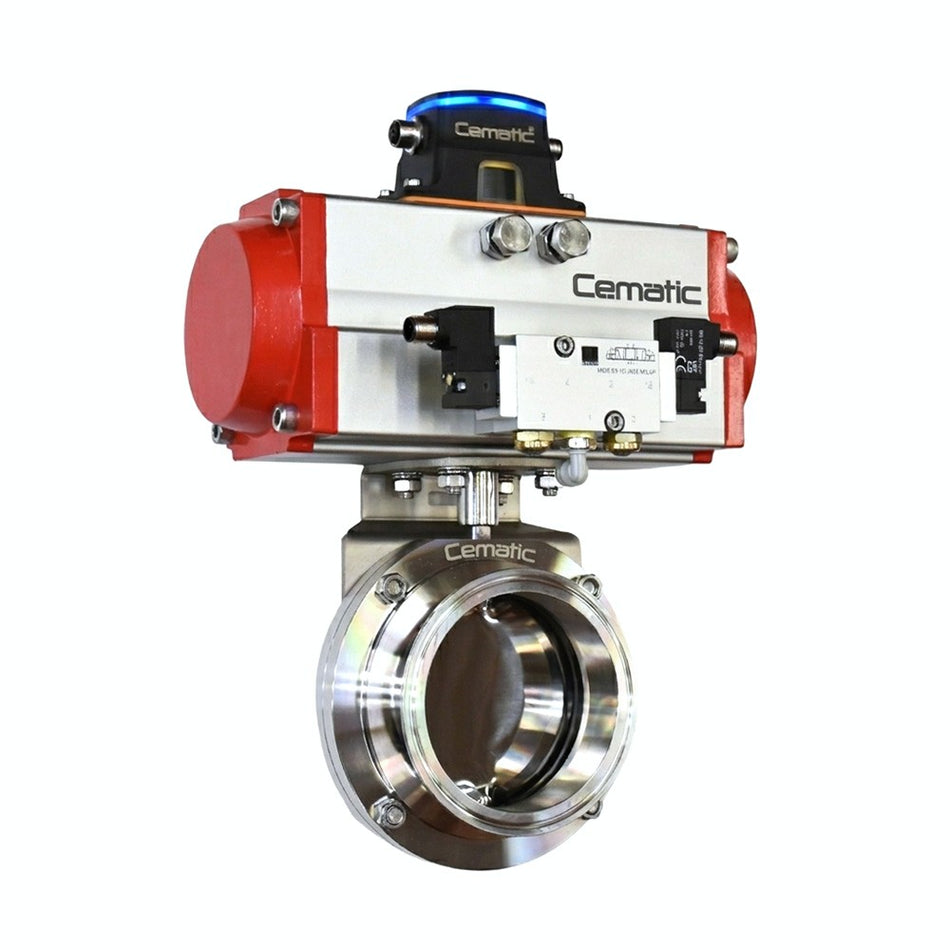

Automation — Pneumatic Actuator in Sanitary Processes

The Cematic sanitary butterfly valve is designed to operate with a quarter-turn pneumatic actuator via an ISO 5211 interface, being the most demanded configuration in food, beverage, and pharmaceutical plants:

• Single-acting NC or NO pneumatic actuator: For automated CIP sequences where the valve must close in case of any control system failure (single-acting NC), or remain open during CIP solution return (single-acting NO). The correct fail-safe configuration depends on the valve's role in the process CIP sequence.
• Actuator materials in sanitary environments: Actuators in sanitary process areas must have a minimum IP67 protection and should not have upper cavities where cleaning water can accumulate and generate contamination foci. Specify actuators with gravity drainage design or with a sanitary cap when the installation is in a high-risk process area (product manufacturing area, clean room, filling area).
• Integration with food processing PLCs: PLCs in food and beverage plants (Allen-Bradley, Siemens S7, Rockwell) operate with 24 VDC digital outputs directly compatible with actuator control solenoids. Integration with recipe control systems (batch control) allows for complete automated production, CIP, and SIP sequences without manual intervention.

See automation packages: Butterfly Valves with Pneumatic Actuator →

Main Industries and Applications

• Dairy Industry: The historical application of the clamp hygienic butterfly valve. Distribution of raw and pasteurized milk, cream, whey, liquid yogurt, and other fluid dairy products in DN50–DN150. The hygienic butterfly valve serves as the high-flow isolation valve in transfer lines between tanks, pasteurizers, and filling lines — where a single-seat valve would be insufficient in flow rate and a hygienic ball valve has a higher cost in large diameters.
• Brewing and Fermented Beverages Industry: Flow control of wort, green beer, filtered beer, and CO₂ in fermentation tanks, diatomaceous earth filters, carbonators, and filling lines. Beer is particularly sensitive to oxidation and bacterial contamination — the dead-space-free design of the hygienic butterfly valve is critical to prevent infection foci that could ruin entire batches.
• Juice, Nectar, and Beverage Industry: Distribution of fruit pulp, concentrates, nectar, and ready-to-drink beverages in UHT pasteurization, mixing, and aseptic filling lines. The smooth Ra ≤ 0.8 µm surface prevents the adhesion of pectins and fruit proteins that would form deposits difficult to clean with CIP on a rough-surfaced valve.
• Pharmaceutical and Biotechnology Industry: Distribution of purified water (PW) and water for injection (WFI) in distribution loops, flow control in bioreactors and cell culture systems, and transfer lines for APIs (active pharmaceutical ingredients) dissolved in water. USP Class VI silicone is the preferred seat in these applications due to its higher certified biocompatibility. Welded connections are more common in pharmaceuticals than clamp connections to minimize removable seals in the circuit.
• Vegetable Oil and Edible Fat Production: Distribution of crude oils, refined oils, and fluid vegetable fats at process temperature. EPDM is compatible with vegetable oils at moderate temperatures — check with our technical team for high-temperature oils or those with a high free fatty acid content.
• Cosmetics and Personal Care Industry: Distribution of base creams, lotions, gels, and emulsions in manufacturing plants operating under GMP or ISO 22716 standards. The hygienic clamp butterfly valve allows for quick disassembly for manual cleaning between products of different colors or formulations.
• High-Flow CIP Systems: In the return lines of a food or beverage plant's CIP system, the hygienic butterfly valve is preferred over ball or seat valves due to its higher flow coefficient — hot CIP solutions (60–80 °C) are returned to the tank at a higher flow rate than production, and the hygienic butterfly valve offers minimal additional pressure drop in these return lines.

Why choose Cematic for your hygienic butterfly valves?

We have available stock in Mexico City for the most common clamp diameters: DN51 (2"), DN63.5 (2½"), DN76.1 (3"), and DN101.6 (4") with FDA-grade EPDM seats. We supply with SS316L material certificates and elastomer data sheets referencing FDA 21 CFR. We advise on the selection of EPDM vs. silicone based on the fluid and the CIP/SIP cycles of the specific process, and on the clamp vs. welded decision based on the microbiological criticality level of the line. For pharmaceutical processes with validation requirements, we transparently provide available technical documentation and its limitations. Quotes are provided the same business day. Shipping throughout the Mexican Republic. Contact us via WhatsApp or at ventas@cematic.com.
