Ball Valves with Actuator — Complete Assembled and Tested Packages for Immediate Automation
The ball valve with actuator is the most in-demand automation solution in the Mexican industry for control points that require a complete hermetic seal — without the micro-leaks that can occur in butterfly valves over time — and opening and closing within 1 to 60 seconds depending on the type of actuator selected. In the chemical, petrochemical, food, pharmaceutical, water, and manufacturing industries, the automated ball valve is the standard component in:
- Reagent dosing systems where hermetic sealing between cycles is critical for dosing accuracy
- Industrial gas lines where any micro-leakage in the closed position generates economic loss and safety risk
- Individual equipment isolation points (pumps, exchangers, filters) for maintenance without stopping the system
- Fast-closing safety valves (ESD — Emergency Shutdown) where hermetic closure in an emergency is the primary functional requirement
- Precision filling systems where the dosed volume directly depends on the accuracy of the valve's closure
Cematic supplies complete ball valve and actuator assemblies as packages assembled and tested in the workshop: the actuator correctly sized for the valve's torque at the process diameter and pressure, with a verified safety factor, assembled on the valve's ISO 5211 interface with the correct torque, solenoid installed in the actuator's NAMUR port without intermediate piping, and limit switch box mounted and adjusted to confirm open and closed positions to the control system.
Pneumatic Actuator vs. Electric Actuator for Ball Valve
The first decision when automating a ball valve is the type of actuator. Ball valves generally have a higher operating torque than butterfly valves of the same diameter — the solid sphere in contact with two PTFE seats requires more turning force than the butterfly's disc. This torque difference is relevant when comparing the two types of actuators:
Pneumatic Actuator — Higher Torque, Faster Speed, Fail-Safe by Spring
The pneumatic rack and pinion actuator is the first choice for ball valve automation when a compressed air network is available. For ball valves in particular, the pneumatic type has additional advantages compared to butterfly valves:
- Higher torque available at the same size: The torque of ball valves in larger diameters (DN50 and above) at high pressures can be considerable — the pneumatic actuator provides this torque economically and compactly
- Speed of 1 to 5 seconds: For high-cadence dosing systems, fast filling, and ESD systems where closing time is a safety requirement
- Single-acting NC or NO by spring: For hazardous reagent dosing valves (NC — closes upon failure) or emergency isolation systems, the mechanical spring guarantees the safe position without relying on any active electronic component
- Millions of cycles without overheating: In filling or dosing systems with high cycle frequency (more than 30 per hour), the pneumatic actuator operates continuously without the thermal limitations of the electric motor
👉 View full range: Ball Valves with Pneumatic Actuator →
Electric Actuator — No Pneumatic Network, Modulating and Digital Communication
The electric actuator is the solution when the installation point does not have a compressed air network, or when the process requires proportional modulating control or direct digital communication:
- No air compressor: Only an electrical cable (24 VDC, 110 VAC or 220 VAC) to the control point — no air piping, no local compressor
- Native 4–20 mA modulating control: In models with analog signal, the ball can be positioned at any angle between 0° and 90° to regulate flow — without an additional positioner. For precision flow regulation, however, see the control globe valve → which offers better flow characteristics for proportional control
- Modbus RTU or BACnet communication: Direct integration with SCADA, DCS, and building management systems without signal converters
- 24 VDC power from battery or solar panel: For remote points without conventional electrical infrastructure
👉 View full range: Ball Valves with Electric Actuator →
Fail-Safe Position — The Most Critical Decision in Automated Ball Valves
The automated ball valve has a system failure behavior that must be defined from the process design — it cannot be changed in the field without replacing the actuator:
| Failure Mode | Behavior | Required Actuator | When to Specify |
|---|---|---|---|
| Normally Closed (NC) | The ball closes by spring upon loss of power | Single-acting pneumatic NC | Dosing of hazardous reagents, product lines with spill risk, emergency shutdown ESD |
| Normally Open (NO) | The ball opens by spring upon loss of power | Single-acting pneumatic NO | Critical cooling water supply, equipment lubrication, emergency ventilation |
| Fail-in-last-position | The ball maintains its last position upon loss of power | Double-acting pneumatic or standard electric | Systems where the last position is safe — most general processes |
| Fail-Close with battery (electric) | Battery closes the ball in <5 seconds | Electric with battery backup | Installations without pneumatic network where defined fail-safe is required |
The Cematic Package — Why Supply the Assembly, Not the Components
The difference between buying a ball valve and an actuator separately and acquiring the assembled Cematic unit is not just about logistical convenience — it's about technical reliability from the first operating cycle:
- ✅ Verified technical sizing: The torque of a ball valve varies significantly with diameter, differential pressure, and seat material. Cematic calculates the actual valve torque at the customer's specific process diameter and pressure, applies the correct safety factor (minimum 1.25×), and selects the actuator with sufficient torque — avoiding the most common error in ball automation: undersized actuators that fail to complete closure or open under high differential pressure.
- ✅ Assembly with verified torque: Incorrect alignment of the ISO 5211 coupling between valve and actuator generates premature wear of the actuator pinion or the valve stem square. At Cematic, assembly is performed with verification of the ISO 5211 flange screw torque and coupling alignment before installing the actuator.
- ✅ Complete functional testing: Before shipment, each assembly is tested with full open and close cycles, verification of valve tightness, adjustment and verification of limit switch signals (LS1 open, LS2 closed), and verification of operating speed with installed speed regulators.
- ✅ Technical documentation for the assembly: Assembly data sheet with valve torque, actuator torque, design supply pressure, limit switch signals, and electrical wiring diagram for the solenoid — everything the instrumentation team needs to integrate the assembly into the control system.
Valve Materials Available in the Actuated Range
- SS316 NPT Thread (½" to 2"): The best-selling combination — SS316 threaded ball valve with pneumatic or electric actuator for automation of utility, instrumentation, and process points in chemical, food, pharmaceutical, and manufacturing industries. View →

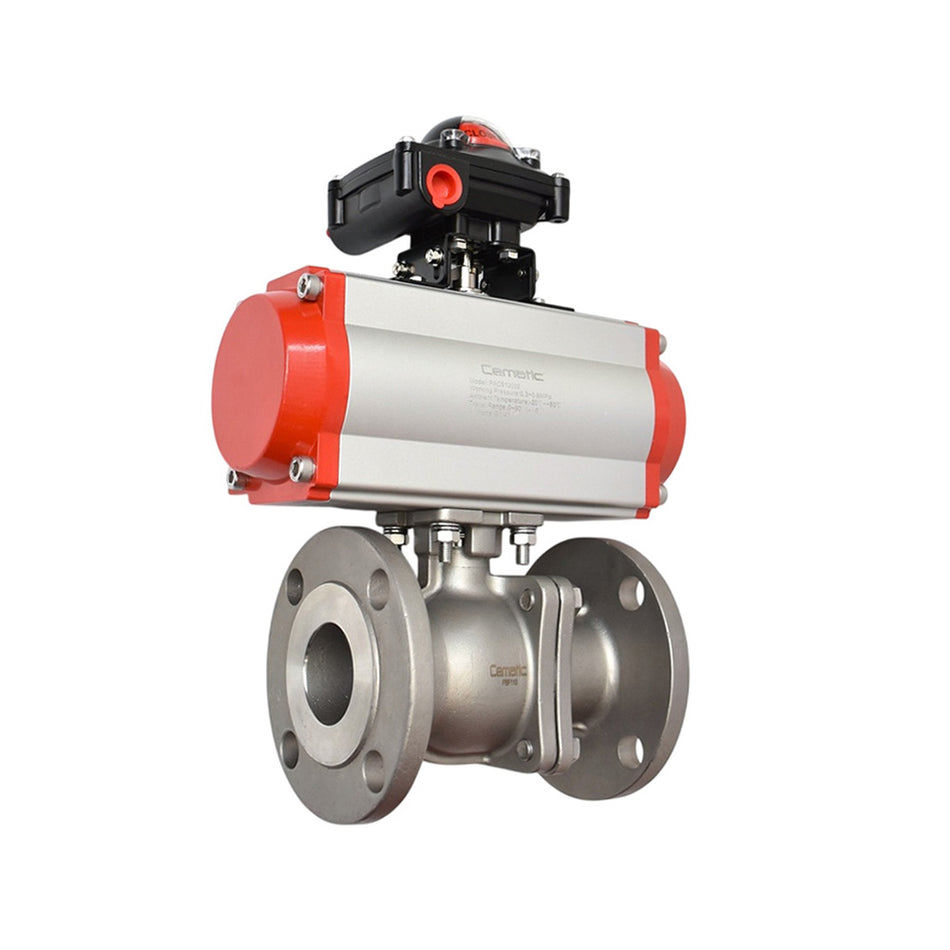

- SS316 Flanged ANSI 150/300 (DN25 to DN200): For larger diameter and pressure process lines where threading is not the suitable connection. The flanged SS316 ball with pneumatic actuator is the standard in the process industry for individual equipment isolation valves. View →
- WCB Flanged ANSI 150/300/600: For natural gas, LPG, hydrocarbons, and oil and gas installations. Single-acting pneumatic NC actuator with ATEX solenoid when the process requires fail-safe closed in classified areas. View →
- PVC and CPVC (½" to 2"): For water, irrigation, pools, and low-aggressiveness chemistry without metal. 24 VDC electric actuator for integration with irrigation controllers or solar panels. View →
- Corrosion-resistant PFA/PTFE (DN15 to DN100): For concentrated acids, HF, ClO₂, and strong oxidizers. Pneumatic actuator with SS316 housing or with epoxy coating resistant to acid vapors. View →
- Hygienic SS316L Clamp or Weldable: For food, beverage, and pharmaceutical industries with direct product contact. Single-acting pneumatic NC actuator for automated CIP sequences. View →
- 3-way SS316 (L or T port): For diverting between circuits, source selection, or fluid mixing. The quarter-turn actuator operates the 3-way ball with the same 90° travel as the 2-way. View →
Quick Selection Guide — Pneumatic vs. Electric Actuator for Ball Valves
| If your installation has… | Recommended Actuator |
|---|---|
| Compressed air network at the installation point | ✅ Pneumatic — higher torque, faster, fail-safe by spring |
| No air network — only electrical wiring available | ✅ Electric — the only viable option without a compressor |
| High cycle frequency (>30 cycles/hour) | ✅ Pneumatic — no thermal motor limitation |
| Mandatory fail-safe NC or NO | ✅ Single-acting pneumatic — mechanical spring without electronic dependence |
| ATEX Zone 1 classified area | ✅ Pneumatic + ATEX solenoid — more economical than full ATEX electric |
| Native 4–20 mA modulating control without positioner | ✅ Modulating electric — integrates analog control from the factory |
| Direct Modbus communication to SCADA | ✅ Electric with Modbus — no additional converters |
| 24 VDC power from battery or solar panel | ✅ 24 VDC electric — compatible with low voltage sources |
| High valve torque (DN100+ at high differential pressure) | ✅ Pneumatic — higher torque available in equivalent size |
| Hazardous reagent dosing system | ✅ Pneumatic NC — guaranteed spring-closed in case of any failure |
Main Industries and Applications
- Chemical and petrochemical industry: Automated reagent dosing in batch reactors, process line isolation from the control room, emergency shutdown ESD valves in installations with hazardous fluids. The pneumatic NC ball valve is standard in these services due to guaranteed hermetic closure in case of any system failure.
- Food and beverage industry: Filling valves in high-cadence fillers, equipment isolation for automated CIP sequences, ingredient flow control in batch formulation. The hygienic ball valve with pneumatic NC actuator is standard in these applications due to hygiene and total closure between batches.
- Pharmaceutical industry: Isolation of purified water and WFI lines, control of reagent addition in API synthesis, isolation valves in bioreactors. The hygienic SS316L clamp ball valve with single-acting pneumatic actuator is the standard component in these systems.
- Oil & Gas and petrochemical: Automated block valves in production facilities, ESD systems in gas pipelines, equipment isolation in refineries. The WCB flanged ANSI 300/600 ball valve with pneumatic NC actuator and ATEX solenoid is the standard configuration in these installations with classified areas.
- Potable water and treatment: Automated backwash sequences for filters, control of treatment reagent dosing, equipment isolation valves in WTTP and WWTP. The SS316 ball valve with Modbus electric actuator integrates with the operator's SCADA system.
- General manufacturing: Automated isolation of plant services (steam, air, water), control of fluid distribution in production lines, emergency shut-off valves in industrial gas systems.
- Agricultural irrigation and aquaculture: Automation of irrigation sectors with 24 VDC electric actuators powered by irrigation controllers or solar panels. The PVC ball valve with electric actuator is the most frequent configuration in these systems without pneumatic infrastructure.
Why Choose Cematic for Your Ball Valves with Actuator?
We cover the entire range of ball valve materials — SS316 threaded and flanged, WCB flanged, PVC, corrosion-resistant PFA, hygienic clamp, and 3-way — in all diameters demanded by the Mexican industry, with pneumatic and electric actuators in the most common voltages and fail-safe configurations. We assemble and test in our workshop with torque verification, ISO 5211 alignment, and complete functional testing. We size the actuator with the correct torque — especially critical in larger diameter ball valves where the required torque significantly exceeds that of equivalent butterfly valves. Stock in Mexico City for the highest turnover combinations. Technical quotation on the same business day with detailed specification. Shipments throughout the republic. Contact us via WhatsApp or at ventas@cematic.com.
