Valves for Oil and Gas — API, Fire Safe, and NACE Specifications for Each Stage of the Value Chain

The oil and gas sector in Mexico —exploration and production (E&P), pipeline transportation, terminal storage and distribution, refining, and petrochemicals— is the largest consumer of high-specification industrial valves in the country. Every control point in an Oil & Gas facility is regulated by international standards that define not only the valve's design but also its manufacturing process, accepted materials, required qualification tests, and accompanying documentation. At Cematic, we supply valves for oil and gas that comply with applicable API, ASME, NACE, and ATEX standards, with complete technical documentation for engineering, procurement, and quality control.

Standards Governing Valve Selection in Oil & Gas

Before selecting the type or material of a valve, project engineers must identify the applicable standards for the installation. In Mexican Oil & Gas, the most frequent references are:

• API 6D — Pipeline and Piping Valves: The fundamental standard for ball, gate, check, and plug valves in pipelines transporting oil, gas, and their derivatives. It defines requirements for design, materials, pressure testing, operation, and documentation. All valves for gas or oil pipelines must be API 6D. It is the most cited reference document in technical specifications for PEMEX and private E&P and transportation companies.
• API 608 — Metal Ball Valves: For floating ball valves in lower pressure oil and gas services (up to ANSI 150 and 300). It complements API 6D in production facilities and surface installations.
• API 600 — Steel Gate Valves: Design and manufacturing standard for steel gate valves in oil, gas, and other fluid services. It defines requirements for body, bonnet, wedge, stem, and accessories for ANSI 150 to 2500 pressures.
• API 598 — Valve Inspection and Testing: Specifies the pressure testing procedures and criteria (body, seat, stem seal) that every valve for Oil & Gas must pass before delivery. API 598 test certificates are required as delivery documentation in PEMEX projects.
• API 607 / BS 6755 — Fire Testing: Defines the fire test that validates a valve's Fire Safe design: exposure to direct flame for 30 minutes while maintaining system pressure, verifying that the valve does not become a fire accelerant after the destruction of its polymeric seals by heat.
• NACE MR0175 / ISO 15156 — Sulfide Stress Cracking (SSC): For installations with the presence of H₂S (sour gas), all metallic materials in contact with the fluid must be qualified according to NACE MR0175 to resist hydrogen sulfide embrittlement. Non-compliance with NACE can result in catastrophic brittle fracture of the valve body or stem in the presence of H₂S — one of the most dangerous failures in oil fields.
• ASME B16.34 — Valves — Flanged, Threaded and Welding End: The design standard that defines maximum working pressures and temperatures for each material and pressure class combination (ANSI 150 to 4500). All industrial valves certified for Oil & Gas must comply with ASME B16.34.
• ASME B16.5 — Pipe Flanges and Flanged Fittings: Defines flange dimensions for ANSI 150 to 2500 pressures — the standard connections for flanged valves in oil and gas.
• NRF-009-PEMEX and NRF-010-PEMEX: PEMEX Reference Standards for the purchase of gate valves (NRF-009) and ball valves (NRF-010) respectively. Mandatory documents for direct supplies to PEMEX and its subsidiaries, which add specific company requirements to the base API standards.

Types of Valves for Oil and Gas by Value Chain Stage

Exploration and Production (E&P) — Wellhead and Surface Facilities

In the oil field, valves are exposed to raw production fluid: a mixture of oil, gas, formation water, sand, H₂S, and CO₂, often at high bottom-hole pressures. H₂S conditions mandate NACE MR0175 qualification for all materials. The presence of sand and solids in the fluid requires designs with greater seat wear resistance.

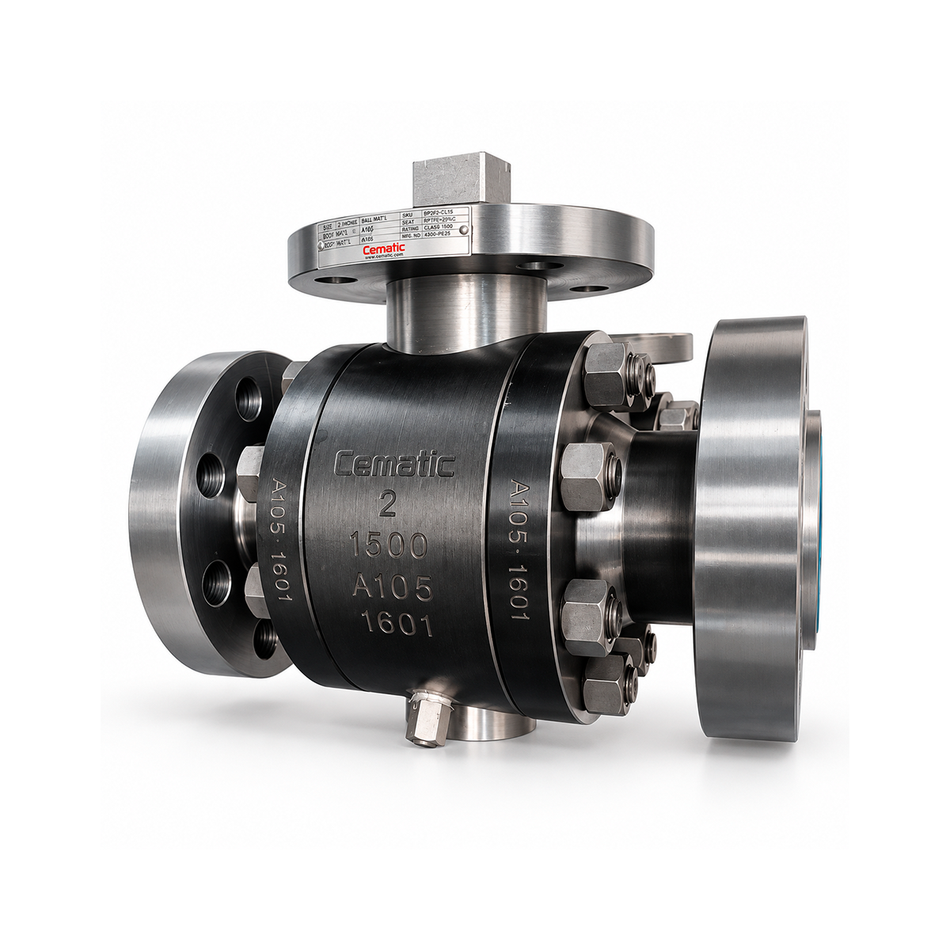

• API 6D Trunnion Ball Valve — WCB, LCC or Duplex SS: The standard isolation valve in wellheads, production manifolds, and separators. WCB material (ASTM A216) for non-corrosive service; LCC (ASTM A352) for cryogenic or low-temperature service; Duplex 2205 or Super Duplex steel for service with H₂S and high chloride concentration. NACE trim is mandatory when H₂S applies. DBB (Double Block and Bleed) and Fire Safe design. View trunnion collection →
• API 600 Gate Valve — WCB with rising stem: For isolation of surface facility sections, water injection lines, and gas lift. 13Cr trim for corrosion resistance in the presence of CO₂. OS&Y (Outside Screw & Yoke) design with rising stem for visual verification of open status.
• Flow control valve (choke valve): For regulating production flow at the wellhead. High differential pressure design with interchangeable tungsten carbide trim to resist sand erosion. Available under project specification.

Transportation — Gas and Oil Pipelines

Valves in pipeline transportation systems operate continuously for years without maintenance intervention. Long-term reliability and remote operation capability from control centers are the priority selection criteria. API 6D is mandatory.

• API 6D Trunnion Ball Valve for buried service: For underground installation in gas and oil pipelines. Design with extended stem for above-ground operation, injectable seat lubrication system without excavation, external anti-corrosion coating (fusion-bonded epoxy or polyethylene), and sacrificial anodes where applicable. Operated with pneumatic or electric actuator with SCADA monitoring system.
• Large diameter trunnion ball valve (DN300–DN1200): For main natural gas and crude oil transportation lines. Extremely high torque — requires large electro-hydraulic or pneumatic actuators with gear reducers. Installation at block valve stations at regular intervals according to pipeline safety standards (NOM-007-ASEA or equivalent).
• API 6D Dual Plate Check Valve: In pumping and compression stations to prevent backflow in case of equipment shutdown. The soft closure of the dual plate is critical in large diameter lines where water hammer can be catastrophic.

Terminal Storage and Distribution

Storage tanks for crude oil, gasoline, diesel, LPG, and aviation fuels require valves at bottom, top, and transfer line connections that comply with API standards for storage facilities.

• API 600 Tank Bottom Gate Valve: For isolation of the bottom outlet of storage tanks. Rising stem design for status verification. Option with pneumatic actuator for remote opening from the terminal control room.
• Large Diameter Flanged ANSI Ball Valve: For tank filling and emptying lines and manifold connections in storage terminals. Pneumatic or electro-hydraulic actuator with position indication and SCADA communication.
• High-performance butterfly valve: For internal circulation services in terminals where differential pressure is moderate and flow rate is high. Lower cost than ball valves in large diameters for this specific service.

Refining and Petrochemicals

Refineries and petrochemical plants combine the challenges of aggressive chemistry with the extreme pressures and temperatures of hydrocarbon processing. This environment requires the most specialized valve selection in the entire industry.

• High-temperature gate valve (Cr-Mo): For high-pressure, high-temperature steam services in distillation and catalytic reforming units. Chrome-molybdenum steel body (WC9, C12A) for service up to 540 °C. Stellite trim for erosion resistance at high temperatures.
• High-pressure and temperature trunnion ball valve: For high-pressure and temperature hydrocarbon services in process units. ANSI classes 600 to 1500 with metal seat and graphite packing for temperatures above 250 °C.

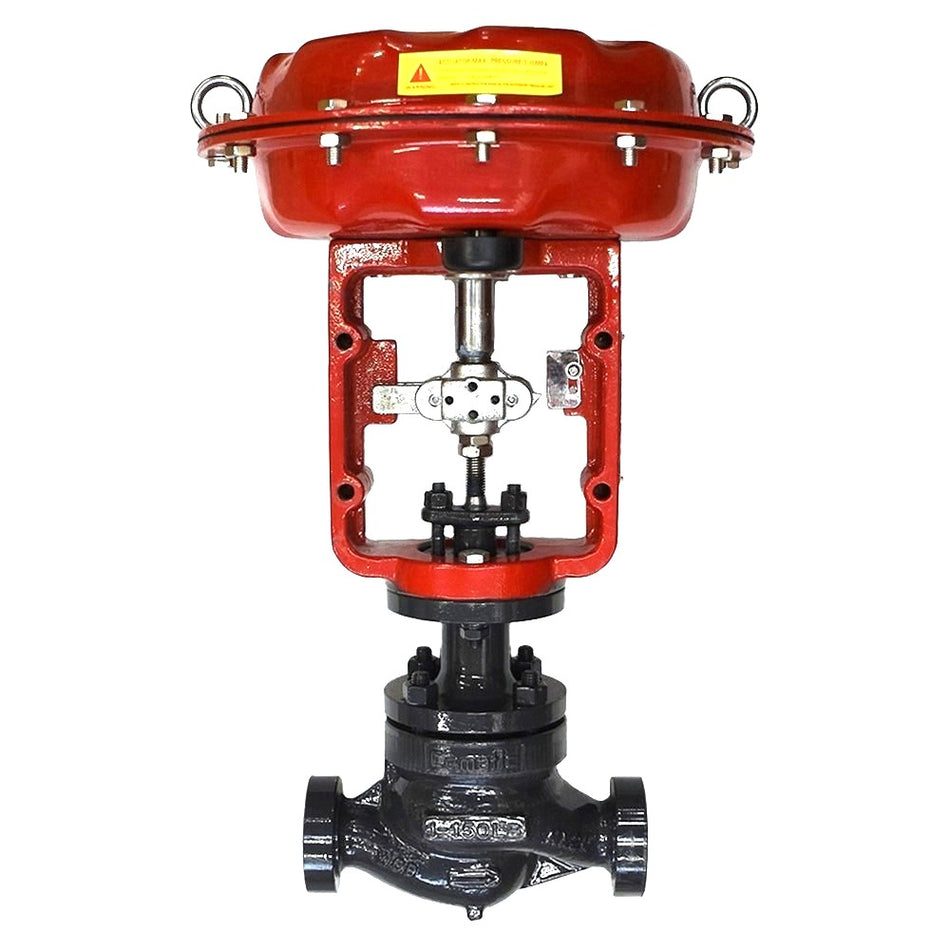

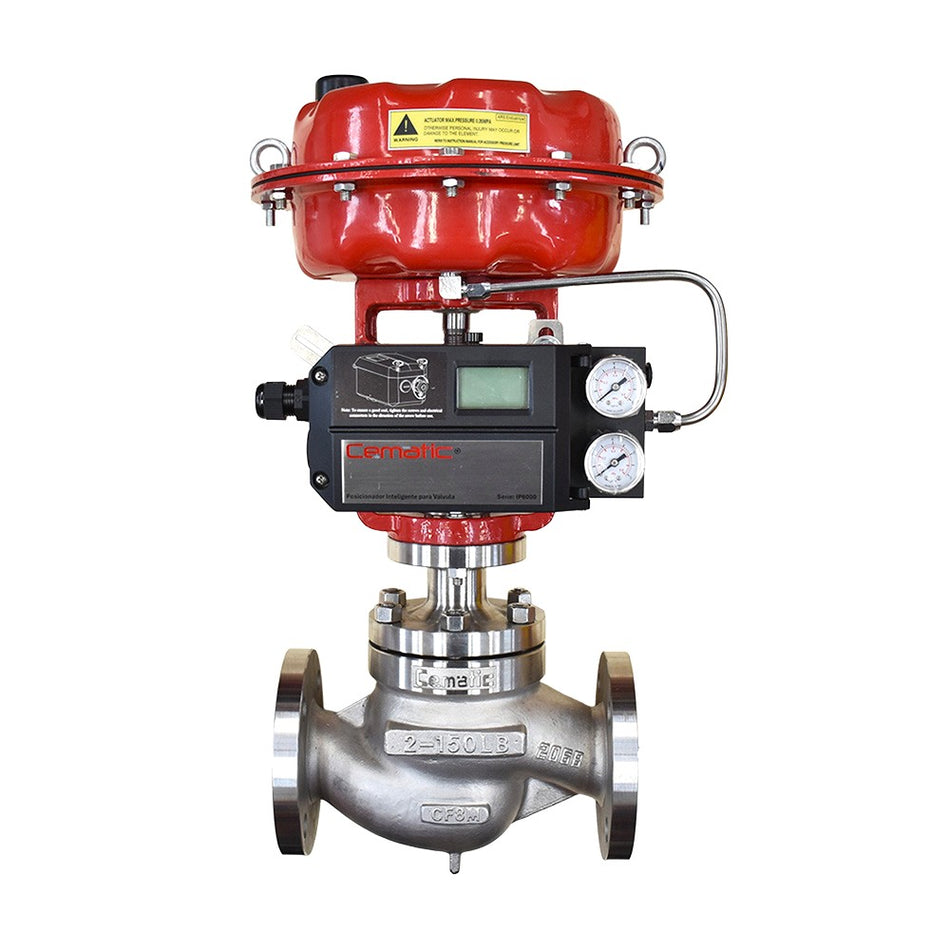

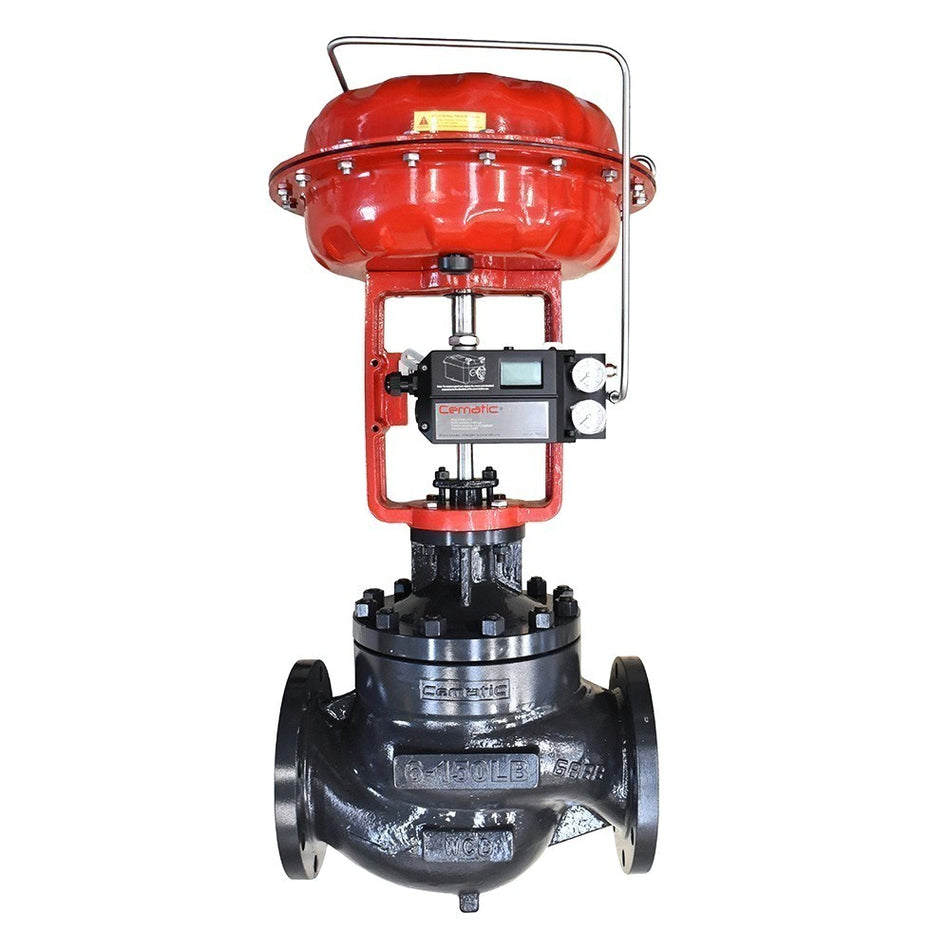

• Globe control valve with anti-corrosion trim: For temperature, pressure, and flow control loops in distillation towers, reactors, and heat exchangers. Stellite trim for service with H₂S and erosive fluids.

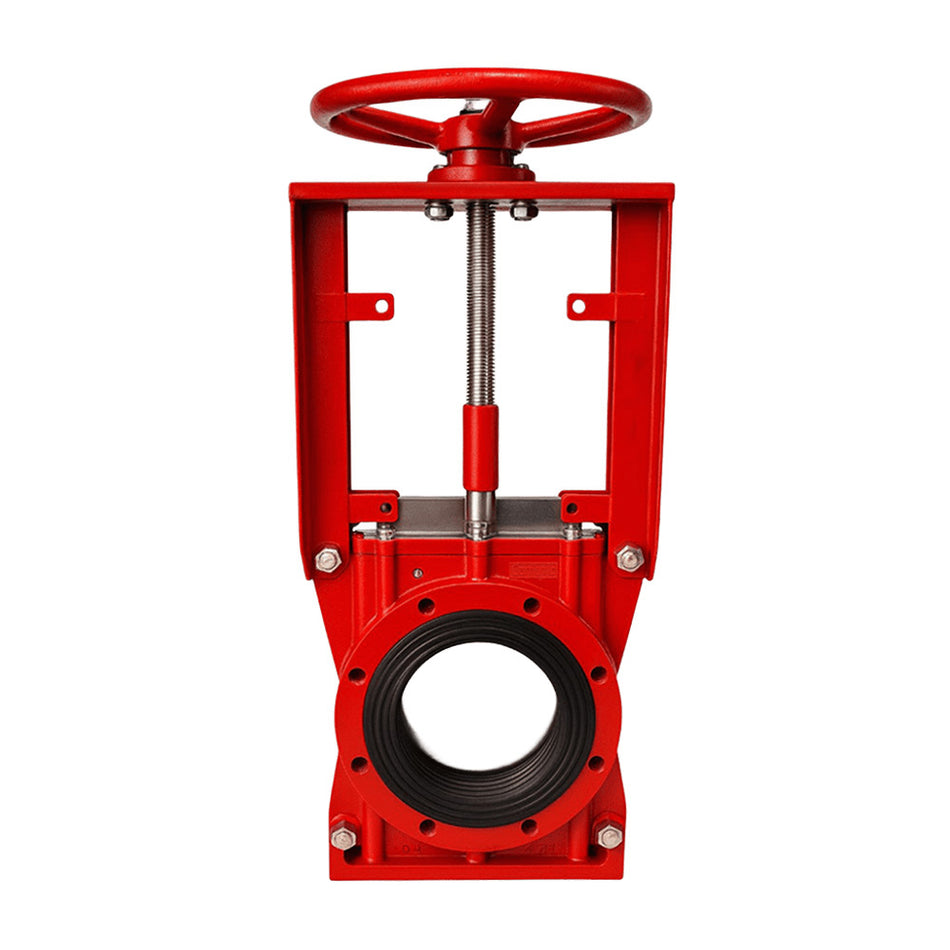

• Knife gate valve for slurry: For handling spent catalyst slurry, tank bottom sludge, and effluents with solids in catalytic cracking (FCC) and coking units. View knife gate collection →

Mandatory Technical Characteristics for Oil & Gas Valves

Fire Safe

Fire Safe design is the most important safety feature in valves for hydrocarbon installations. It consists of secondary metal seals (expanded graphite or soft metals) that activate when primary PTFE, EPDM, or other polymer seals are destroyed by the heat of a fire. An API 607 qualified Fire Safe valve ensures that, even during and after an active fire, the valve maintains its isolation function and does not become a valve that fuels the fire with more hydrocarbons.

Double Block and Bleed (DBB)

The DBB system consists of two independent seats that seal the fluid on both sides of the ball cavity, plus a bleed port in the central cavity. This allows:

• Complete isolation of a pipeline section with double seal assurance (if one seat fails, the second maintains isolation)
• Bleeding of trapped pressure in the central cavity to verify that both seats are sealing correctly before intervening in the line
• Injecting emergency sealant into the cavity if a leak is detected during operation, without needing to remove the valve from the line

DBB is mandatory at intervention points for maintenance, temporary blind flanges, and any point where the operator must work downstream of the valve under certified isolation conditions.

SSC Resistance — NACE MR0175 Qualification

H₂S (hydrogen sulfide) present in sour gas and crude oil (sour service) causes a corrosion mechanism called Sulfide Stress Cracking (SSC): hydrogen atoms generated by the reaction of H₂S with steel penetrate the metallic crystal lattice and cause sudden brittle fracture, without visible prior deformation. NACE MR0175 defines which steel grades, hardness ranges, and heat treatments are acceptable for each level of sour service. Non-compliance does not result in visible gradual deterioration — it results in sudden, often catastrophic, rupture.

Seat Tightness — Leakage Class

Two seat tightness testing standards are applied in Oil & Gas:

• API 598: Defines the maximum acceptable leakage in seat testing according to valve type and diameter. It is the minimum standard for industrial valves in oil and gas.
• API 6D Annex B (Zero Leakage / Tight Shutoff): For valves where seat leakage is unacceptable — critical isolation, ESD, and DBB valves. More rigorous test than standard API 598.

Automation and Control in Oil & Gas Facilities

ESD (Emergency Shutdown) Systems

Emergency shutdown systems are the last safety barrier before a catastrophic loss of containment. ESD valves are actuated by the SIS (Safety Instrumented System) in response to gas detector signals, high pressure, high temperature, or manual emergency shutdown. Specific requirements:

• Single-acting normally closed (fail-close) actuator with guaranteed total closing time (typically 10–30 seconds for large diameter valves)
• High-reliability ATEX solenoid with continuous position monitoring
• Periodic Partial Stroke Test (PST) to verify functionality without interrupting the process — required by IEC 61511 standards for SIL 2 and SIL 3 systems
• Digital positioner with PST function or dedicated testing system
• SIL documentation: PFD (Probability of Failure on Demand), SIL certificate from actuator manufacturer

SCADA Automation in Pipelines

Valves in pipeline block valve stations operate under SCADA control with remote communication. The electric actuator with Modbus TCP/IP or RTU, or the pneumatic actuator with HART positioner, integrate with the stations' RTUs (Remote Terminal Units) for monitoring and control from the gas dispatch center. The system must ensure valve opening or closing upon remote command and report its actual position in real time, even under conditions of partial communication failure (documented local failure mode).

ATEX Classified Zones in Oil Facilities

Virtually every open-field or offshore Oil & Gas facility has areas classified as Zone 1 or Zone 2. The selection of electric actuators for these zones requires a minimum ATEX II 2G certification, with IECEx documentation for installations with export requirements or contracts with international majors. The pneumatic actuator with ATEX solenoid remains the most common and economical solution for Zone 1 in production facilities.

Technical Delivery Documentation — What Cematic Can Supply

Oil & Gas projects in Mexico —especially those of PEMEX and its contractors— require specific documentation with each valve. Cematic can supply, depending on the selected product and manufacturer:

• ✅ Mill Test Report (MTR) material certificates with heat traceability
• ✅ API 598 pressure test certificate (body hydrostatic, seat pneumatic, high-pressure seat test)
• ✅ NACE MR0175 material qualification certificate (when sour service applies)
• ✅ API 607 fire test report for the design (type certification, not individual)
• ✅ API 6D or API 600 conformity declaration
• ✅ ATEX certificate for the actuator and solenoid (when classified zone applies)
• ✅ Instrument Data Sheet according to ISA or project format
• ✅ Installation, Operation, and Maintenance (IOM) Manual
• ✅ Dimensional and assembly drawings
• ✅ Parts list with part numbers for spares

Oil & Gas Sectors We Serve

• Onshore and offshore exploration and production: PEMEX E&P, private companies with CNH assignments and contracts (Eni, Talos, Pan American Energy, Harbour Energy)
• Transportation and storage: CENAGAS, PEMEX Logística, private gas pipeline companies (IEnova, TC Energy, FERMACA, Infraestructura Energética Nova)
• Refining: PEMEX Refineries (Tula, Salamanca, Cadereyta, Minatitlán, Salina Cruz, Dos Bocas)
• Petrochemicals: PEMEX petrochemical complexes and private operators
• LPG and natural gas distribution: Zonal natural gas distributors and LPG distribution plants
• EPC Contractors: ICA Fluor, Grupo TMM, Techint, Worley, Saipem, and specialized national Oil & Gas contractors

Why Choose Cematic for Your Oil & Gas Valves?

We understand that in Oil & Gas, an incorrect specification is not just a budget problem — it can be a safety issue. Our technical team advises on identifying applicable standards (API 6D, API 600, NACE MR0175), the correct material for the specific service (sweet vs. sour service, cryogenic vs. high temperature), the appropriate pressure class, and project documentation requirements. We issue formal technical quotations with detailed specifications, data sheets, and a list of included delivery documents. We serve PEMEX projects, EPC contractors, direct engineering for private companies, and plant maintenance purchases. Contact: WhatsApp or ventas@cematic.com — technical response on the same business day.
