A check valve —also known as a non-return valve or check valve— is the simplest and most fundamental safety component in any piping system: it allows fluid to pass in the design direction and automatically blocks it as soon as it detects a reduction in flow or a pressure reversal. It requires no actuator, electrical signal, or operator intervention — it operates exclusively by the pressure differential between its two sides. This simplicity makes it one of the most reliable and low-maintenance valves available in the industrial market.

At Cematic, we supply the complete range of check valves in Mexico: swing type, wafer disc, dual plate, spring (piston/spring), and foot valve, in 316 stainless steel, cast iron, carbon steel, and PVC, with NPT threaded, ANSI flanged, and wafer-type connections between flanges.

Why is a check valve critical in your system?

The absence or malfunction of a check valve can lead to serious and costly consequences:

• Water Hammer: When a pump suddenly stops, the moving fluid column violently reverses. Without a quick-closing check valve, the resulting pressure wave can fracture pipes, damage flanges, and destroy downstream equipment.
• Damage to pumps and compressors: Reverse flow causes the pump impeller to spin in the opposite direction, generating extreme vibrations that damage bearings, mechanical seals, and shafts. A single uncontrolled flow reversal can render a process pump useless.
• Cross-contamination: In systems with multiple lines or tanks at different pressures, reverse flow can contaminate one fluid with another, compromising product quality or process safety.
• Line draining: In vertical or inclined pipes, gravity drains the fluid downstream when the pump stops, losing prime and requiring costly reprocessing before restarting.
• Cavitation: Partial flow reversal generates low-pressure zones that vaporize the fluid and produce cavitation, eroding impellers and pump casings.

Types of check valves available at Cematic

Swing Check Valve

The most classic and widely used design. A circular disc articulated on a hinge pin located at the top of the body swings freely: flow in the correct direction opens it; when the flow reverses or stops, the disc falls by gravity and seals the seat. Available in ANSI 150/300 flanged body or NPT threaded, in cast iron, carbon steel (WCB), and 316 stainless steel.

• Advantages: Low pressure drop in the open position, simple construction, low maintenance cost, suitable for large diameters.
• Limitations: Slower closing than other types; does not operate correctly in vertical pipes with downward flow. Can generate moderate water hammer if flow stops abruptly.
• Typical applications: Centrifugal pump discharge in horizontal lines, potable water and treatment systems, general process lines.

Wafer Check Valve (Disc Type)

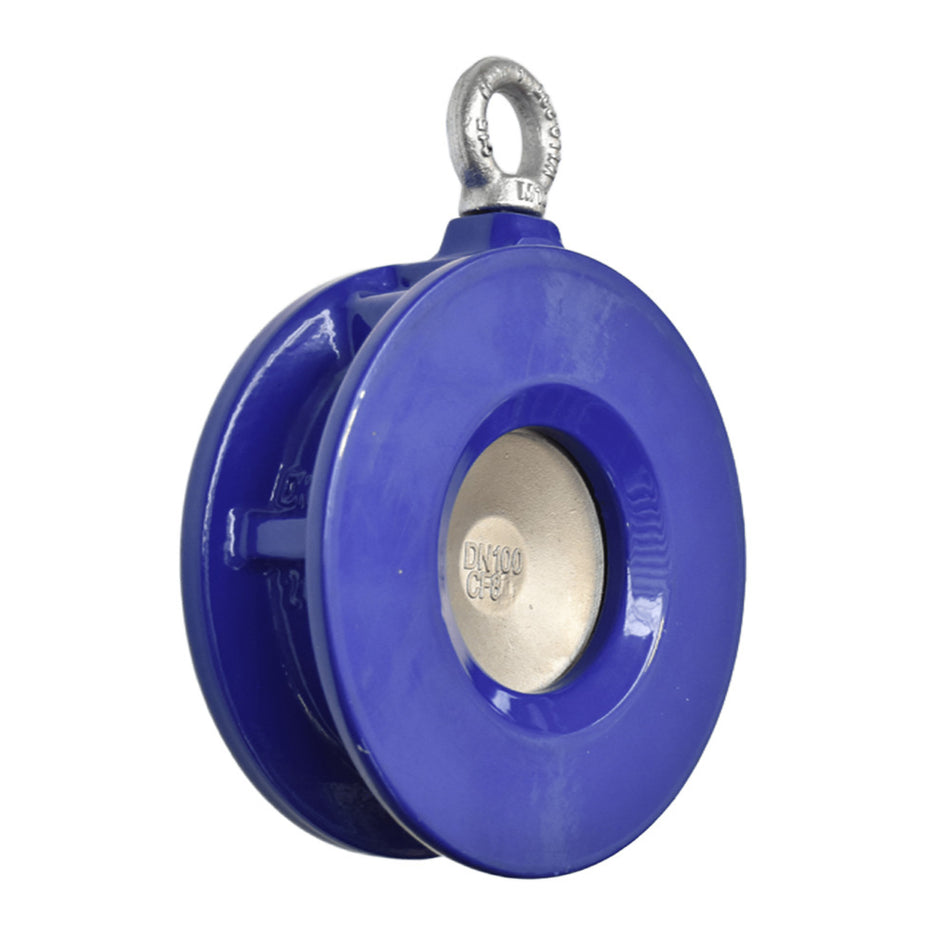

Compact and thin body that installs directly between flanges without the need for its own connection ends. The circular or semi-circular disc rotates on a central shaft or moves axially assisted by a spring. Its main advantage is space and weight saving compared to an equivalent swing valve: it occupies only ¼ of the face-to-face length and weighs up to 80% less.

• Advantages: Compact design, economical, easy installation between existing flanges, available from ½" up to 24" and larger.
• Typical applications: Installations with limited space, HVAC systems, pumping lines in water treatment plants, chemical and petrochemical industry.

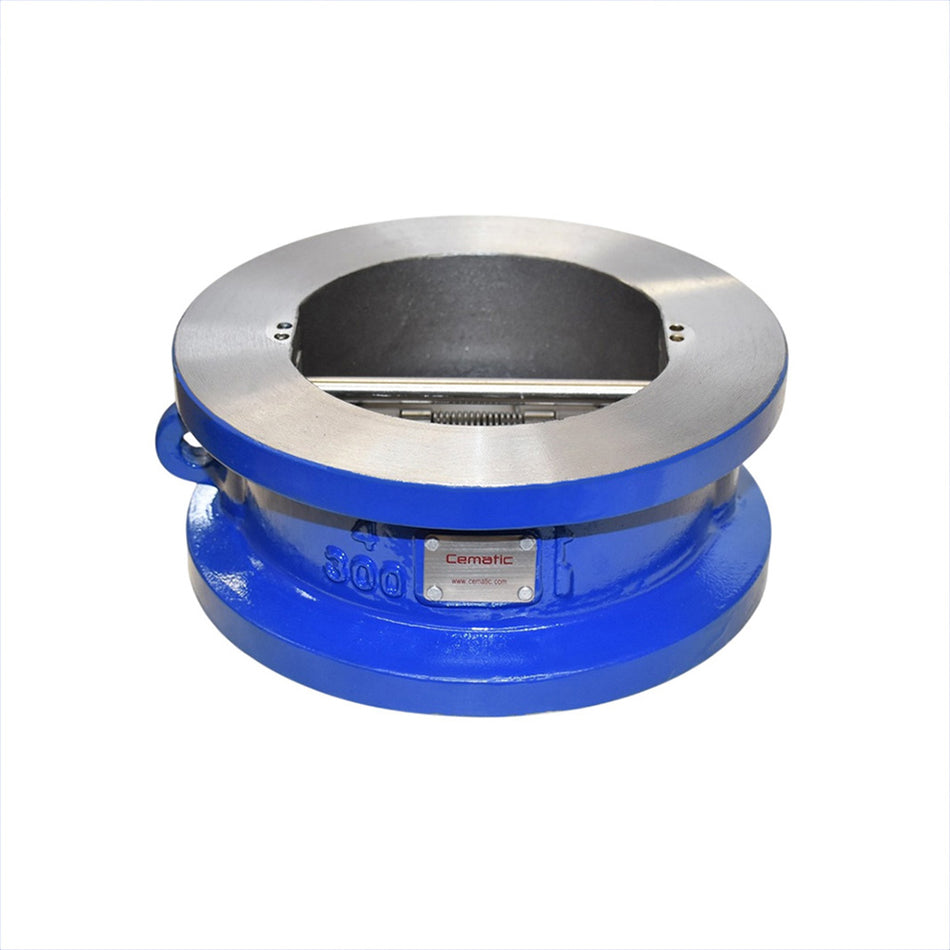

Dual Plate Check Valve

Advanced wafer-type variant that uses two half plates articulated on a central pin with torsion springs. When the flow decreases, the plates begin to close before the flow completely reverses, practically eliminating water hammer. It is the technically superior solution for systems where closing speed and water hammer protection are critical.

• Advantages: Smooth and silent closing without water hammer, ultra-compact structure (only 25% of the weight of an equivalent swing valve), valid in horizontal and vertical pipes, low minimum opening pressure.
• Typical applications: High-power pump discharge, large diameters (DN80 to DN600+), power generation plants, oil and gas, large-scale HVAC systems, mining and municipal wastewater treatment.

Spring Check Valve (Piston / Spring Type)

The obturator is a piston or disc pressed against the seat by a calibrated spring. The flow must overcome the spring force to open the valve; when the flow stops, the spring closes instantly without relying on gravity or disc inertia. This makes it suitable for any installation position: horizontal, vertical upward or downward, and even inverted.

• Advantages: Instant and silent closing, works in any pipe orientation, tight seal even at low differential pressures, compact design.
• Limitations: Higher pressure drop than the swing type in the open position, due to spring resistance.
• Typical applications: Vertical piping, instrumentation and small diameter lines, chemical dosing systems, industrial gas and compressed air lines, applications where installation orientation cannot be guaranteed.

Foot Valve

Designed to be installed at the inlet of suction lines submerged in wells or tanks. It keeps the suction pipe primed when the pump is stopped, preventing fluid from returning to the tank and allowing immediate pump startup without the need for manual priming.

• Typical applications: Water wells, cisterns, agricultural and industrial pumping systems, water treatment plants.

Materials available by fluid type

• Cast iron / Ductile iron: For water, neutral fluids, and general non-corrosive services at moderate pressures. The most economical option for large diameters.
• Carbon steel (WCB): For water, steam, oil, and hydrocarbon services. Greater mechanical strength than cast iron.
• 304 / 316 Stainless steel: For corrosive fluids, potable water, food, chemical, pharmaceutical industries, and any application where hygiene or corrosion resistance is a requirement.
• PVC: For low-pressure water systems, dilute acids, and moderate alkalis where weight and cost are decisive factors.
• Bronze: For water installations, low-pressure steam, and marine services where red brass offers natural corrosion resistance.

Selection criteria — What type of check valve do you need?

Use this quick guide to orient your selection:

• Horizontal line with large diameter and low budget? → Flanged Swing
• Limited space between existing flanges? → Wafer Disc
• High pump power and risk of water hammer? → Dual Plate
• Vertical piping or installation in any position? → Spring Check
• Submerged suction line? → Foot Valve

Not sure which applies to your process? Contact us — our technical team performs the selection free of charge with your system data.

Main industries and applications

• Pumping and water supply systems: Protection of centrifugal pumps in potable water treatment plants, constant pressure systems, and municipal distribution networks.
• Wastewater treatment: Prevention of cross-contamination between lines of different loads and protection of equipment in pumping stations.

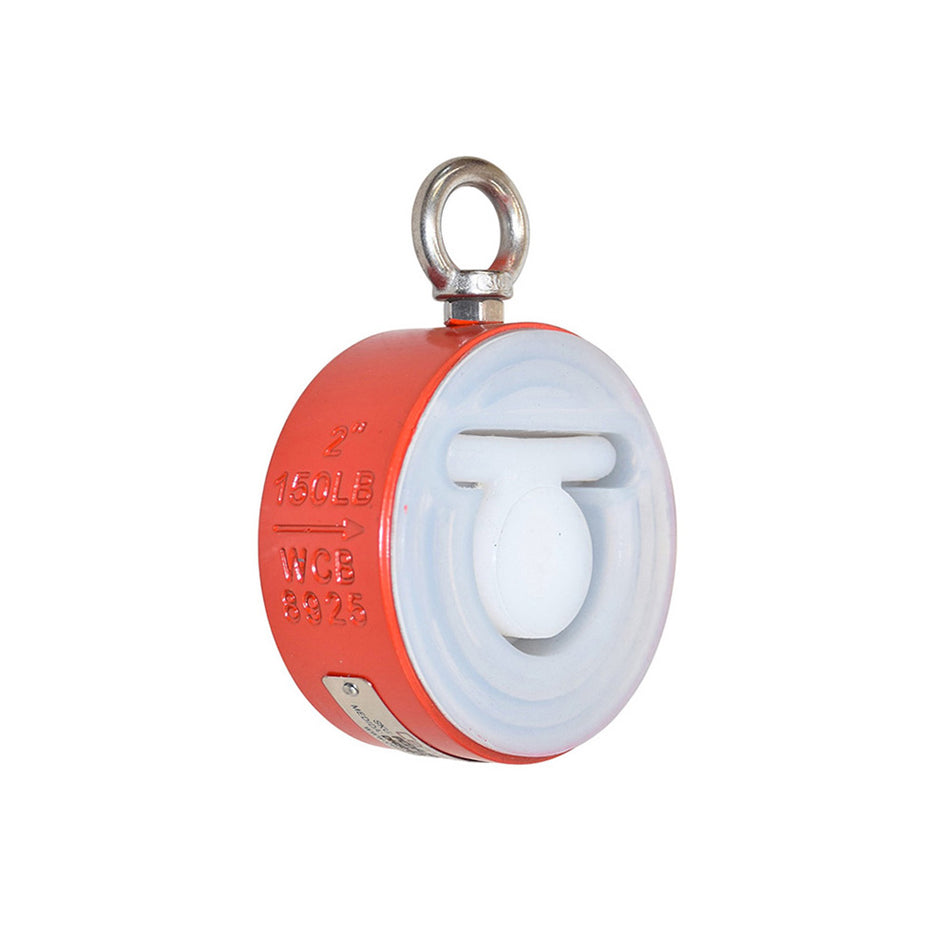

• Chemical and petrochemical industry: 316 stainless steel or PFA-lined versions for acid, alkali, and solvent lines where reverse flow would compromise process safety.
• Oil and gas: Dual plate check valves in large diameters for gas pipelines, oil pipelines, and compression stations, where water hammer can be catastrophic.
• HVAC and building services: Flow direction control in chilled water, hot water, and condensate circuits in centralized systems.
• Food and pharmaceutical industry: Sanitary versions in 316L stainless steel with clamps to prevent cross-contamination between product lines.
• Power generation: Dual plate check valves in steam and boiler feedwater lines in thermoelectric plants.
• Compressed air and industrial gases: Spring-loaded valves for nitrogen, CO₂, compressed air, and other gas lines where back pressure does not allow the use of gravitational types.

Why choose Cematic for your check valves?

We have available stock in Mexico City for the most common types and materials. We advise on the selection of the correct type according to the diameter, pressure, pipe orientation, and fluid of your system. We issue a detailed technical quotation the same business day. Shipping throughout the Mexican Republic. Contact us via WhatsApp or at ventas@cematic.com.
