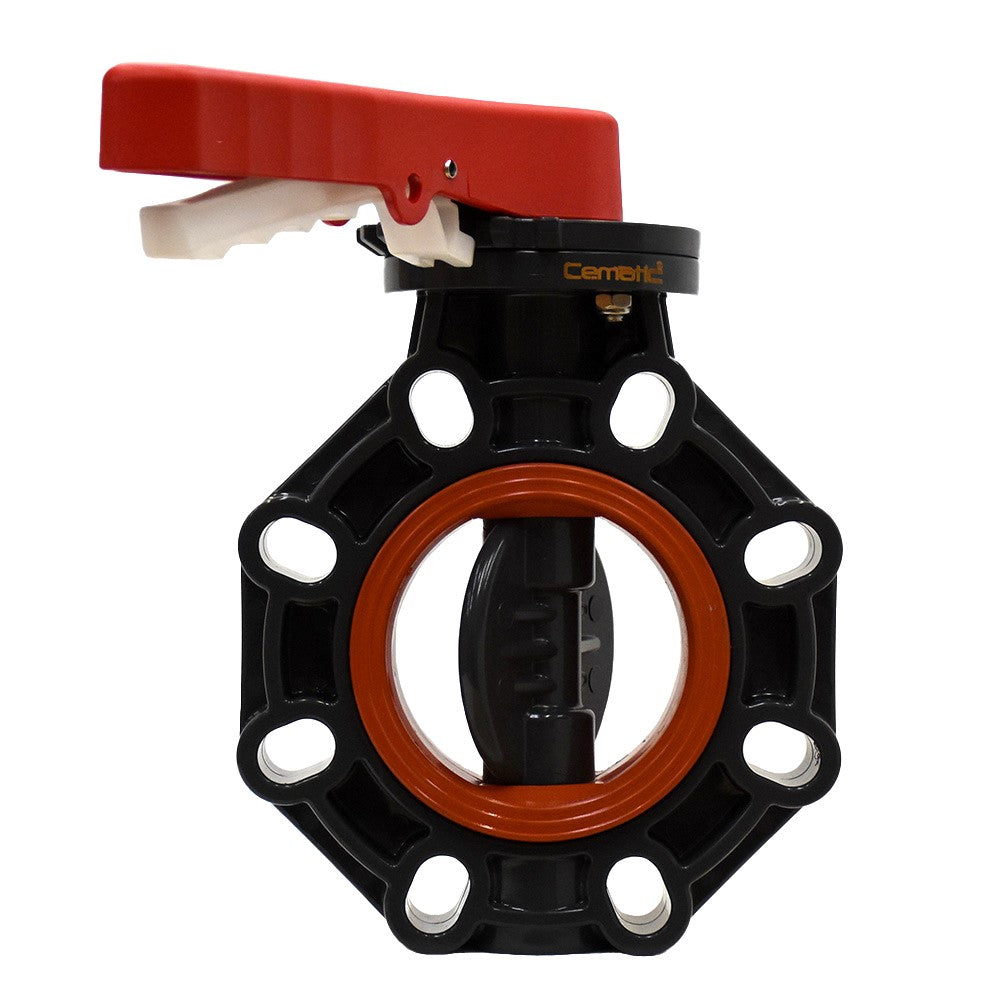

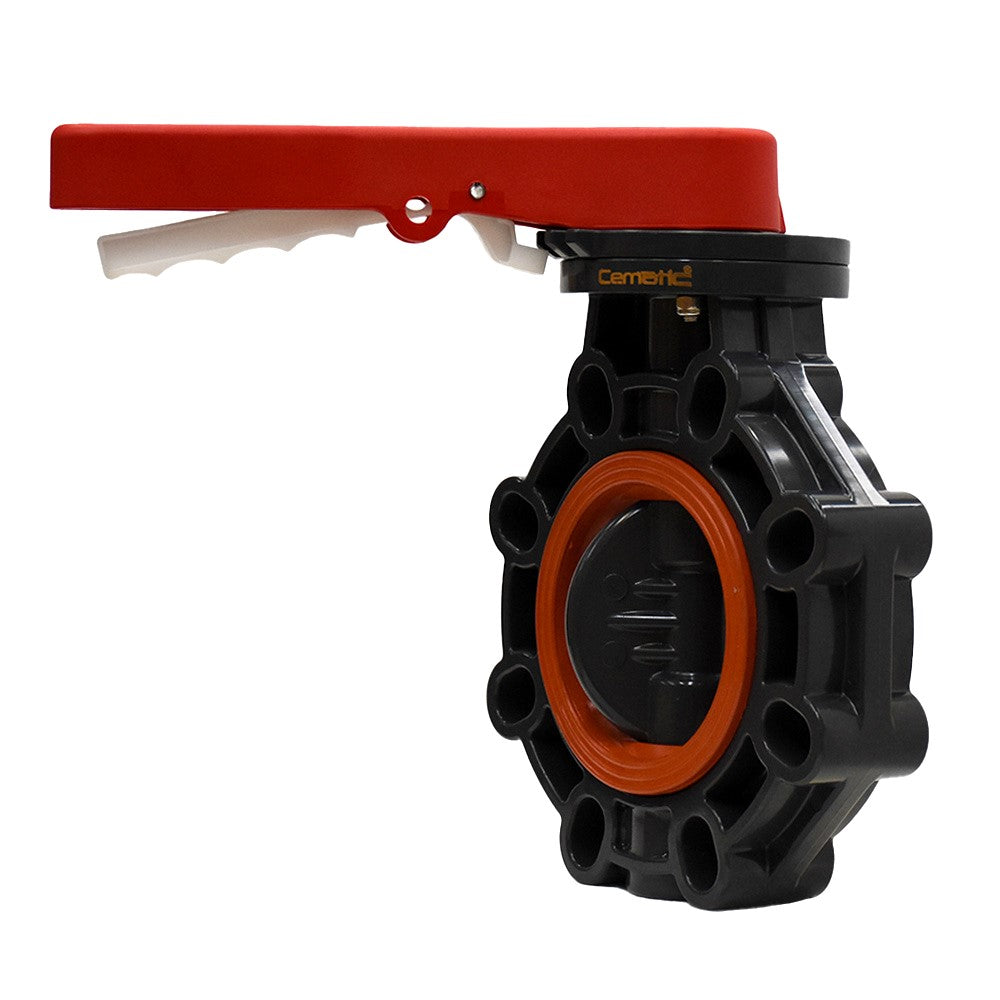

PVC Butterfly Valve with Handle
The PVC butterfly valve with handle is the manual solution for controlling flow in industrial pipelines. Its body and disc are made of high-quality UPVC, making it lightweight and corrosion-resistant. Furthermore, it is easily installed between Class 150 flanges without welding or threading. For this reason, it is a practical option for new and replacement installations.
Its ergonomic handle allows for direct opening, closing, or flow regulation. It can also be locked in various positions, giving the operator precise control. Consequently, no additional tools are needed for its operation. Likewise, its compact design facilitates access in confined spaces.
Choose the Seat According to Your Application
The seat defines the chemical compatibility of the valve. For this reason, choosing it correctly from the start is key to good performance. Below, we explain the two available options.

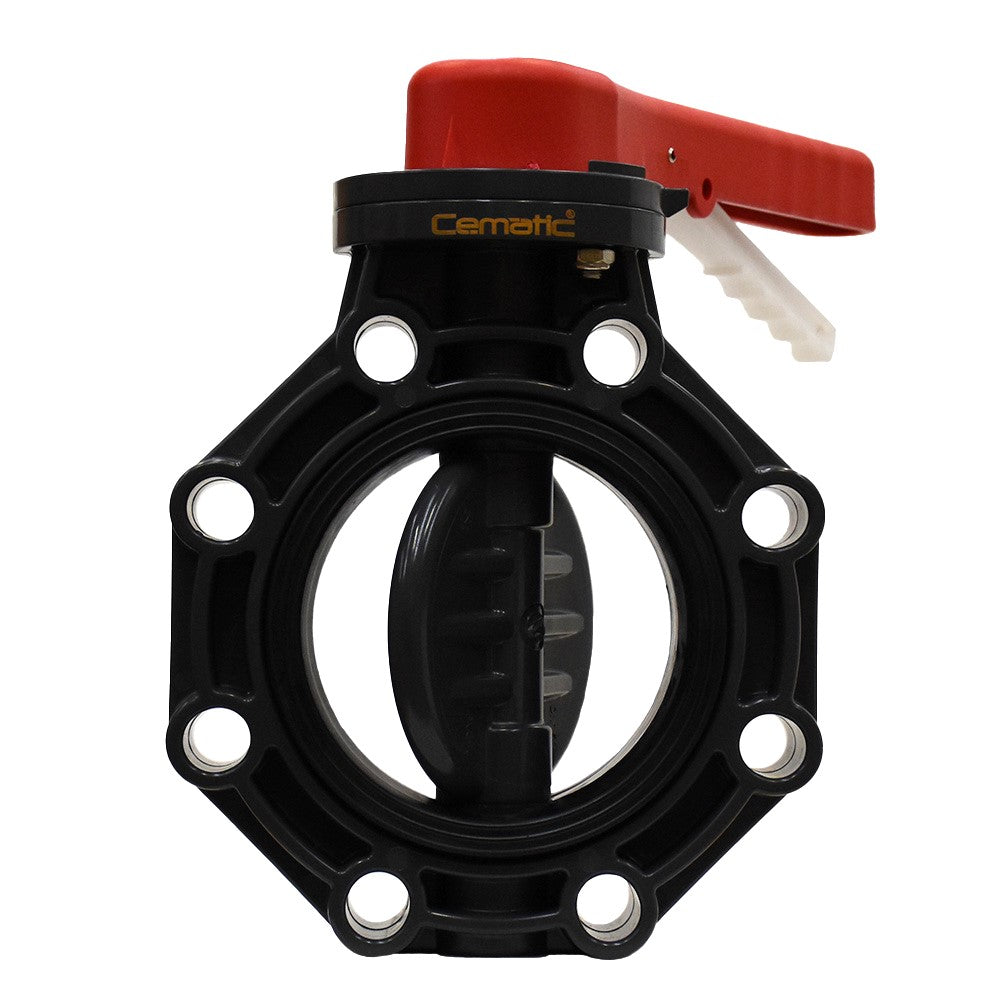

EPDM Seat The EPDM seat resists heat and mild chemicals. It is ideal for water, air, and low-pressure steam. It also works well in irrigation and HVAC systems.
Viton Seat The Viton seat withstands acids, solvents, and oils. Therefore, it is the best option for aggressive fluids in the chemical industry.
Why choose this PVC Butterfly Valve with Handle?
- Installs directly between flanges without adaptations
- The handle locks in multiple positions for greater control
- It is lighter and more economical than metallic options
Specifications
- Operation: Manual with ergonomic handle
- Body and Disc: UPVC
- Seats: EPDM / Viton
- Flange Class: ANSI Class 150
- Maximum pressure: 150 psi
- Working temperature: 0 °C to 50 °C
- Available sizes: 2", 3", 4" and 6"
Main applications
This valve is used in various industries. Below are the most common cases:
Chemical industry: Controls diluted acids and process solutions. Since its body is made of PVC, it does not corrode with these fluids.
Water treatment: Regulates flow in municipal and industrial plants. In addition, it handles both drinking water and wastewater.
Irrigation systems: Efficiently distributes water in the field. Likewise, it reduces maintenance compared to metal valves.
HVAC and ventilation: Opens and closes air circuits with good sealing. Therefore, it is common in buildings and industrial plants.
General processes: Where an anticorrosive, lightweight, and easy-to-operate manual valve is needed.
