Single-Acting Piston Pneumatic Actuator | High Power | 100–160 mm | For Ball and Butterfly Valves

In stock
SKU: PACSP100
Regular price $1,177.00 USD
Extent

High-Power Single-Acting Pneumatic Piston Actuator — Cast Crank Arm for Higher Torque, 90°, Diameters 100 to 160 mm

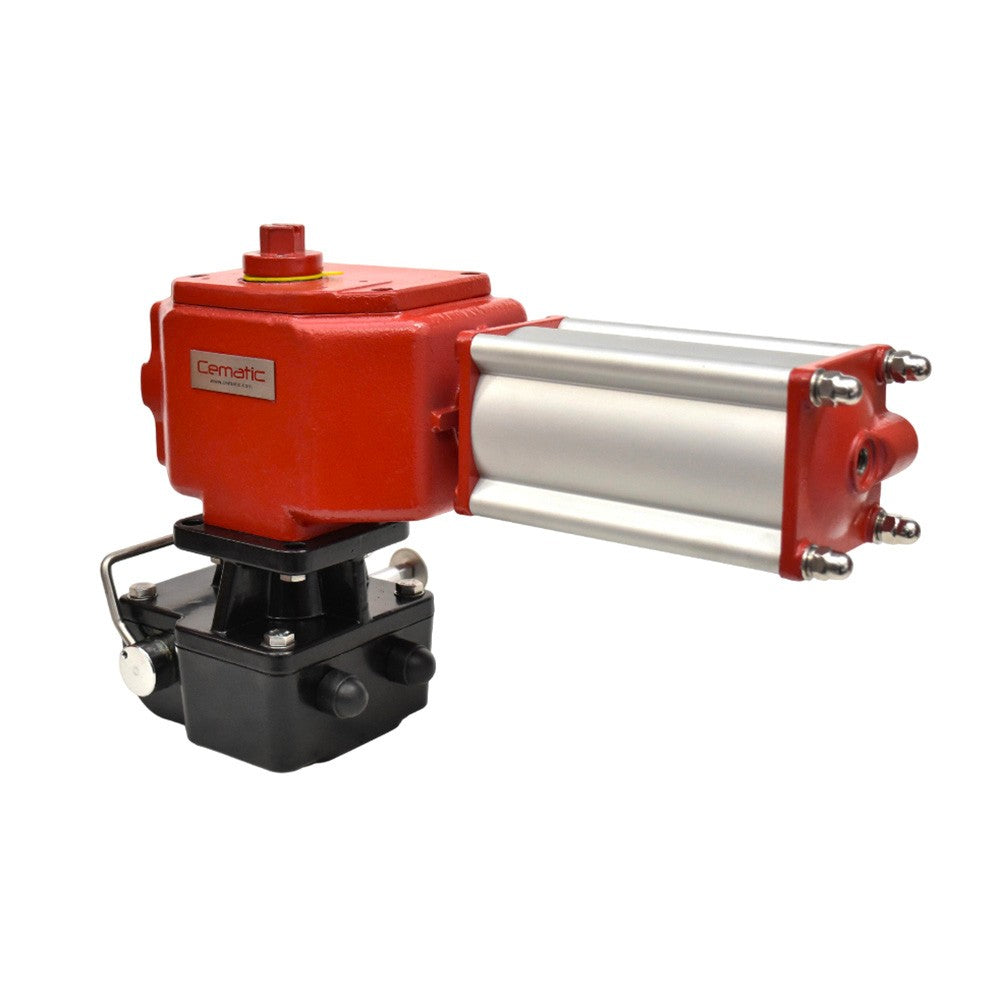

Cematic's pneumatic piston actuator converts the linear motion of the piston into precise 90° rotation using an integral cast crank arm. It is the highest torque solution in the pneumatic actuator catalog for quarter-turn valves.

Unlike conventional rack-and-pinion actuators, the piston-and-crank mechanism generates greater torque for the same cylinder diameter, as the crank geometry multiplies the piston's effort at the point of highest demand. Available in diameters of 100, 125, and 160 mm, it is the correct choice for large-diameter ball, butterfly, and segmented ball valves.

Therefore, it covers cases where the required torque exceeds the capacity of standard compact actuators. The aluminum body with an anti-abrasive treatment also ensures durability in industrial environments with moisture, dust, and vibration.

Piston mechanism with crank arm — why it generates higher torque than rack-and-pinion

The piston mechanism with a crank arm is an engineering solution different from standard rack-and-pinion, as the principle of motion conversion is different and has direct implications for the available torque:

  • Large-diameter linear piston — since it generates greater force than the rack-and-pinion piston: The piston force is proportional to its area and the air pressure. Therefore, a larger diameter generates greater torque at the same supply pressure. With these diameters, the available force is significantly greater than that of the pistons in standard rack-and-pinion actuators. Therefore, this actuator is the correct choice when compact models do not achieve the required torque.
  • Integral cast crank arm — since it withstands impact stresses in every cycle: The crank converts the linear thrust of the piston into torque. Its geometry multiplies the effort at the highest demand point of the opening cycle. Its integral cast construction also gives it high resistance to the repetitive impacts of each opening and closing cycle without material fatigue.
  • Stroke adjustment of ±10° using stop screws — to adapt the opening and closing position, as each installation may have different tolerances: Two lateral adjustment screws allow the angular stroke to be regulated within a range of ±10°. Its adjustment is also quick and requires no special tools. This also allows for compensating installation tolerances or adjusting the exact opening and closing position without modifying the valve. The adjustment is equally quick and simple without special tools.

Single-acting — when it is the correct configuration and when it is not, as it defines the valve's safety state

The single-acting actuator uses compressed air to move the piston in one direction and an internal spring to return it to the original position. It is also the most specified configuration for industrial ON/OFF services. It is the most specified configuration for ON/OFF services, although it is not the correct one for all applications:

  • Correct when a defined safety state is required upon loss of air, as the spring acts automatically without a control signal: When the air supply is cut off, the spring returns the piston and the valve to the safety position — open or closed depending on the configuration. Consequently, the valve does not remain in an indeterminate position in the event of a pneumatic failure. Therefore, it is the standard option in emergency shut-off systems where the valve must go to a safe position in the event of any pneumatic supply failure.
  • Not correct when the position must be maintained upon loss of air, as the spring always acts upon a cut-off: If the process requires the valve to remain in the last position upon loss of air, a double-acting actuator must be specified. In that case, single-acting is not suitable. Since the spring of the single-acting actuator acts upon any cut-off, it cannot maintain intermediate positions without air supply.

Available torque by diameter — how to select the correct model since it depends on the valve's characteristics

The valve's operating torque at maximum working pressure must be less than the actuator's torque at minimum supply pressure. Therefore, it is always specified with a torque margin of 25-30%. The three available models are described below, as the correct selection of the diameter is decisive for the assembly's operation:

  • 100 mm diameter — for medium-diameter valves that exceed the capacity of compact actuators: It is the lowest-cost model in the series. It is also the correct choice when the standard compact actuator does not achieve the torque required by the valve.
  • 125 mm diameter — for large-diameter or high differential pressure valves, since it generates greater torque: It generates greater force than the 100 mm model at the same supply pressure. It is the standard option for 8" to 14" butterfly and ball valves in industrial services with high differential pressure.
  • 160 mm diameter — the highest torque model in the series, as it covers the most demanding valves: For large-diameter or high differential pressure valves where the 100 and 125 mm models are insufficient. It is also the correct choice for high-torque segmented ball valves in viscous fluid or suspended solids services.

Technical specifications that define the application limits of the pneumatic piston actuator

Parameter Value
Actuator type Linear piston with crank arm — single-acting
Motion 0° to 90° (1/4 turn)
Stroke adjustment ±10° approx. using lateral stop screws
Available diameters 100 mm / 125 mm / 160 mm
Body material Aluminum with anti-abrasive treatment
Arm material Integral cast
Type of action Single-acting (air opens, spring closes — or vice versa)
Application ON/OFF ball, butterfly, and segmented ball valves
Compatible with Solenoid valves, limit switches, positioners

Piston actuator vs. rack-and-pinion — comparison table to select the correct type according to the required torque

Criterion Compact rack-and-pinion Piston with crank arm ← This product
Available torque in the same space Lower — limited by the compact size of the piston, although sufficient for medium diameters ✅ Higher — the large piston generates greater force for the same cylinder diameter
Angular position adjustment ⚠️ Limited or not available in standard models ✅ ±10° using stop screws — field adjustment without special tools
Robustness of the transmission mechanism ✅ Suitable for standard services ✅ Higher — integral cast arm withstands high-energy repetitive impacts
Size and weight ✅ Compact — for confined spaces Higher — justified, since it covers large-diameter valves where rack-and-pinion is insufficient
Correct application Small and medium-diameter valves where standard torque is sufficient ✅ Large-diameter or high differential pressure valves where rack-and-pinion is insufficient
Integration with pneumatic accessories ✅ Compatible with solenoid valves and limit switches ✅ Also compatible with solenoid valves, positioners, and limit switches

Main applications of the pneumatic piston actuator where high torque is a requirement

  • Automation of large-diameter valves where standard rack-and-pinion is insufficient: When the torque required by the valve exceeds the capacity of compact actuators, the 125 or 160 mm piston is the correct choice. The crank arm also transmits that torque with high mechanical resistance in each opening and closing cycle.
  • Chemical and petrochemical plants where the operating cycle is frequent and the environment is aggressive: The aluminum body with an anti-abrasive treatment ensures durability in environments with corrosive vapors, dust, and temperature. The actuator operates with compressed air, therefore it does not generate heat or an electrical signal in the process area.
  • Water systems and effluent treatment where high force is required in large-diameter valves: In 8" to 14" butterfly and ball valves in water or effluent lines, the required torque may exceed the capacity of compact actuators. The 160 mm piston also covers those cases with sufficient torque margin to operate the valve across its entire pressure range.
  • Power generation and auxiliary services where the cycle is continuous: In power plants, this actuator operates steam valves, thermal oils, and service fluids in continuous opening and closing cycles. Its robust construction, given that the cast arm is designed to withstand repetitive impacts, ensures a long service life in that type of service.
  • Integration in skids and packaged equipment where the mounting space is limited: The actuator integrates with solenoid valves, limit switches, and positioners for complete module automation. It is also compatible with the standard pneumatic accessories in the Cematic catalog, which facilitates the specification of the complete system.

For the complete range of pneumatic actuators, see pneumatic actuator collection →

Technical Data Sheet
