Corrosion-Resistant Valves with PFA and PTFE Lining — Total Chemical Resistance

Corrosion is the number one cause of premature failure in industrial valves handling aggressive fluids. A mineral acid, a concentrated alkali, or a chlorinated solvent can destroy a conventional stainless steel valve in weeks, leading to leaks, unscheduled plant shutdowns, and serious risks to personnel. The definitive solution is corrosion-resistant valves with PFA or PTFE internal lining: a metallic body with high mechanical strength, completely isolated from the fluid by a fluoropolymer layer practically inert to any chemical agent. At Cematic, we supply this technology in Mexico with available stock and specialized technical advice to select the correct material and design for each process.

PFA vs. PTFE — What's the Difference and Which One to Choose?

Both are fluoropolymers with high chemical resistance, but they have characteristics that make them preferable in different situations:

• PTFE (Polytetrafluoroethylene / Teflon): The best-known and most economical fluoropolymer. Nearly universal chemical resistance, excellent temperature range (-200 °C to +260 °C), very low coefficient of friction. Its limitation is that it cannot be welded or molded without joints, which in some designs creates small joint lines that can be points of attack for fuming acids or very aggressive oxidizing agents.
• PFA (Perfluoroalkoxy): High-performance fluoropolymer with the same chemical resistance as PTFE but with a key advantage: it can be melt-processed, allowing for seamless, completely continuous, and impermeable linings. Higher mechanical strength, better performance against repeated flexing, and higher purity (less ion leaching). It is the standard for applications where lining integrity is critical: fuming acids, chlorine, peroxides, fluorides, and high-purity applications in semiconductors and and pharmaceuticals.

Practical rule: For general services with acids and alkalis at moderate concentrations, PTFE is sufficient and more economical. For concentrated acids at high temperatures, strong oxidizers, fluorides, or where fluid purity is critical, specify PFA.

Types of Corrosion-Resistant Valves Available at Cematic

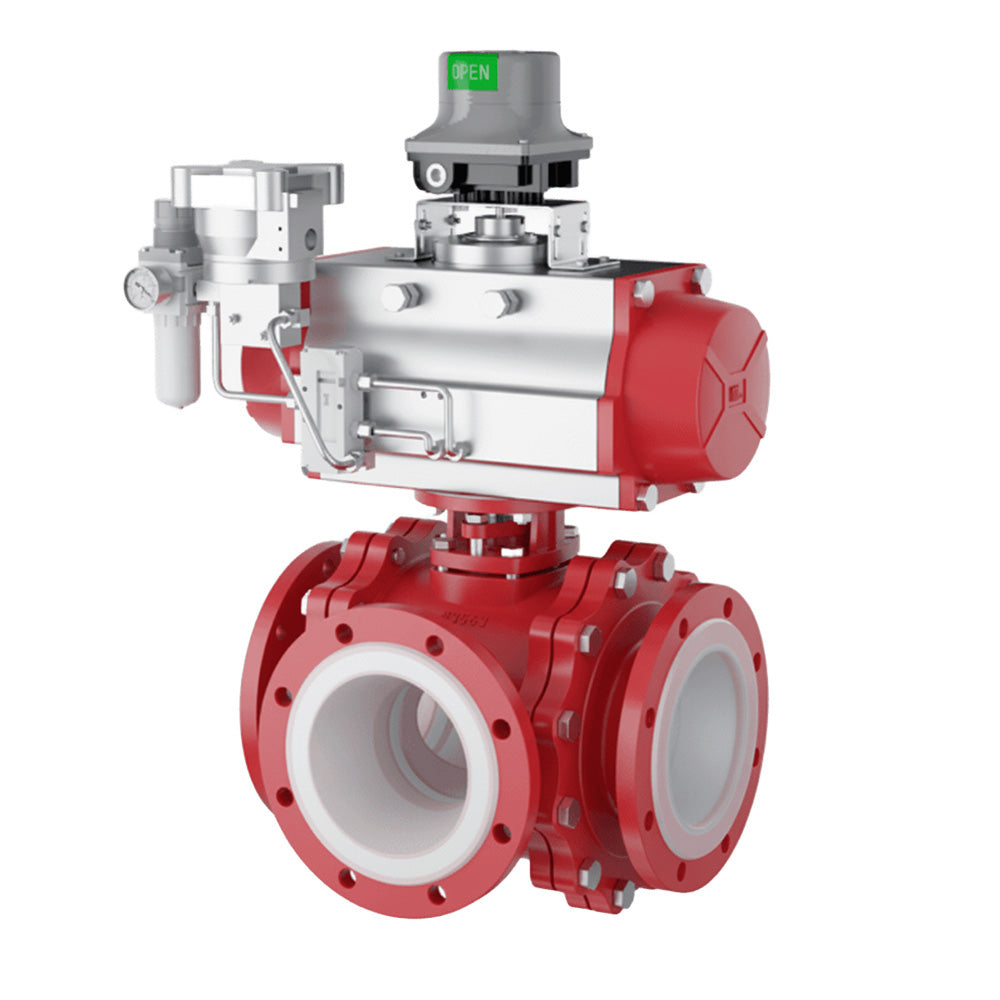

Corrosion-Resistant Ball Valve (Lined Ball Valve)

Body in carbon steel (WCB) or ductile iron with 2.5–3 mm thick PFA or PTFE internal lining. Solid PTFE ball or PFA-coated. Virgin PTFE seats. Flanged connection ANSI 150 or DIN PN10/16. The full-port design ensures unrestricted flow and facilitates line cleaning. Available in 2-way and 3-way (L or T) for fluid diversion and mixing. Can be automated with a pneumatic or explosion-proof (Ex) electric actuator.

Corrosion-Resistant Butterfly Valve (Lined Butterfly Valve)

Wafer body with circumferential PTFE or chemically resistant EPDM lining. Stainless steel 316 disc with PTFE or PFA lining. The highest flow and lowest cost option for large diameters (DN80 to DN600) in lines with diluted acids, alkalis, and saline solutions. Ideal for high-frequency ON/OFF shut-off services in chemical treatment plants.

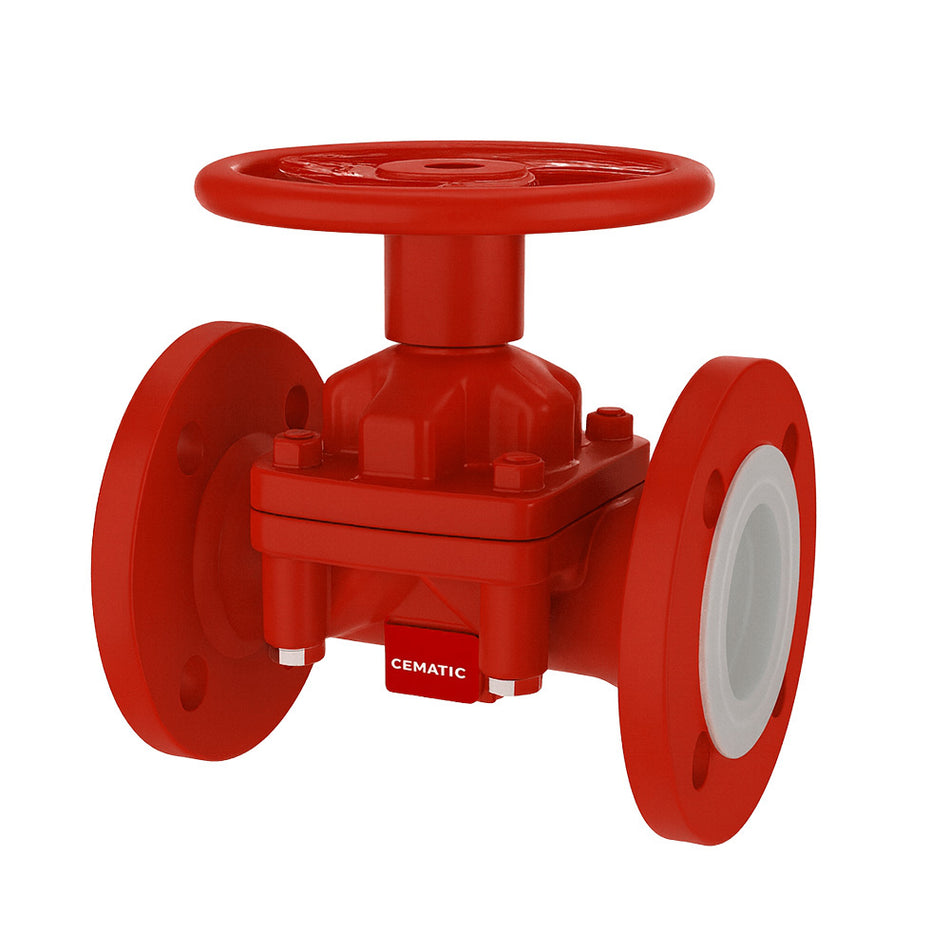

Corrosion-Resistant Diaphragm Valve (Lined Diaphragm Valve)

The safest design for fluids that must not come into contact with any metallic part. The PTFE or PFA diaphragm completely separates the operating mechanism from the fluid. No cavities, no product retention, no risk of metallic contamination. Indispensable in lines of hydrochloric acid, hydrofluoric acid, sodium hypochlorite, hydrogen peroxide, and cyanide solutions. Also preferred in pharmaceuticals and semiconductors for its high purity.

Corrosion-Resistant Gate Valve (Lined Gate Valve)

For applications requiring tight shut-off with minimal pressure drop in the fully open position. PFA or PTFE lined body, solid PTFE gate. Used as a block valve in continuous chemical process lines where operation is infrequent.

Chemical Resistance — Typical Compatible Fluids

PFA and PTFE lined valves are resistant to practically all industrial corrosive fluids, including:

• Mineral acids: Sulfuric acid (H₂SO₄) at any concentration, hydrochloric acid (HCl), nitric acid (HNO₃), phosphoric acid (H₃PO₄), hydrofluoric acid (HF).
• Organic acids: Acetic, formic, oxalic, citric acid and their anhydrides.
• Strong alkalis: Sodium hydroxide (NaOH), potassium hydroxide (KOH) at high concentration.
• Oxidizers and halogens: Chlorine gas (Cl₂), sodium hypochlorite (NaClO), hydrogen peroxide (H₂O₂), bromine, fluorine.
• Organic solvents: Toluene, xylene, acetone, MEK, chlorinated solvents (DCM, TCE), DMF.
• Chloride solutions: Iron chloride (FeCl₃), aluminum chloride, concentrated seawater.
• High-purity fluids: Ultrapure water (UPW), water for injection (WFI), semiconductor-grade electronic reagents.

For specific fluids not listed, consult our technical team — we provide chemical compatibility verification free of charge.

General Technical Specifications

• Body: Carbon steel ASTM A216 WCB, ductile iron or stainless steel 316 depending on model
• Internal lining: Virgin PFA or virgin PTFE, 2–4 mm thickness depending on diameter
• Operating temperature: -40 °C to +200 °C (PFA) / -60 °C to +200 °C (PTFE)
• Nominal pressure: ANSI 150 (PN20) standard; ANSI 300 (PN50) available for ball valves
• Diameters: DN15 (½") to DN400 (16") depending on type
• Connection: Flanges ANSI B16.5, DIN 2501, JIS B2210
• Factory test: Hydrostatic body and seat pressure test according to API 598 / BS 6755

Main Industries and Applications

• Chemical and petrochemical industry: Production and transfer lines for concentrated mineral acids, alkalis, solvents, and corrosive intermediates. Corrosion-resistant valves eliminate the frequent replacement of metallic valves that corrode in weeks or months.
• Water and industrial effluent treatment: Hypochlorite, sulfuric acid, and coagulant dosing in treatment plants. Neutralization systems for acidic and alkaline effluents.
• Pharmaceutical and high-purity industry: Handling synthesis solvents, reactor cleaning acids, and process fluids where metallic contamination is unacceptable.
• Semiconductor and electronics manufacturing: Distribution of etching acids (HF, HNO₃, H₂SO₄), cleaning solutions (SC1, SC2), and ultrapure water in cleanrooms.
• Pulp and paper industry: Bleaching lines with chlorine and chlorine dioxide, digesters with black liquor, and chemical recovery systems.
• Mining and metallurgy: Sulfuric acid leaching plants, electrodeposition, metal refining, and handling of cyanide solutions in gold and silver recovery.
• Fertilizer and agrochemical industry: Production of phosphoric acid, superphosphates, anhydrous ammonia, and pesticides with highly corrosive raw materials.

Operation and Automation in Corrosive Environments

Cematic's corrosion-resistant valves can be configured with actuators specifically designed for environments with corrosive vapors and hazardous areas (ATEX / NEC):

• Standard or explosion-proof pneumatic actuator: For frequent cycles in areas with flammable or corrosive vapors. Fast response and low maintenance.
• IP67 / Ex electric actuator: For integration with PLC or SCADA in chemical dosing control systems or treatment plants. 4–20 mA signal, Modbus, or On/Off.
• Electro-pneumatic positioner: For proportional flow control in closed loop, precise dosing applications, or pH control.

Why Choose Cematic for Your Corrosion-Resistant Valves?

We have proven experience supplying corrosion-resistant valves to chemical, pharmaceutical, and water treatment plants in Mexico. We advise on the selection of the correct fluoropolymer (PFA vs. PTFE), verify chemical compatibility with your specific fluid, and issue a formal technical quote with detailed specifications on the same business day. Stock available in Mexico City. Shipping throughout the republic. Contact us via WhatsApp or at ventas@cematic.com.
