What is a V-port ball valve and when to use it?
Unlike a standard ball valve—whose solid ball is only used for ON/OFF shutoff—the segmented ball valve uses a V-port parabolic ball that allows for precise modulating control of flow: as the segment rotates from 0° to 90°, the flow area progressively increases following a nearly linear or equal percentage flow characteristic, depending on the V-port angle. This makes it a superior alternative to globe and butterfly valves in applications where the fluid contains solids, fibers, or particles that would obstruct or damage those designs.
The sharp edge of the V-port also acts as a blade that cleanly cuts through fibers, lumps, and particles during closing, preventing seat obstruction and the trapping of solids between the ball and the seal—the most frequent problem with globe or butterfly valves in these services.
Technical Specifications
| Type | V-Port / V-Ball segmented ball valve, quarter-turn 0°–90° |
| Body Material | AISI 316 Stainless Steel (CF8M) |
| Segment (Ball) Material | 316 Stainless Steel, with option for hard coating (Stellite / tungsten carbide) for severe abrasive services |
| Seal / Seat Type | Metal (metal-to-metal) with live-loaded spring — no elastomeric seat that can be damaged by solids or high temperatures |
| Stem Packing | Standard expanded graphite (Grafoil); PTFE upon request for high-purity fluids |
| Pressure Class | ANSI 150 (PN20) — maximum working pressure 19.6 bar at ambient temperature |
| Operating Temperature | -29 °C to 180 °C with graphite packing |
| Connection | ANSI B16.5 Class 150 Flanges, flat face (FF) or raised face (RF) |
| Available Diameters | DN50 (2") — DN200 (8") standard; other diameters upon consultation |
| Flow Characteristic | Equal percentage / nearly linear depending on V-port opening angle |
| Rangeability | Up to 200:1 — very wide control range in a single device |
| Actuator Interface | ISO 5211 — compatible with standard pneumatic and electric actuators |
| Design Standards | ASME B16.34, API 6D, ASME B16.10 (face-to-face) |
| Factory Test | API 598 — hydrostatic body and seat test, low-pressure pneumatic test |
Advantages of Metal Seat vs. Elastomeric Seat
The Cematic segmented ball valve uses a metal seat with live-loaded spring—not a PTFE or elastomeric seat. This is a critical difference in difficult services:
- No degradation by temperature: The metal seat operates without restrictions up to 180 °C. A PTFE seat loses rigidity and sealing above 150 °C, and an EPDM seat fails above 120 °C.
- No damage from abrasive particles: Abrasive solids and particles in the fluid scratch and erode PTFE within a few months of operation. The metal seat resists erosion thanks to its higher surface hardness.
- No extrusion due to high differential pressures: At high pressures, PTFE can extrude into the fluid path, causing leaks and trapping. The metal seat maintains its geometry under load.
- Self-cleaning by design: The live-loaded spring keeps the seat in contact with the spherical segment even in a partially open position, sweeping away solid deposits with each cycle.
- Longer overall service life: In services with slurries, pulps, or abrasive fluids, a metal seat can last 5 to 10 times longer than a PTFE seat, drastically reducing the total cost of maintenance.
Flow Characteristic — Why does the "V" matter?
The "V" geometry of the spherical segment is not just aesthetic — it directly defines the valve's control capability. As the segment rotates from 0° to 90°, the flow area grows following an equal percentage curve: small changes in opening at positions close to closing produce small variations in flow rate (high sensitivity when most needed), while in more open positions, the same angular change produces a greater variation in flow rate.
This characteristic, combined with a rangeability of up to 200:1, means that the valve can precisely control from very low flow rates to the maximum design flow rate without changing the device. For the control engineer, this translates into more stable PID loops, less oscillation, and less need to readjust parameters due to changes in process conditions.
Comparison: Segmented Valve vs. Other Control Valves
| Criterion | V-Port Segmented Ball Valve | Globe Valve | HP Butterfly Valve |
|---|---|---|---|
| Fluids with solids | ✅ Excellent | ❌ Frequent obstruction | ⚠️ Moderate |
| Viscous fluids / pulps | ✅ Excellent | ⚠️ Fair | ⚠️ Fair |
| Flow characteristic | ✅ Linear / Equal % | ✅ Linear / Equal % | ⚠️ Sinusoidal |
| Rangeability | ✅ Up to 200:1 | ✅ Up to 50:1 | ⚠️ Up to 30:1 |
| Pressure drop when open | ✅ Low | ❌ High | ✅ Very low |
| High temperature (>150°C) | ✅ Metal seat | ✅ Metal seat | ⚠️ Limited by seat |
| Self-cleaning action | ✅ Yes — V-port edge | ❌ No | ❌ No |
| Actuation torque | ✅ Low (quarter turn) | ❌ High (linear) | ✅ Very low |
| Maintenance cost | ✅ Low | ⚠️ Medium-high | ✅ Low |
Automation — Integration with Actuator and Positioner
The segmented ball valve is designed from its conception to operate in automatic control loops with a modulating signal. The ISO 5211 top-works interface allows direct coupling of:
- Quarter-turn pneumatic actuator (double-acting recommended for modulating control) with an electropneumatic positioner that receives a 4–20 mA signal from the PID controller and positions the segment with an accuracy of ±1° or better. This is the most common configuration in the industry due to its response speed and low cost.
- Quarter-turn electric actuator with a 4–20 mA or 0–10 V input signal, position indication, and Modbus or other protocol communication. Ideal when no compressed air supply is available or when direct digital integration is required.

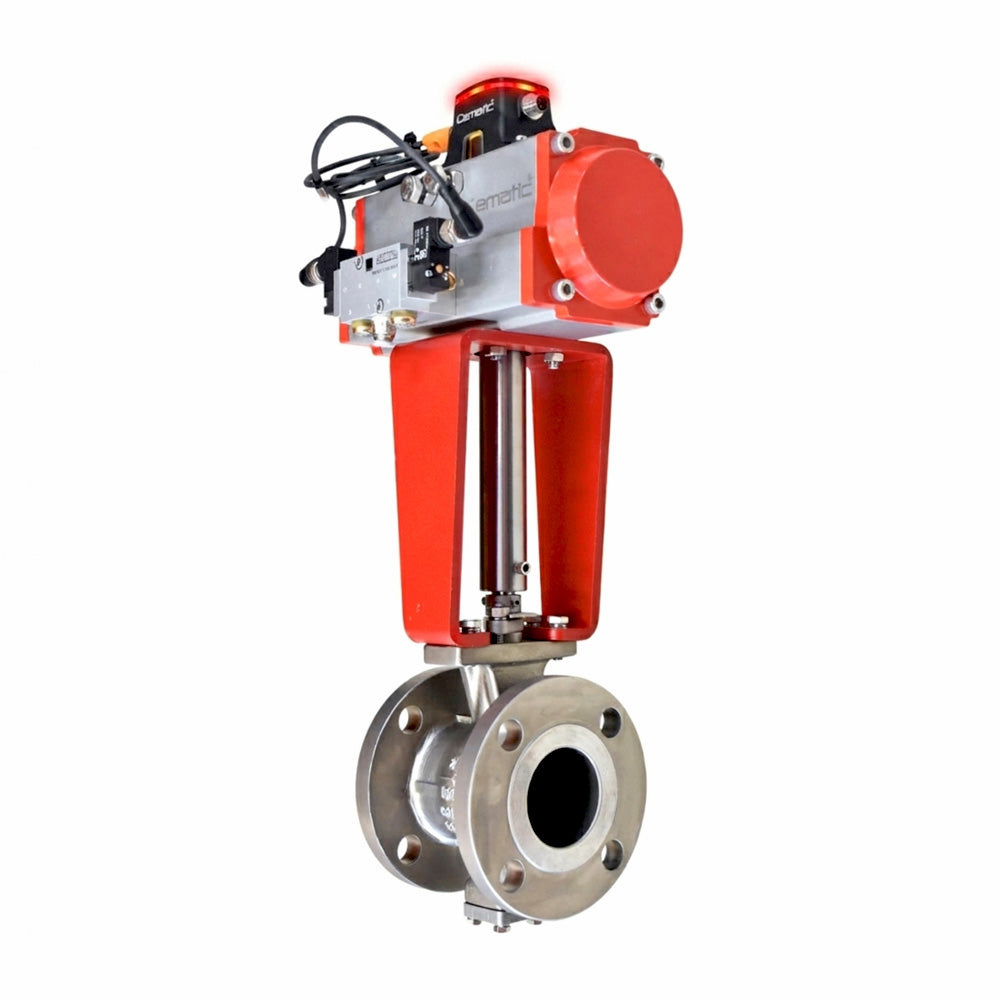

Cematic supplies the segmented valve as a complete package with actuator and positioner, assembled and calibrated in the workshop. The assembly arrives ready for installation and connection to the control signal of your PLC or DCS.
Main Industrial Applications
- Pulp and paper / cellulose: Flow control of fibrous pulp in digesters, washers, refiners, and bleaching systems. The cutting action of the V-port eliminates fiber clogging that would render a globe valve useless in days.
- Mining and metallurgy: Regulation of process slurries, tailings, lime slurries, and fluids with high abrasive solid loads in thickeners, flotation cells, and filter presses.
- Wastewater treatment: Control of activated sludge, dewatered sludge, and effluent mixtures with solids in municipal and industrial plants.
- Chemical and petrochemical industry: Regulation of viscous fluids, reactive fluids with particles, two-phase mixtures, and products that crystallize or polymerize on the internal surfaces of a conventional valve.
- Food industry: Control of fruit pulps, pastes, concentrates, molasses, and other viscous products or products with suspended solids. The SS316 body is compatible with food fluids and CIP solutions.
- Power generation: Regulation of steam, condensate, boiler water, and cooling fluids in thermal power plants where a metal seat is required due to temperature.
- Steel industry: Control of cooling water contaminated with scale, hydraulic oils with particles, and other aggressive fluids typical of steel production.
When is the segmented valve NOT the right choice?
The metal seat of the segmented valve does not provide Class VI (bubble-tight / zero-leakage) tightness. If your application requires total hermetic closure—as in safety systems where zero leakage is mandatory—consider a conventional ball valve with a PTFE seat or a globe valve with a low-closing plug. The segmented valve tolerates controlled seat leakage according to ANSI/FCI 70-2 Class IV or Class V, which is perfectly acceptable for process control but not for critical safety isolation.
Request a quote
To quote the segmented ball valve with the exact specifications for your process—diameter, pressure, temperature, fluid, and required automation level—contact us via WhatsApp or at ventas@cematic.com. Our technical team will perform a complete selection and issue a formal quote on the same business day.
