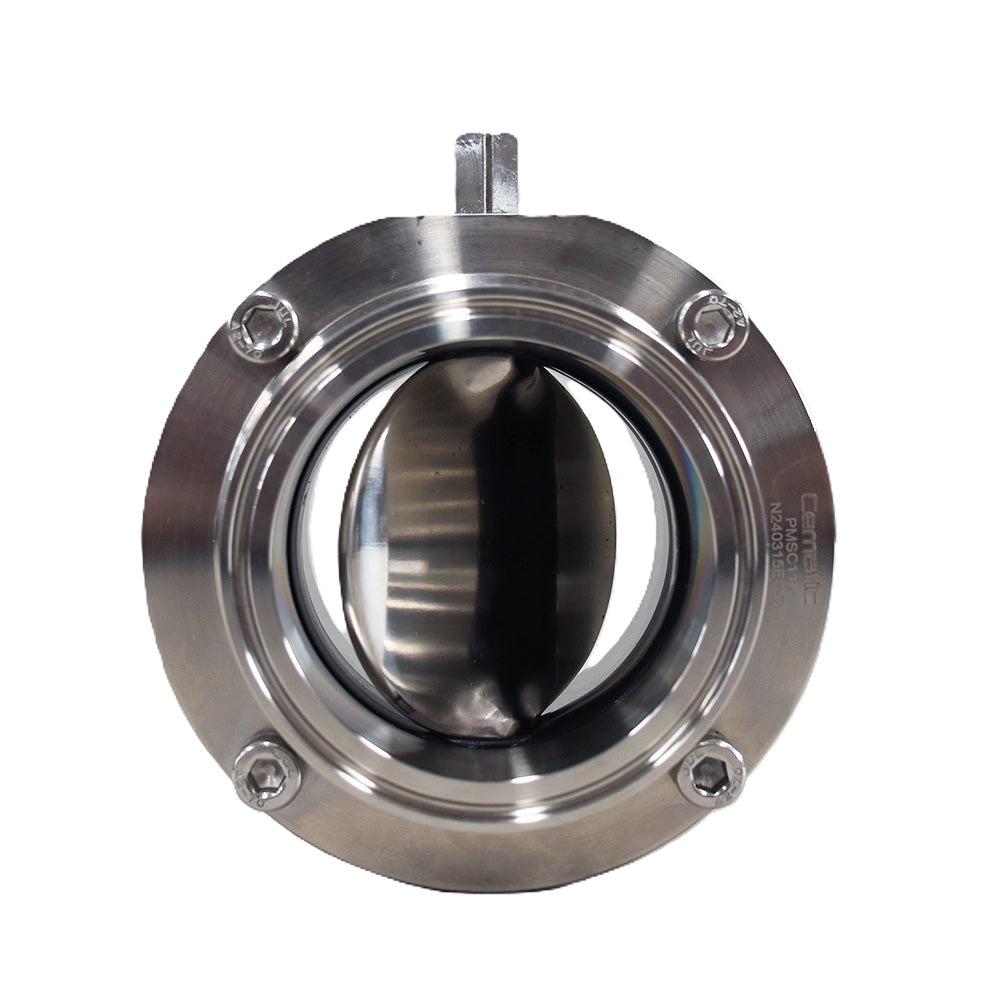

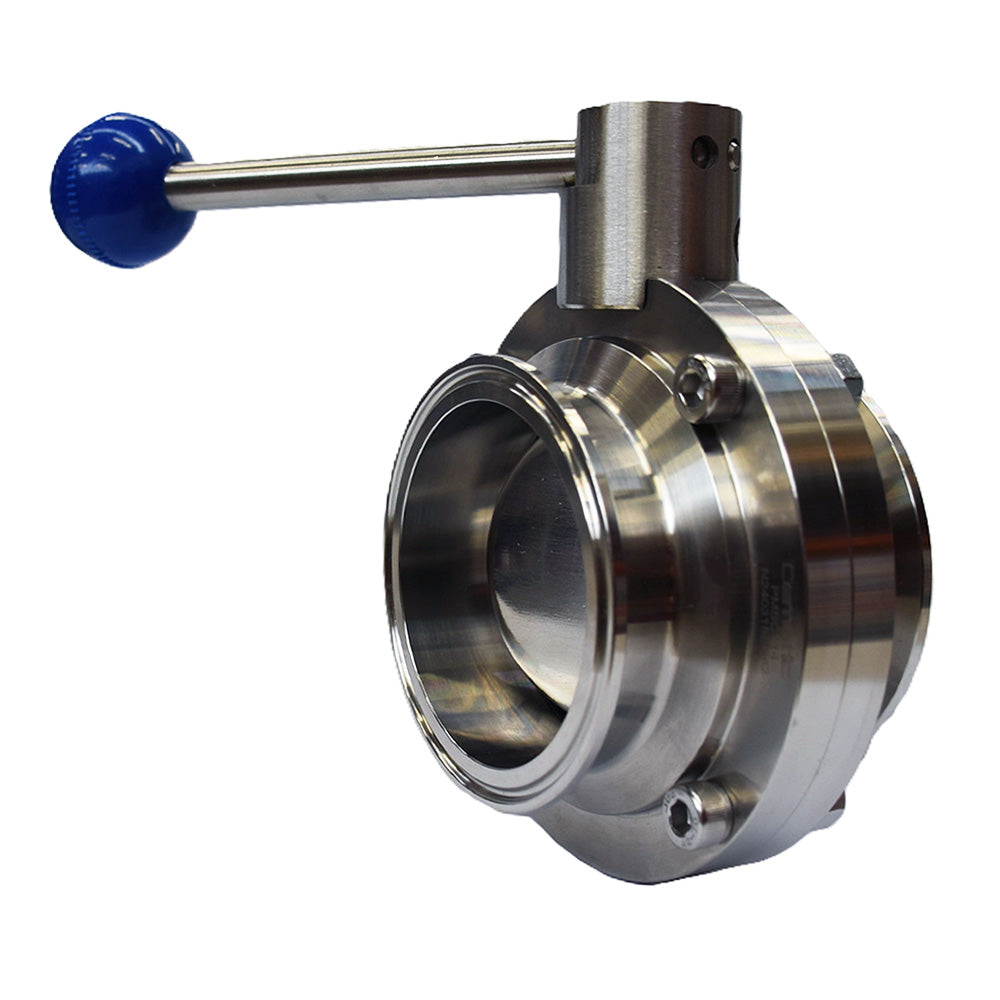

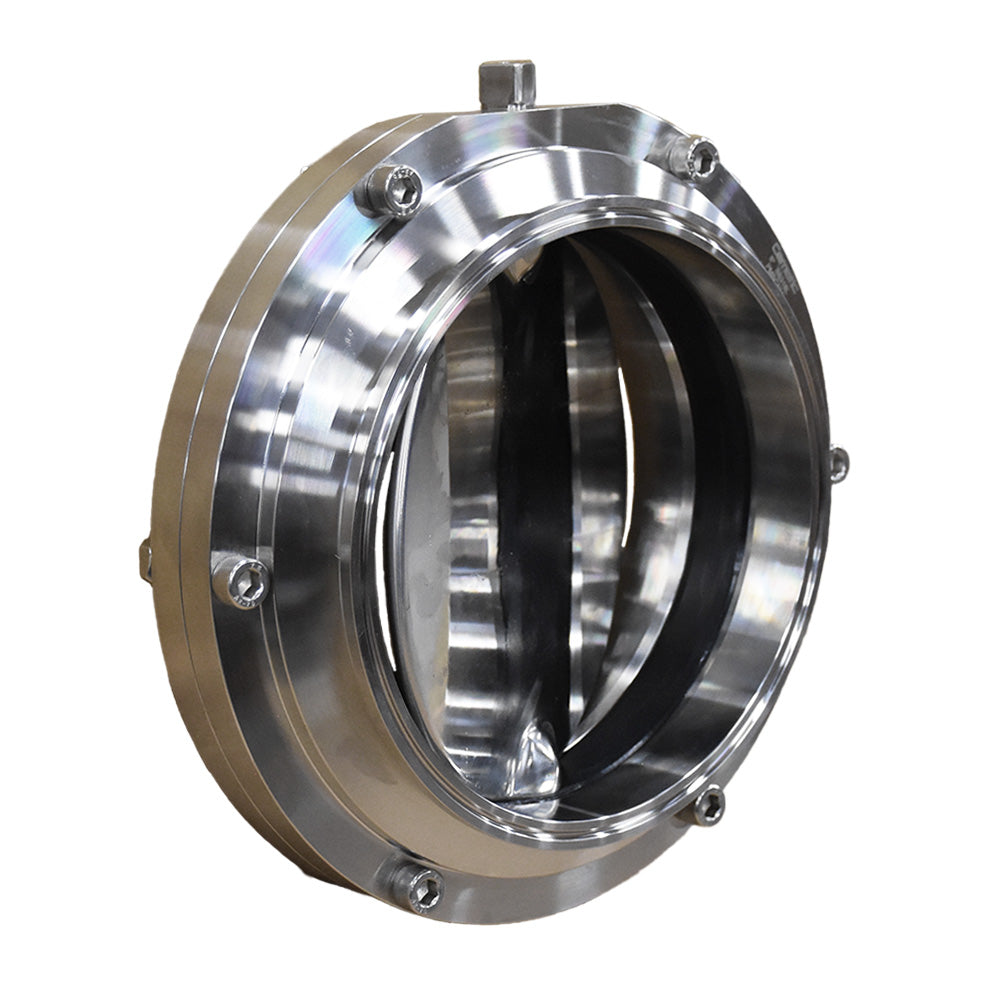

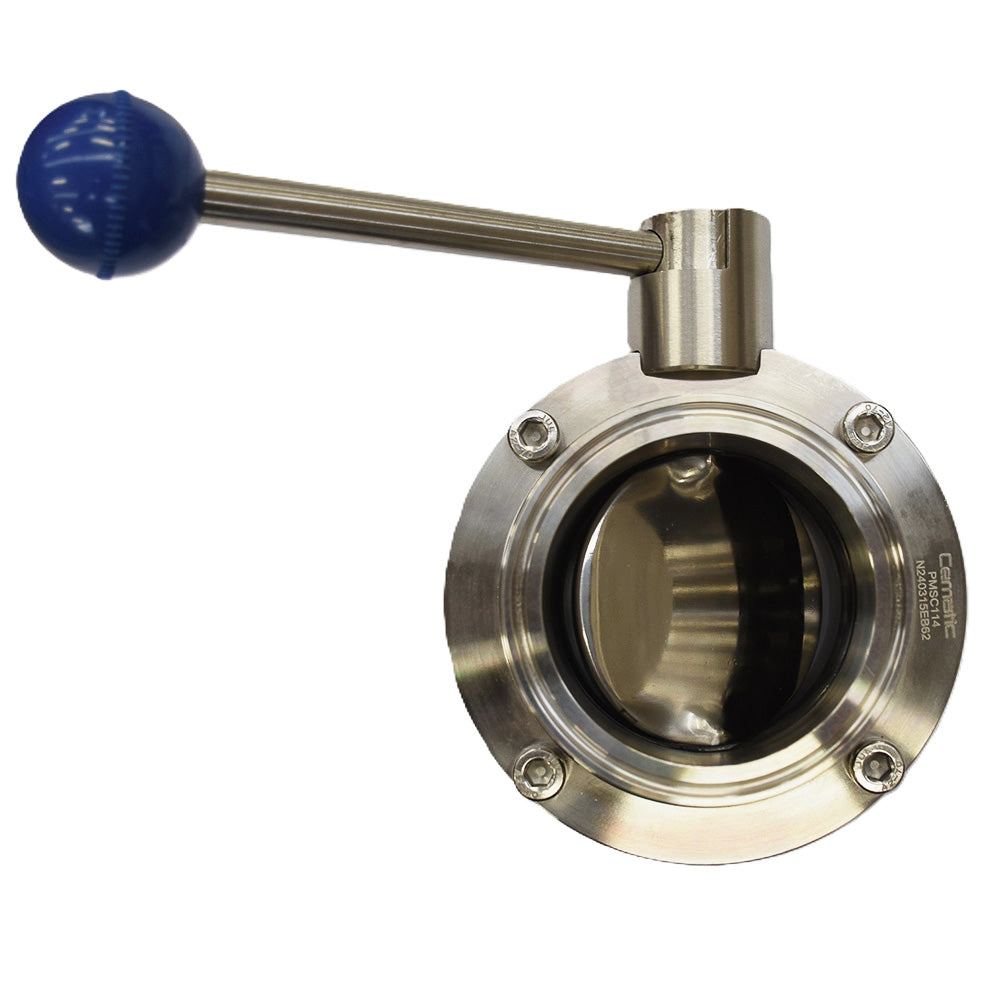

The SS316L hygienic clamp butterfly valve is a type of valve used mainly in the food, pharmaceutical and beverage industries, where high standards of hygiene and corrosion resistance are required. Here is a detailed description:

Description of the Hygienic Clamp Butterfly Valve in SS316L

Material:

• Body and disc: Stainless Steel 316L (SS316L). This material is known for its high corrosion resistance and ability to maintain purity in hygienic applications.
• Packaging: Usually silicone, EPDM, or FKM (Viton), depending on the application and specific chemical and temperature resistance requirements.

Applications:

• Food industry: Food and beverage processing, where avoiding contamination and maintaining high standards of cleanliness are essential.
• Pharmaceutical industry: Production processes where hygiene and cleanliness are critical to avoid product contamination.
• Beverage industry: Production of beverages, including beer, wine, juice and soft drinks.
• Cosmetics: Manufacturing processes of cosmetic products that require a clean and controlled environment.

Characteristics:

• Body Stainless Steel 316L (CF3M)
• Hygienic for food use.
• Clamp connection 3A
• EPDM seat
• Temperature Range 29 to 200ºC
• SS304 screws and nuts
• Stainless Steel Lever SS316L Plastic Coated

• Manual or Automated Operation with Pneumatic or Electric Actuator

Download Technical Sheet
