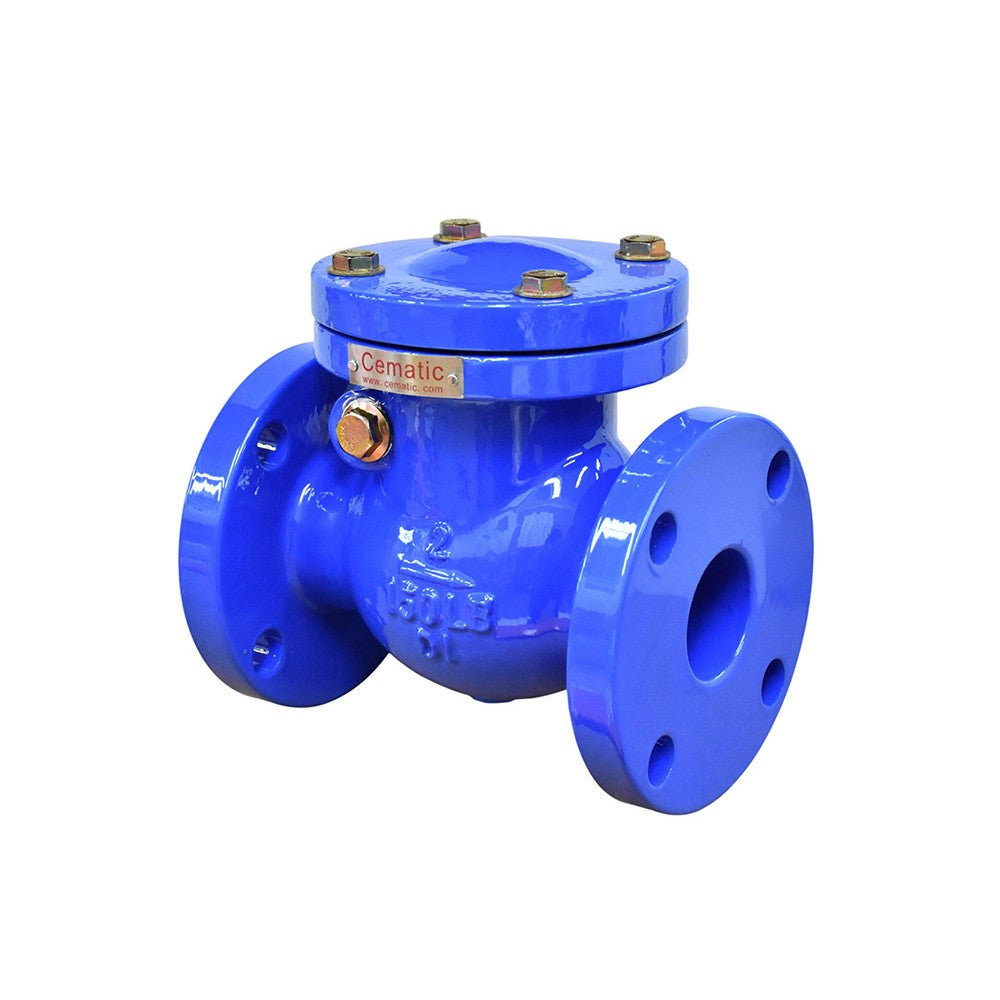

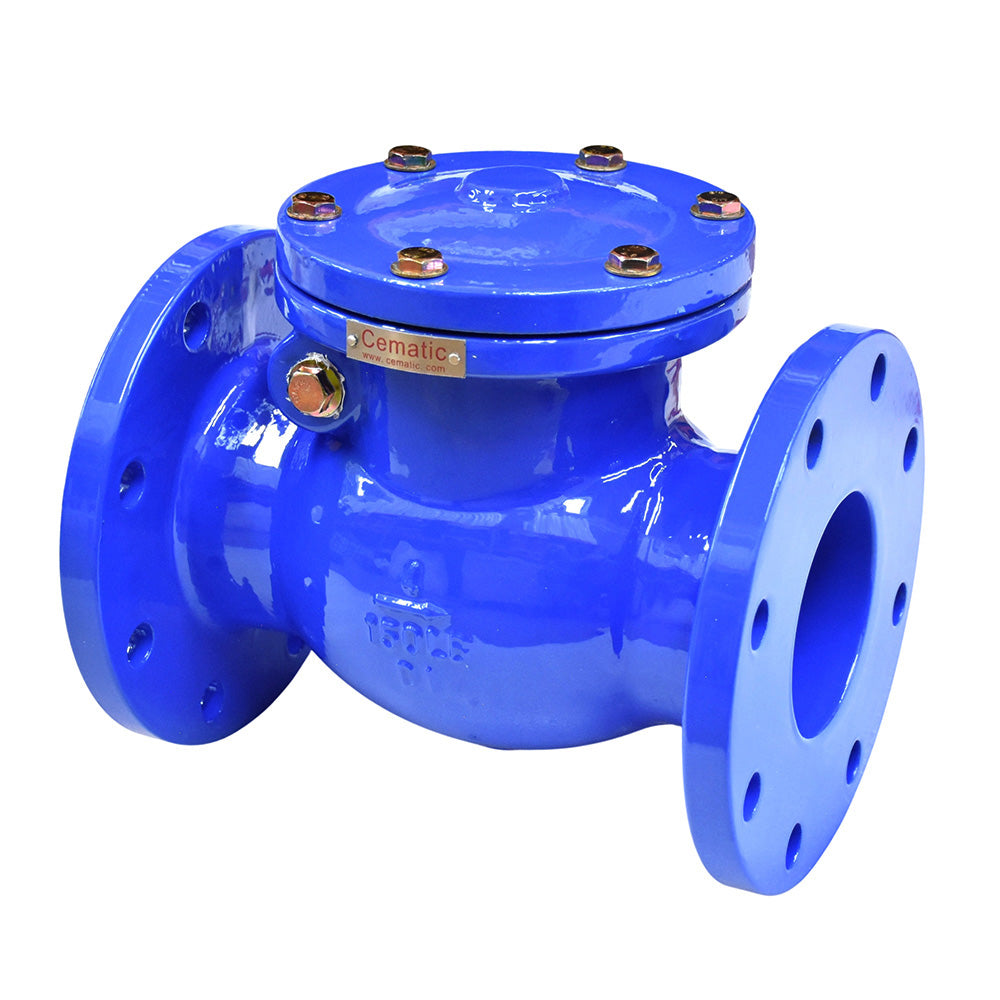

Ductile Iron Swing Check Valve with ANSI 150 Flanges and Epoxy Coating
The Cematic swing check valve prevents fluid backflow in water and oil lines. Therefore, it protects pumps, equipment, and piping from water hammer. In addition, its GGG40 ductile iron body and disc offer mechanical strength for continuous service.
Likewise, the SS316 stainless steel seat and pin ensure a long-lasting seal. Finally, the blue epoxy coating protects the exterior against corrosion and facilitates identification in the plant.
Main Features
- ✅ GGG40 body and disc: therefore, they withstand line pressure with high mechanical strength.
- ✅ SS316 seat and pin: thus, the sealing and disc rotation remain stable over time.
- ✅ Blue epoxy coating: additionally, it protects the exterior against corrosion.
- ✅ Maximum working pressure of 2.0 MPa: consequently, it is installed directly in ANSI 150 lines.
- ✅ Swing design: likewise, the disc opens with the flow and closes on its own when reversed.
- ⚠️ Not suitable for steam: finally, the coating limits service to continuous 80 °C.
Technical Specifications
| Feature | Specification |
|---|---|
| Type | Swing check |
| Pressure class | ANSI 150 |
| Maximum working pressure | 2.0 MPa (20 bar) |
| Body and disc | GGG40 ductile iron |
| Seat and pin | SS316 |
| Exterior coating | Blue epoxy |
| Fluid temperature | Up to 80 °C in continuous service |
| Compatible media | Water and oil |
| Connection | ANSI B16.5 flanged |
| Standards | API 594, ASME B16.5, B16.10, B16.34, API 598 |
Construction Materials
| Component | Material |
|---|---|
| Body | Ductile iron |
| Disc | Ductile iron |
| Seat | SS316 |
| Hinge pin | SS316 |
| Cover | Ductile iron |
| Gasket | Graphite |
| Fasteners | Carbon steel |
Industrial Applications
This equipment is installed, for example, in the following sectors. In addition, it works with water and oil at temperatures of up to 80 °C.
Swing Check Valve in Water Pumping and Supply
In pumping stations and distribution networks, the valve is installed on the pump discharge. Therefore, it prevents the water column from returning when the equipment is stopped. Likewise, it protects the impeller and reduces the risk of water hammer.
Water Treatment and Treatment Plants (WTP)
In potable water and treated wastewater plants, it maintains the flow in one direction between tanks, pumps, and processes. Thus, it prevents backflow contamination and protects upstream equipment. Finally, ductile iron withstands continuous service.
Agricultural and Industrial Irrigation
In irrigation systems, the valve prevents water from returning to the well or source. Consequently, it keeps the line pressurized and facilitates pump startup. Likewise, it is useful in industrial irrigation of green areas and processes.
Swing Check Valve in HVAC and Climate Control
In chilled water, hot water, and condensation circuits, it controls the flow direction. Therefore, it prevents recirculation when the pumps are turned off. In addition, it helps maintain the stable hydraulic balance of the system, always within the 80 °C limit.
Manufacturing Industry
In manufacturing plants, it serves process water and oil lines. Thus, it protects pumps and equipment against fluid backflow. Finally, its robust construction and epoxy coating withstand the plant environment.
To complete your installation, explore our family of check valves and our gate valves. To request a quote, indicate the diameter, fluid, temperature, and working pressure. In conclusion, we help you choose the ideal swing check valve for your line.
