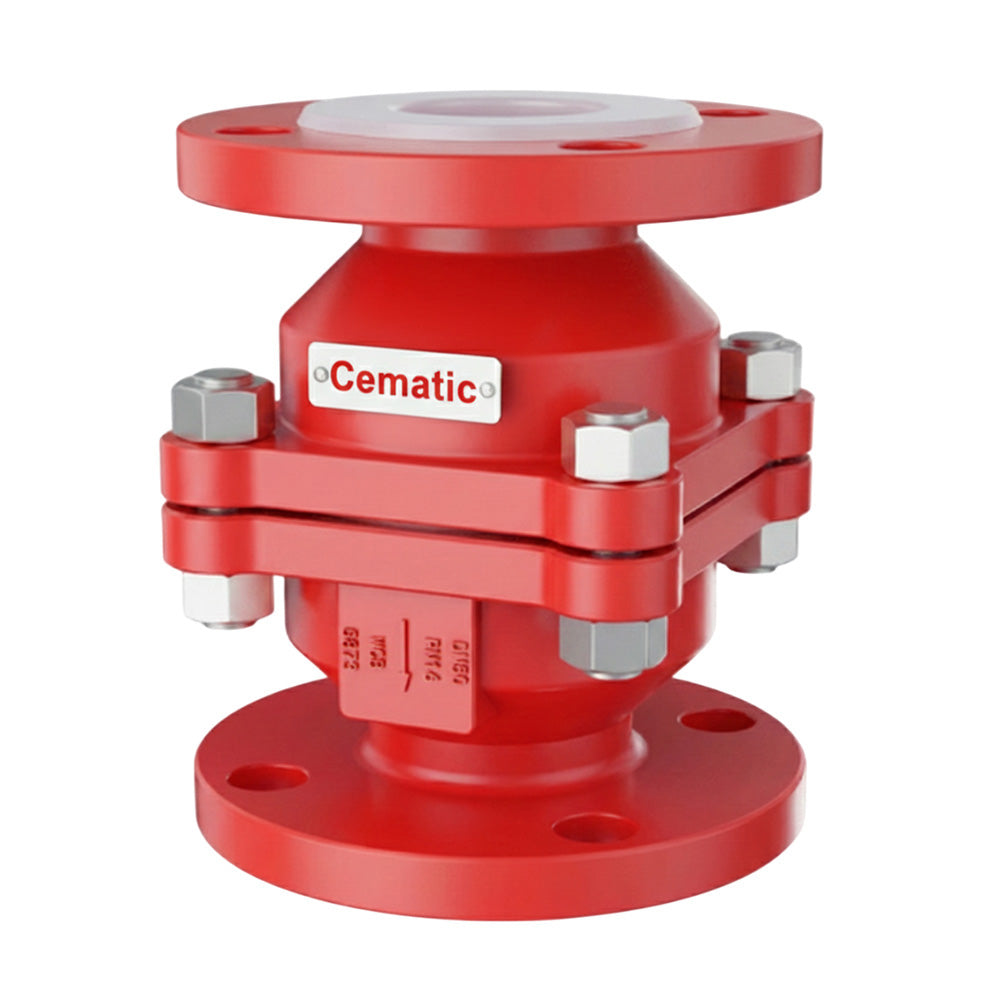

Corrosion-Resistant Ball Check Valve — WCB Body, PFA Lined, ANSI 150 Flange, Self-Cleaning PTFE Ball

The corrosion-resistant ball check valve with PFA lining is the retention component for extreme corrosive fluids that no conventional check valve can handle: hydrofluoric acid, concentrated sulfuric acid, hydrochloric acid, liquid chlorine, and strong oxidizers that would destroy stainless steel, brass, or standard check valve elastomers in days. Its operating principle is simple and without complex moving parts: a PTFE ball floats freely inside a PFA-lined body — when the fluid flows in the correct (upward) direction, the ball rises and allows the fluid to pass; when the flow stops or attempts to return, the ball falls by gravity and seals the passage. No spring, no hinge, no mechanism that can seize or get stuck with aggressive fluid.

Operating Principle — Gravity Retention without Spring

Unlike spring-loaded check valves (swing check, lift check with spring) that rely on a metal spring for closure, the ball check valve closes exclusively by gravity:

• Upward flow — valve open: Fluid pressure lifts the PTFE ball from its seat. The ball floats freely inside the PFA-lined body, without touching the body walls. Fluid passes freely around the ball upwards.
• Stopped flow or back pressure — valve closed: Without upward pressure, the ball falls by its own weight (the PTFE ball is denser than many aqueous fluids) and seats on the conical PFA-lined seat of the lower body, sealing the fluid passage.
• No spring — critical advantage in corrosive fluids: Metal springs in conventional check valves are frequent failure points in services with acids and oxidizers — corrosion progressively weakens the spring until it loses its closing force or fractures. The gravity ball check valve does not have this failure point.

Installation requirement: The gravity ball check valve must be installed in vertical piping with upward flow. In horizontal installations or with downward flow, the ball cannot fall by gravity to seal — the valve will not function correctly. This is the most important requirement to verify before specifying this product.

Self-Cleaning — Ball Rotates with Fluid

A significant operational advantage of the ball check valve over disc or flap checks: during normal operation with upward flow, the ball is not fixed in position — it rotates freely due to the fluid passing around it. This continuous rotation:

• Prevents the accumulation of scale or deposits on the ball's surface — any deposits that start to form are immediately carried away by the rotational movement
• Distributes wear evenly over the entire surface of the ball — instead of concentrating wear at the contact point with the seat as would occur with a static ball
• Prevents fine particles from permanently adhering to the ball — the rotational movement keeps them in suspension in the fluid
• Reduces the need for maintenance in services with fluids that tend to crystallize or leave deposits upon evaporation

PFA Lining — Full Internal Coverage

The body, disc, and cover are made of WCB with continuous PFA internal lining — no metallic surface of the body is exposed to the fluid under any operating condition. The ball is made of virgin PTFE — the only movable non-metallic component, with virtually universal chemical resistance equivalent to PFA.

• ✅ Body: A216 WCB + PFA lining
• ✅ Disc: A216 WCB + PFA lining
• ✅ Cover: A216 WCB + PFA lining
• ✅ Ball: Virgin PTFE — chemical resistance equivalent to PFA
• ✅ Bolts: A193 B7 — not in contact with the fluid

Technical Specifications

• Type: Ball check — gravity retention without spring
• Design standard: API 6D
• Face to face: ASME B16.10
• Flanges: ANSI/ASME B16.5 Class 150
• Inspection and testing: API 598
• Body material: A216 WCB + PFA lining
• Ball: Virgin PTFE
• Internal lining: PFA
• Bolts: A193 B7
• Nominal diameters: 1" (DN25), 1½" (DN40), 2" (DN50), 3" (DN80), 4" (DN100)
• Maximum pressure: 285–290 psi (19.6–20 bar) at 38 °C — reduces with temperature according to ASME B16.34
• Operating temperature: -20 °C to +200 °C — verify specific fluid concentration and temperature
• Installation: Mandatory vertical with upward flow — not suitable for horizontal installation
• Closure: By gravity — no spring
• Vacuum capability: Yes — up to 0.1 mbar according to pressure-temperature curve

Pressure-Temperature Curve — Operating Limits

The maximum operating pressure decreases as temperature increases. According to the technical data sheet curve:

Approximate values according to technical data sheet curve. Verify official curve for final system design.

Chemical Compatibility

• ✅ Hydrochloric acid HCl — any concentration
• ✅ Nitric acid HNO₃ — including concentrated
• ✅ Hydrofluoric acid HF — any concentration
• ✅ Liquid chlorine Cl₂
• ✅ Sulfuric acid H₂SO₄ — including concentrated
• ✅ Sodium hypochlorite NaClO
• ✅ Phosphoric acid H₃PO₄
• ✅ Concentrated alkalis (NaOH, KOH)
• ✅ Fluids with small suspended particles — the floating ball tolerates fine solids without jamming
• ⚠️ Always verify specific process concentration and temperature

PFA Ball Check vs. Standard Spring Check — When to Specify Each

Main Industries and Applications

• Chemical industry — retention in concentrated acid lines: Prevention of backflow of HF, H₂SO₄, HCl, HNO₃ and their mixtures in vertical pumping lines. The PFA ball check valve is the only viable retention component for these fluids — SS316 spring checks fail due to spring corrosion in weeks or months.
• Petrochemical industry — corrosive process lines: Retention in pumping lines for acidic fluids in petrochemical process units — HF alkylation, organic acid synthesis, acidic waste treatment. The API 6D design ensures the integrity of the valve under the most demanding process conditions.
• Mining — leaching solutions: Prevention of backflow of H₂SO₄ solutions in heap leaching and SX-EW electrowinning circuits. Leaching solutions at 150–200 g/L H₂SO₄ with dissolved metal ions are incompatible with any metallic check without PFA lining.
• Water treatment — aggressive reagent dosing: Retention in dosing lines for liquid chlorine, concentrated hypochlorite, pH adjustment acids, and other aggressive reagents in treatment plants. The self-cleaning rotating ball prevents the check valve from clogging in hypochlorite lines that tend to crystallize.
• Pharmaceuticals — synthesis fluids: Retention in pumping lines for acidic solvents and synthesis solutions where material purity is critical. The PTFE of the ball and the PFA of the body do not release any compounds into the fluid.
• Vertical pumping lines — pump protection: In vertical pumping systems with corrosive fluids, the check valve at the pump discharge prevents acidic fluid backflow when the pump stops — protecting the pump from return water hammer and preventing corrosive fluid from flowing backward into equipment or areas of lower chemical resistance.
• Systems with crystallizable fluids: The continuous rotational movement of the ball during operation prevents the crystallization of salts or solids on the sealing surface — a frequent problem in disc or flap checks with hypochlorite, sulfates, and other salts that crystallize upon concentration.

For the complete range of corrosion-resistant valves, see PFA corrosion-resistant valves category →
