Direct-Acting Knife Valve — Semi-Lug (Wafer) Flanges, Bidirectional
This direct-acting knife valve isolates and controls the flow of slurries and media with solid particles in large-diameter industrial piping. Therefore, it is the correct specification for mining circuits, power plants, and suspended solids processes. In addition, its semi-lug (wafer) flange design reduces the weight and structural length of the entire piping system.
Unlike other knife valves in the catalog, this one is bidirectional. That is, the disc does not have slots that obstruct the passage of the media when fully open. Therefore, the flow circulates unhindered in any direction.
Likewise, the body is formed by two assembled pieces, with a packing seal on both ends of the disc. As a result, maintenance is simpler and the seal life is extended.
Structural Features of the Direct-Acting Knife Valve
The design of this valve incorporates several improvements intended to reduce maintenance and extend service life in heavy-duty applications. For example:
- ✅ Ultra-thin design — thus, it reduces the overall weight without sacrificing structural strength
- ✅ Disc always adjustable in contact with the seat — therefore, it is protected from direct media erosion, whether open or closed
- ✅ Floating seat design — consequently, it is easy to replace without removing the entire valve
- ✅ Wash ports on both sides — likewise, they facilitate the cleaning of the valve's internal cavity
- ✅ Hardenable disc surface — finally, it increases wear resistance and extends service life
Available Materials for the Direct-Acting Knife Valve Body
This direct-acting knife valve is available in three material combinations. Therefore, the choice depends on the aggressiveness of the media and the project budget:
| Body | Disc | Sealing | Stem |
|---|---|---|---|
| Carbon steel (WCB) | SS304 / SS201 | Rubber or PTFE | 2Cr13 |
| Stainless steel (CF8) | SS304 | Rubber or PTFE | Stainless steel 201 |
| Stainless steel (CF8M) | SS316 | Rubber or PTFE | Stainless steel 201 |
Actuation Options for the Direct-Acting Knife Valve
Depending on the operating frequency and available control infrastructure, this direct-acting knife valve is offered with six types of actuation:
- Manual handwheel: additionally, it operates directly in the field, without the need for electrical power or compressed air.

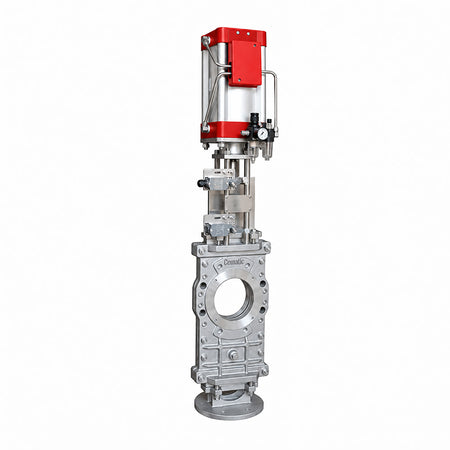

- Pneumatic: likewise, it automates the operation using a double-acting cylinder, with a solenoid for remote control from a PLC or control room.
- Pneumatic with manual: likewise, it combines automation with the possibility of manual backup operation in the event of an air supply failure.
- Electric: on the other hand, it automates using an electric actuator, useful where no compressed air network is available.
- Hydraulic: in contrast, it is recommended for large-diameter valves where greater actuation force is required.
- Gearbox (gears): finally, it reduces the manual operating effort in large-diameter valves.
Pneumatic Actuation — Cylinder Force by Diameter
For the variants with pneumatic actuation, the cylinder force varies according to its diameter. Therefore, the following table helps size the correct actuator:
| Cylinder diameter | Thrust force (N) | Pull force (N) |
|---|---|---|
| Ø80mm | 3,014 | 3,000 |
| Ø100mm | 4,710 | 4,500 |
| Ø125mm | 7,359 | 7,100 |
| Ø160mm | 12,057 | 12,000 |
| Ø200mm | 18,840 | 18,500 |
| Ø250mm | 29,438 | 29,000 |
These values correspond to an air supply pressure of 0.6 MPa. Likewise, they use purified compressed air without oil mist. Therefore, the cylinder operating pressure is 0.5 to 0.7 MPa, with an ambient temperature of -10 °C to +80 °C.
Technical Specifications of the Direct-Acting Knife Valve
| Parameter | Value |
|---|---|
| Flange type | Semi-Lug (Wafer) |
| Nominal pressure | Up to 2.0 MPa |
| Operating temperature | Up to 120 °C |
| Flow direction | Bidirectional |
| Flow characteristic | Quick-opening |
| Pneumatic actuator working fluid | Purified compressed air, oil mist-free |
| Flange connection standards | JB, GB, HG, ANSI, DIN |
Installation and Maintenance of the Direct-Acting Knife Valve
Before installing this valve, it is advisable to follow some key recommendations. For example:
- Coaxiality verification: additionally, the pipes before and after the valve must be aligned, with the flange faces parallel to each other.
- Line purging: likewise, it is necessary to clean oil, welding residues, and other contaminants from the pipe before installing the valve.
- Cross-tightening of flanges: likewise, the bolts must be tightened diagonally and progressively, never from one side at a time, to prevent leaks.
- Weekly lubrication: therefore, the stem, stem nut, and bearings must be lubricated once a week to ensure smooth opening and closing.
- Pneumatic actuator maintenance: finally, the supply air must be kept clean and dry, and the filter must be drained regularly.
Applications of the Direct-Acting Knife Valve
Thanks to its bidirectional design and resistance to abrasive media, this valve is specified in numerous heavy industries. For example:
- Mining: additionally, it isolates tailings lines and high-density mineral slurries without flow obstruction.
- Steel industry: likewise, it controls media with solid particles in steel production processes.
- Coal-fired power plants: likewise, it is used in ash removal systems, where abrasion is constant.
- Purification equipment: finally, it isolates process lines with suspended solids in treatment systems.
- Paper industry: additionally, it controls the flow of cellulose pulp without obstructions in the internal cavity.
- Sugar and food industry: likewise, it handles powdered, crystalline, and granular materials in pneumatic conveying lines.
If your process is water, slurries, or neutral pH wastewater and does not require the diameter range of this valve, consult our GGG40 knife valve with Semi-Lug (Wafer) flanges and EPDM seat. To view the complete catalog, visit Cematic Knife Valves.
