CPVC Socket Ball Valve | High Temperature

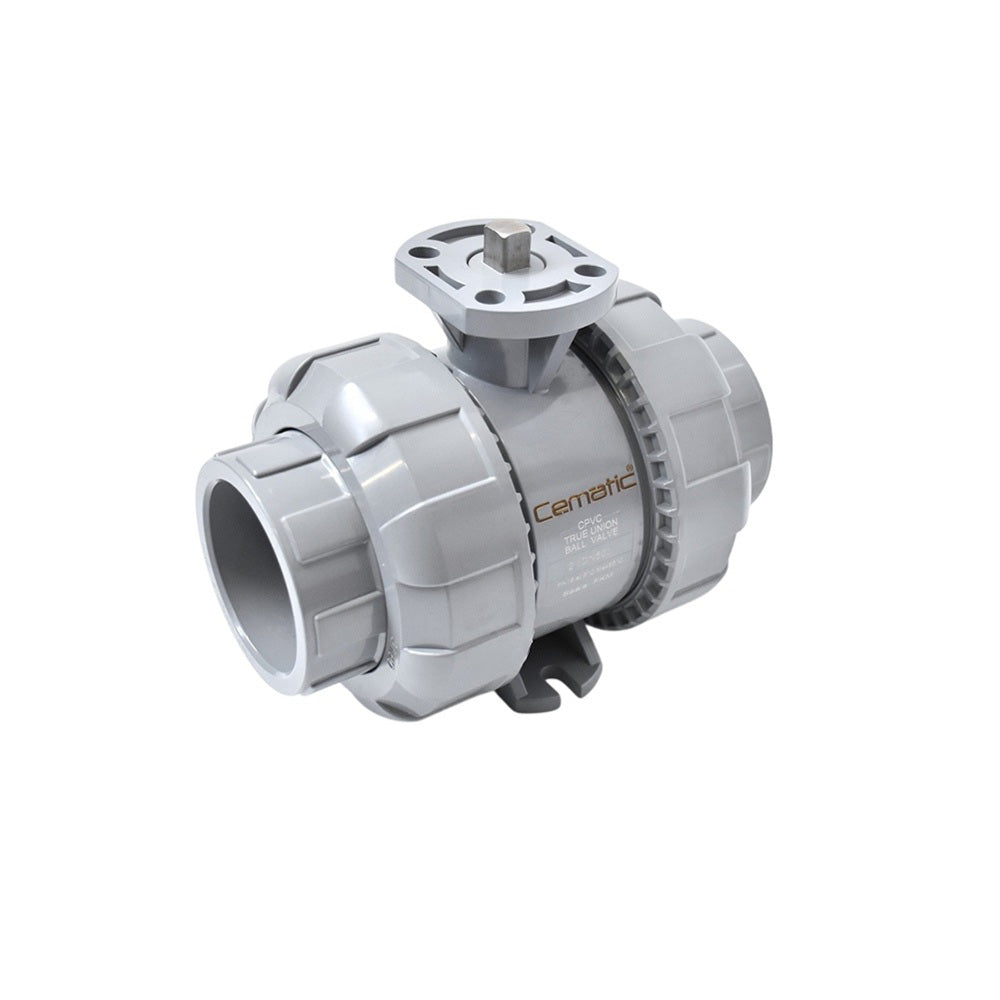

The Cematic® CPVC socket ball valve is the ideal solution for fluid control in plastic piping systems operating at high temperatures and in chemically aggressive environments. Its socket connection allows for a firm and tight joint directly on the CPVC pipe, without the need for threads or flanges.

Additionally, it includes an ISO 5211 mounting pad for installing a pneumatic or electric actuator when the process requires it. For this reason, it is one of the most versatile valves for industrial plastic installations.

Thanks to its Viton seat, the CPVC socket ball valve offers excellent chemical resistance and reliable tight shut-off at temperatures up to 95°C. Therefore, it is the preferred choice in hot water systems, chemical processes, and industrial applications where metallic valves are not suitable.

In particular, it stands out in installations where fluid purity and corrosion resistance are priorities.

Technical specifications of the CPVC socket ball valve

• Material: CPVC
• Seat: Viton
• Connection: Socket
• Sizes: 1/2" to 4" / 20 mm to 110 mm / DN15 to DN100
• Standards: ANSI, DIN, JIS
• Working pressure: 150 PSI
• Working temperature: 0°C to 95°C
• Mounting: ISO 5211 pad for pneumatic or electric actuator

Applications of the CPVC socket ball valve

The CPVC socket ball valve is suitable for plastic piping systems in various industries. Below are its main applications.

Chemical Industry: Controls aggressive chemical fluids where metallic valves encounter corrosion problems. Additionally, its Viton seat guarantees compatibility with a wide variety of chemicals. This way, it offers a reliable and economical solution compared to valves made of special materials.

Hot Water Systems: The CPVC socket ball valve regulates hot water flow in industrial and process systems. Thanks to its working temperature of up to 95°C, it operates reliably in high-temperature conditions. In other words, it covers applications where conventional UPVC is not sufficient.

Water and Wastewater Treatment: The CPVC socket ball valve controls flow in treatment plants where corrosive fluids or those with chemical additives are handled. Therefore, it is frequently specified in dosing and distribution systems for treated water.

Other applications of the CPVC socket ball valve

Food and Pharmaceutical Industry: Its CPVC construction makes it suitable for processes where metallic contamination needs to be avoided. Likewise, it meets purity requirements in food contact and pharmaceutical applications.

Irrigation and Agriculture Systems: Regulates the flow of water and fertilizer solutions in technified irrigation systems. Consequently, its chemical resistance and low weight facilitate installation and maintenance in the field. Therefore, it is a practical and economical option for large-scale agricultural installations.

Semiconductor Industry: Offers high chemical purity for fluid handling in manufacturing processes that require non-metallic materials. This prevents fluid contamination in highly demanding environments.

Main advantages:

• Socket connection directly onto CPVC pipe
• Viton seat for high chemical and temperature resistance
• Withstands up to 150 PSI and 95°C temperature
• ISO 5211 pad included for installing pneumatic or electric actuator
• Available in sizes from 1/2" to 4"
• Complies with ANSI, DIN, and JIS standards
