Special 2- and 3-Way Control Valves — Duplex, Titanium, and WCB, -196°C to 565°C, up to 2500LB, Pneumatic Actuator
Cematic's special control valves are the solution for industrial processes where standard control valves cannot meet the required pressure, temperature, or chemical resistance limits. Unlike conventional catalog models, these valves are specified with materials and configurations selected according to the exact process conditions — including duplex steel, titanium, and bronze alongside standard stainless steels.
Their pressure range up to 2500LB and temperature range from -196°C to 565°C also make them suitable for the most demanding services in the heavy process industry: petrochemical, nuclear power generation, oil & gas, and high-demand industrial chemistry.
Cematic delivers the complete assembly — body, actuator, and positioner — assembled, calibrated, and tested before shipping.
Why these valves are specified when standard ones are not sufficient
Special control valves cover cases where the pressure, temperature, or fluid exceeds the limits of conventional models. The criteria that lead to specifying a special valve instead of a standard one are described below, as incorrect selection can compromise process safety:
- Pressure above 600LB — since standard models do not cover that range: Conventional control valves go up to class 600LB. When the process operates at classes 900LB, 1500LB, or 2500LB, it is necessary to specify a higher pressure class valve with a thicker body and reinforced trim.
- Temperature above 450°C or cryogenic below -46°C: The range from -196°C to 565°C covers both cryogenic services — liquefied gases, liquid nitrogen — and high-pressure superheated steam. At both extremes, special alloy steels are required, since standard materials do not maintain their mechanical properties.
- Highly aggressive chemical fluids — when standard stainless steels are insufficient: When the fluid attacks SS316, duplex steel or titanium materials are the correct specification. Duplex steel offers greater resistance to chloride corrosion than SS316. Titanium, likewise, is the correct material for oxidizing acids and fluids where stainless steel exhibits corrosion.
- Special regulatory requirements — NACE, nuclear, or cryogenic: Some processes require materials certified according to specific standards — NACE MR0175 for H₂S service, nuclear standards for power plants, or cryogenic standards for liquefied gases. Consequently, the body and trim must be certified under those standards as well as the process requirements.
Diaphragm vs. piston pneumatic actuator — when to use each type
The type of actuator determines the force available to position the valve against the process differential pressure. The correct selection is fundamental, since an undersized actuator cannot position the valve correctly across the entire operating range:
- Diaphragm — standard option for precise control and low air consumption: The diaphragm actuator offers a linear response proportional to the positioner signal. It is the standard option for small and medium diameter valves where the differential pressure does not exceed the diaphragm's capacity. Likewise, its simple design provides lower maintenance and greater reliability over time.
- Piston — correct option for high differential pressure or large diameters: The piston actuator generates greater force than the diaphragm actuator for the same size, therefore it is the correct option when the process differential pressure or the valve diameter exceeds the diaphragm's capacity. It is also the standard for valves from class 900LB to 2500LB where the required force is greater.
Positioner — options according to the level of integration with the control system
The positioner is the component that translates the controller signal into a valve position. It is available in three levels of functionality, since diagnostic and communication needs vary according to the process:
- Pneumatic — for systems without an electrical signal available in the field: The pneumatic positioner receives a pneumatic signal from the controller and adjusts the pressure to the actuator. It is the correct option in classified areas where electrical signals are not allowed even if the process requires precise positioning.
- Electro-pneumatic — standard with 4-20 mA signal: It receives a 4-20 mA electrical signal from the PLC or DCS and converts it to a pneumatic signal for the actuator. It is the most specified positioner, since it covers most process control applications with a standard signal.

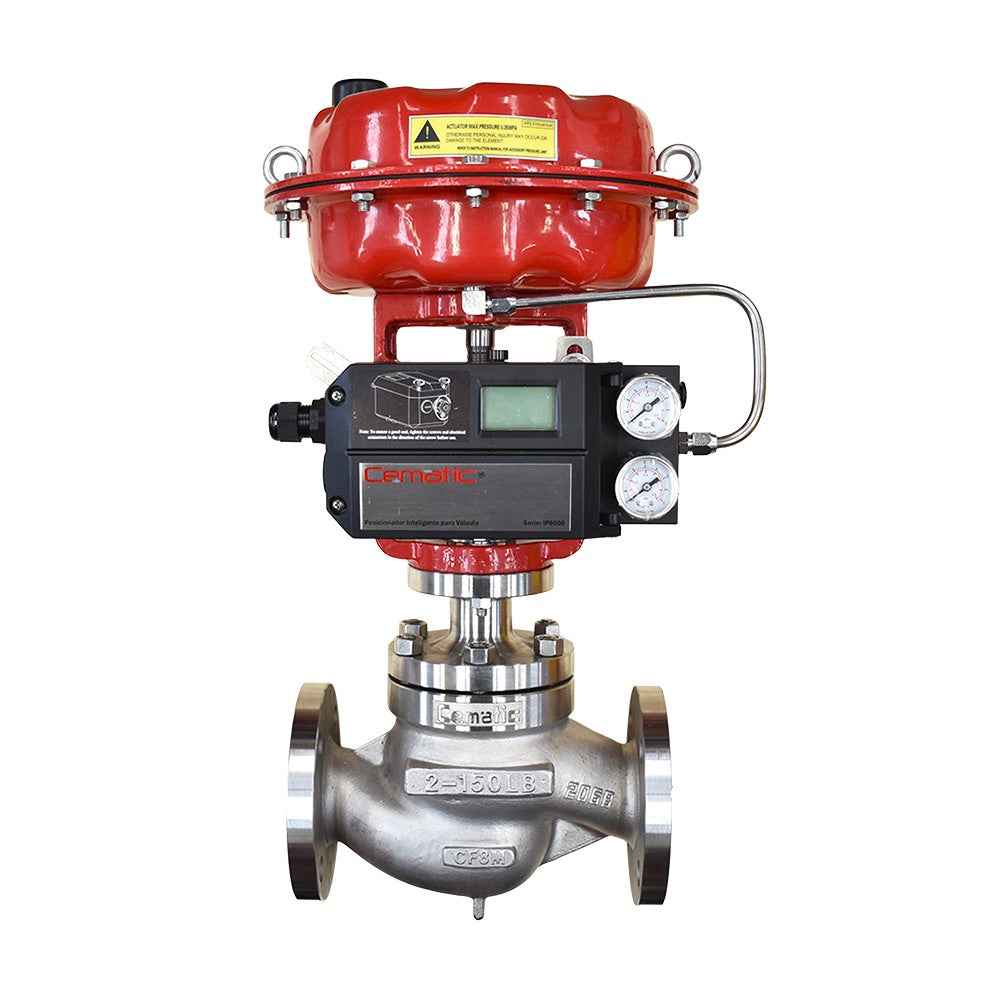

- Smart — for advanced diagnostics and digital communication: In addition to the positioning function, the smart positioner transmits assembly diagnostic data to the control system — actual position, hysteresis, valve signature. Therefore, it is the correct option in plants operating with predictive maintenance based on positioner data.
Body materials available according to the fluid and process conditions
| Body material | Standard | Max temperature | Main fluid — when it is the correct option |
|---|---|---|---|
| WCB — carbon steel | A216 WCB | +425 °C | Steam, petroleum, natural gas — the most economical for general services, although limited to +425°C |
| WC6 — Cr-Mo alloy steel | A216 WC6 | +565 °C | Superheated steam up to +565°C — correct option when WCB is insufficient |
| LCB — low-temperature steel | A352 LCB | -46 °C min. | Cryogenic service — liquefied gases where WCB becomes brittle, since it loses toughness |
| CF8 — cast SS304 | A351 CF8 | +425 °C | Aqueous fluids and water without chlorides — first choice when stainless steel is required and the fluid does not have high chloride levels |
| CF8M — cast SS316 | A351 CF8M | +425 °C | Fluids with moderate chlorides — correct option when CF8 is insufficient due to chlorides |
| Duplex steel | Per spec | +300 °C | High resistance to chlorides — first choice in seawater and brines, since it outperforms SS316 |
| Titanium | Per spec | +300 °C | Oxidizing acids — correct option since no standard stainless steel resists those fluids |
| Bronze | Per spec | +200 °C | Seawater and potable water — also suitable for non-oxidizing fluids with anti-corrosion requirements |
General technical specifications — special control valves
| Parameter | Value |
|---|---|

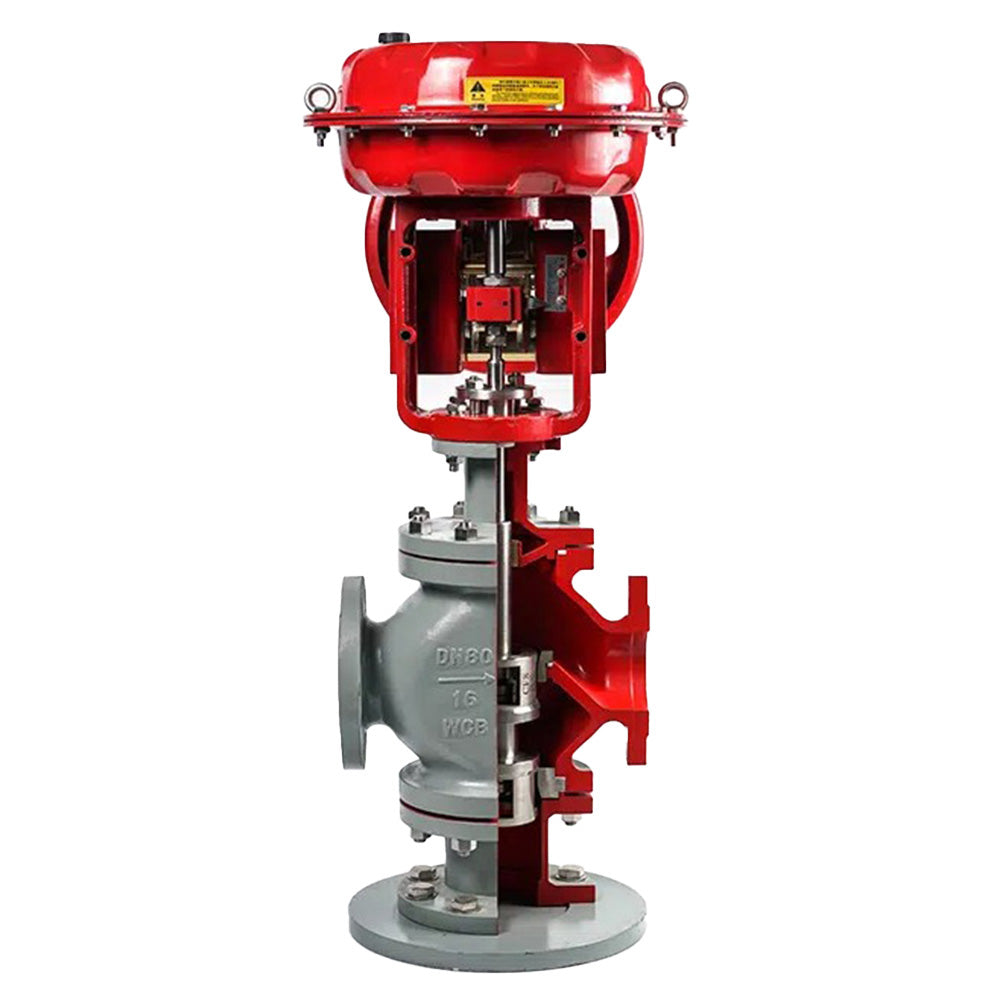

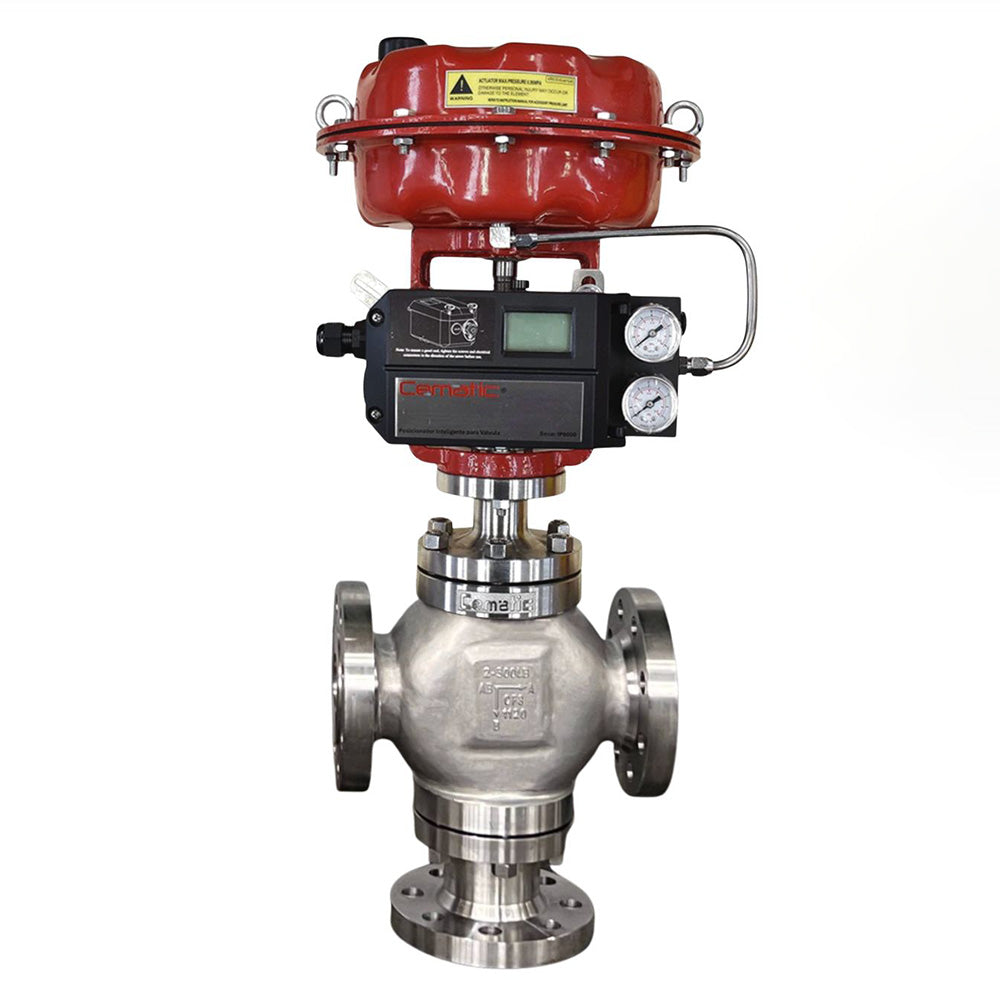

| Configuration | 2-way (straight through) or 3-way (mixing/diverting) |
| Nominal pressure | ANSI Class 150LB to 2500LB |
| Minimum temperature | -196 °C (cryogenic with LCB or duplex body) |
| Maximum temperature | +565 °C (with WC6 body and graphite packing) |
| Connection | RF, FF, RTJ, or LG flange — ANSI B16.5, JIS B2201 |
| Stem packing | Graphite or PTFE — according to fluid and temperature |
| Pneumatic actuator | Diaphragm (standard) or piston (high pressure) |
| Positioner | Pneumatic, electro-pneumatic, or smart |
| Positioner signal | 4–20 mA (electro-pneumatic and smart) |
Special valves vs. standard control valves — comparison table to select the correct one
| Criterion | Standard control valve | Special control valve ← This product |
|---|---|---|
| Maximum pressure | Up to class 600LB — sufficient for most industrial processes | ✅ Up to class 2500LB — for high-pressure processes where 600LB is not sufficient |
| Maximum temperature | Up to +450°C — sufficient for most heavy process processes | ✅ Up to +565°C with WC6 — for superheated steam in power generation |
| Minimum temperature | Down to -46°C — sufficient for moderate cryogenic services but not for LNG | ✅ Down to -196°C — for cryogenic service with liquefied gases |
| Body materials | WCB, CF8, CF8M — for standard fluids where special materials are not required | ✅ Also: duplex, titanium, and bronze for highly corrosive fluids |
| Smart positioner | ⚠️ Not always available — can be requested as an option on some standard models | ✅ Available — also transmits diagnostics to the control system |
| Relative cost | ✅ Lower — justified when the process does not require special materials or pressures | Higher — justified, since it covers conditions that standard models cannot reach |
Fluid compatibility — since the body material determines chemical resistance
- ✅ Superheated steam up to 565 °C — with WC6 body and graphite packing, since WCB is insufficient at that temperature
- ✅ Liquefied gases and cryogenic service down to -196 °C — with duplex or low-temperature LCB body
- ✅ Oxidizing acids and highly corrosive fluids — with titanium body and trim, since no standard stainless steel resists those fluids
- ✅ Seawater and brines with high chloride concentration — with duplex body, since it outperforms SS316 in pitting corrosion resistance
- ✅ Crude oil, natural gas, and condensates with H₂S — with NACE MR0175 materials even if additional certification is required
- ✅ Nuclear process fluids — with specific nuclear industry materials and certifications
- ⚠️ Fluids with special certification requirements — NACE, nuclear, pharmaceutical — consult the Cematic technical team for correct specification
- ❌ Concentrated acids without suitable material — specify titanium or special materials; the Cematic technical team can size them at no cost
Main applications of special control valves in the heavy process industry
- Petrochemical and refining where pressure and corrosion require special materials: They regulate the flow of hydrocarbons, process acids, and corrosive fluids in distillation, cracking, and reforming units. Duplex steel or titanium cover the most aggressive fluids where SS316 would exhibit corrosion. Therefore, they are the correct specification in the most chemically demanding process units.
- Nuclear and conventional power generation where superheated steam requires class 900LB to 2500LB: They regulate high-pressure steam in turbine feed lines and boiler systems. The WC6 body with graphite packing also covers superheated steam up to 565°C that standard catalog models cannot reach.
- They are the correct option in the main high-pressure steam lines in combined cycle and nuclear plants.
Highly specialized applications where titanium, duplex, or NACE materials are the only option
- Offshore oil & gas where seawater and H₂S require duplex or NACE: On offshore platforms, duplex steel resists seawater and chlorides without pitting corrosion. NACE MR0175 materials likewise cover H₂S services at concentrations that would cause SSC in standard stainless steels.
- Therefore, they are the standard component in offshore gas and oil production control systems.
- Cryogenic processes where the temperature of -196°C rules out standard materials: In natural gas liquefaction (LNG) plants, air separation, and cryogenic gas storage, low-temperature materials maintain their toughness where WCB becomes brittle. Since the brittleness of carbon steel at those temperatures is a catastrophic failure risk, duplex steel or LCB are the only acceptable materials.
- Chemical industry with fluids that attack SS316 and require titanium: In plants processing oxidizing acids, highly corrosive mixtures, or toxic fluids, titanium is the only option when standard stainless steels exhibit corrosion. The pneumatic actuator is also intrinsically safe in those environments by not requiring an electrical signal at the actuator. Consequently, they are the correct solution when the chemical compatibility of SS316 is insufficient.
To size the correct valve for your process, see contact Cematic technical support → or use the Cv Calculator →
