Stainless Steel 316 Globe Control Valve — ANSI 150 Flange with Pneumatic Actuator and 4–20 mA Positioner

The SS316 globe control valve with ANSI 150 flange is the most precise proportional control component for flow, temperature, and pressure control loops in the process industry. Unlike automated ball or butterfly valves — which operate in ON/OFF mode or have non-linear flow characteristics at intermediate positions — the globe valve is specifically designed for continuous modulating control: its linear-moving plug over the seat generates a predictable and repeatable flow characteristic that the controller's PID algorithm can accurately follow.

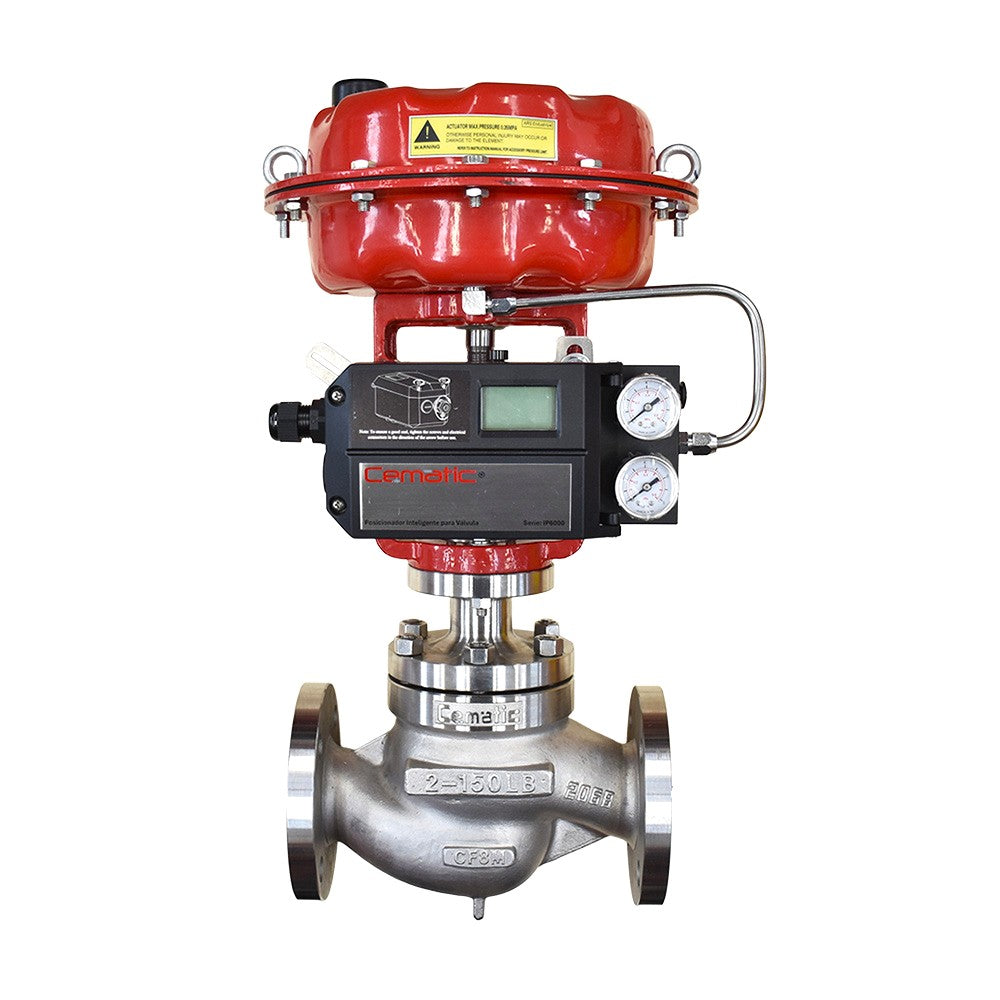

The assembly includes an SS316 globe body with ANSI 150 flanges, a pneumatic diaphragm and spring actuator, and an electropneumatic positioner with a 4–20 mA signal input — all assembled, calibrated, and workshop-tested by Cematic before shipment.

Why globe valve and not ball or butterfly valve for control

Selecting the correct valve type for a PID control loop is critical for control stability and accuracy:

• Inherent linear or equal percentage flow characteristic: The globe valve has a predictable relationship between plug position and flow rate — either linear (proportional increase in Cv with stroke) or equal percentage (constant percentage increase in Cv with each stroke increment). This characteristic allows the PID controller to calculate the correct control action without discontinuities or flow jumps.
• Linear plug movement: The diaphragm actuator moves the plug in a straight line over the seat — without the variable friction torque of a quarter-turn ball, without the hysteresis of a butterfly gear. The positioner can locate the plug at any position in the stroke with high repeatability.
• High rangeability: The globe valve maintains precise control from 5% to 95% open — a range of 10:1 or 50:1 in special models. Quarter-turn ball valves have an effective rangeability of 3:1 to 5:1 for stable proportional control.
• No dead zones at intermediate positions: In partially open positions, the ball generates turbulence and noise at the PTFE seat — wear that leads to loss of repeatability over time. The globe operates in all stroke positions without destructive turbulence at the seat.

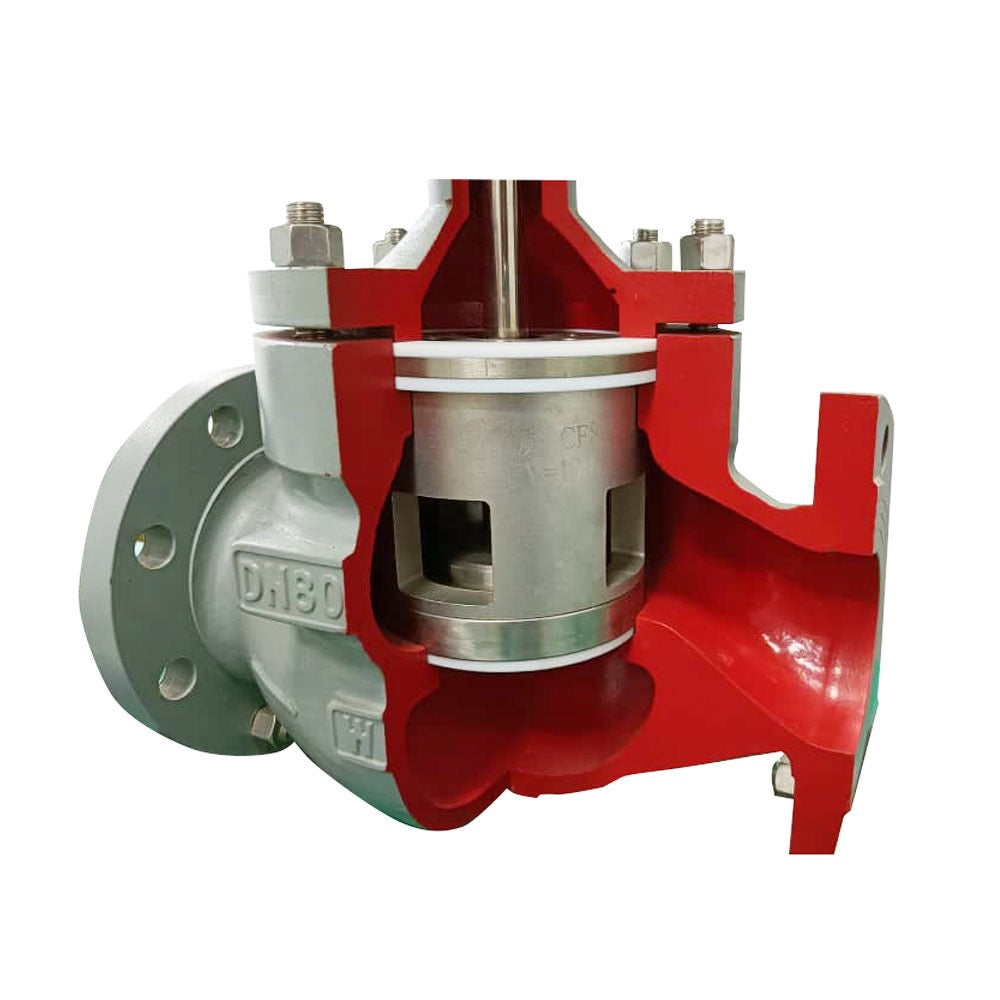

Construction materials

• Body: Stainless steel SS316 (CF8M cast) — corrosion resistance for seawater, saline solutions, dilute acids, alkalis, and general process fluids
• Plug: Stainless steel SS316 with calibrated contour profile for the selected flow characteristic (linear or equal percentage)
• Seat: Stainless steel SS316 — long-lasting metal-to-metal sealing
• Stem: Stainless steel SS316 with PTFE or graphite packing depending on temperature
• Connection: ANSI 150 flanges — face-to-face according to ASME B16.10 Series 1
• Actuator: Pneumatic diaphragm and spring — linear movement proportional to the positioner's signal pressure. Fail-safe by spring (fail-close or fail-open depending on configuration)
• Positioner: Electropneumatic with 4–20 mA input — converts the analog signal from the PID controller into signal pressure to the actuator to precisely position the plug

Technical specifications

• Type: Straight-through globe, linear movement
• Connection: ANSI 150 flanges — drilling ASME B16.5
• Body material: SS316 (CF8M)
• Nominal diameters: DN15 (½") to DN150 (6") — most common in process control loops
• Nominal pressure: ANSI 150 — up to 19.6 bar at ambient temperature
• Operating temperature: -29 °C to +230 °C with PTFE packing; up to +450 °C with graphite
• Flow characteristic: Linear or equal percentage depending on model — specify when ordering
• Positioner input signal: 4–20 mA standard; compatible with PID controllers, DCS, and SCADA systems
• Actuator action: Air opens / spring closes (AO/FC — fail close) standard; spring opens / air closes (AC/FO — fail open) available
• Air supply pressure: 2–6 bar to the positioner
• Position feedback: 4–20 mA feedback signal available on models with feedback positioner
• Design standard: IEC 60534 (process control valves)
• Factory test: Leak test and full stroke functional test with 4–20 mA signal

Flow coefficient Cv by diameter

Cv is the flow rate in gallons per minute (GPM) of water at 60 °F that passes through the valve with a 1 psi pressure drop in the fully open position. Use this value as a reference to verify that the selected diameter is correct for your process flow rate — the normal operating Cv should be between 20% and 80% of the valve's maximum Cv to ensure control stability throughout the range.

Need to calculate the required Cv for your process? Share the fluid, operating flow rate, and upstream and downstream pressures — our technical team will size the correct diameter free of charge. Consult via WhatsApp →

Fail-safe — fail-close vs. fail-open

The fail-safe position is the valve's behavior when air supply or the 4–20 mA signal from the controller is lost:

• Fail-Close (FC) — Air Opens, Spring Closes: The actuator spring closes the valve upon loss of air or signal. The correct configuration when fluid cutoff is the safe state in an emergency — dosing hazardous reagents, feeding reactors, process safety systems.
• Fail-Open (FO) — Spring Opens, Air Closes: The actuator spring opens the valve upon loss of air or signal. Correct when continuous flow is the safe state — critical cooling water to equipment, machinery lubrication, emergency ventilation.

Flow characteristic — linear vs. equal percentage

The inherent flow characteristic determines how the flow coefficient Cv varies with plug position — and therefore how the PID controller should be configured:

• Linear: Cv increases proportionally with plug stroke. For every 10% increase in opening, Cv increases by the same absolute percentage. Correct when the pressure drop across the valve is approximately constant throughout the control range — systems with variable speed pumps, constant pressure circuits.
• Equal Percentage: Cv increases proportionally in relative terms — each stroke increment increases Cv by the same percentage of the current Cv. The result is more sensitive control at low openings and more stable control at high openings. Correct in most process systems where the pressure drop across the valve varies with flow rate — the most frequent characteristic in temperature and pressure loops.

Not sure which flow characteristic is correct for your loop? Our technical team can review the process conditions and recommend the correct characteristic and Cv free of charge.

Main applications

• Temperature control in heat exchangers: The most frequent application of the SS316 ANSI 150 globe valve in the Mexican industry. Regulation of steam, hot water, or service fluid flow on the shell side of the exchanger to maintain process temperature at the PID controller's setpoint.
• Flow control in process lines: Proportional regulation of reagent, process water, chemical solutions, and process fluid flow in flow control loops with Coriolis, electromagnetic, or differential pressure flow transmitters.
• Pressure control in distribution systems: Regulation of downstream pressure in steam, hot water, and process fluid distribution networks using a PID control loop with a pressure transmitter.
• Precise reagent dosing: Control of the addition rate of treatment reagents (coagulants, flocculants, pH-adjusting acids and bases) in water treatment plants and industrial processes where dosing accuracy directly impacts treatment quality.
• Level control in tanks: Regulation of inlet or outlet flow in storage tanks and reactors to maintain level at the setpoint — level control loop with differential pressure or ultrasonic level transmitter.
• Chemical and petrochemical industry: Temperature, pressure, and flow control loops in continuous reactors and distillation columns. SS316 covers chemical compatibility for most process fluids in these industries.
• Food and pharmaceutical industry — auxiliary services: Control of heating steam in pasteurizers, sterilizers, and process reactors. SS316 with ANSI 150 flange is the standard for these services in the plant's utility area.

Cv selection — how Cematic sizes the valve

The flow coefficient Cv is the most important sizing parameter for a control valve — it defines the flow rate the valve can pass at a given pressure drop. An oversized valve operates at the first degrees of opening where control is unstable; an undersized valve cannot achieve the required maximum flow rate. Cematic calculates the correct Cv with process data:

• Fluid (liquid, steam, or gas), operating temperature and pressure
• Minimum and maximum operating flow rate
• Upstream and downstream pressure of the valve
• Density or specific gravity of the fluid at operating temperature

Share this data via WhatsApp or to ventas@cematic.com — we will size the Cv and confirm the correct model free of charge before quoting.

For the complete category of control valves, see Cematic Control Valves →
