When it comes to controlling fluid flow in industrial systems, choosing the right type of valve can make a big difference in the performance, cost, and lifespan of your facilities.

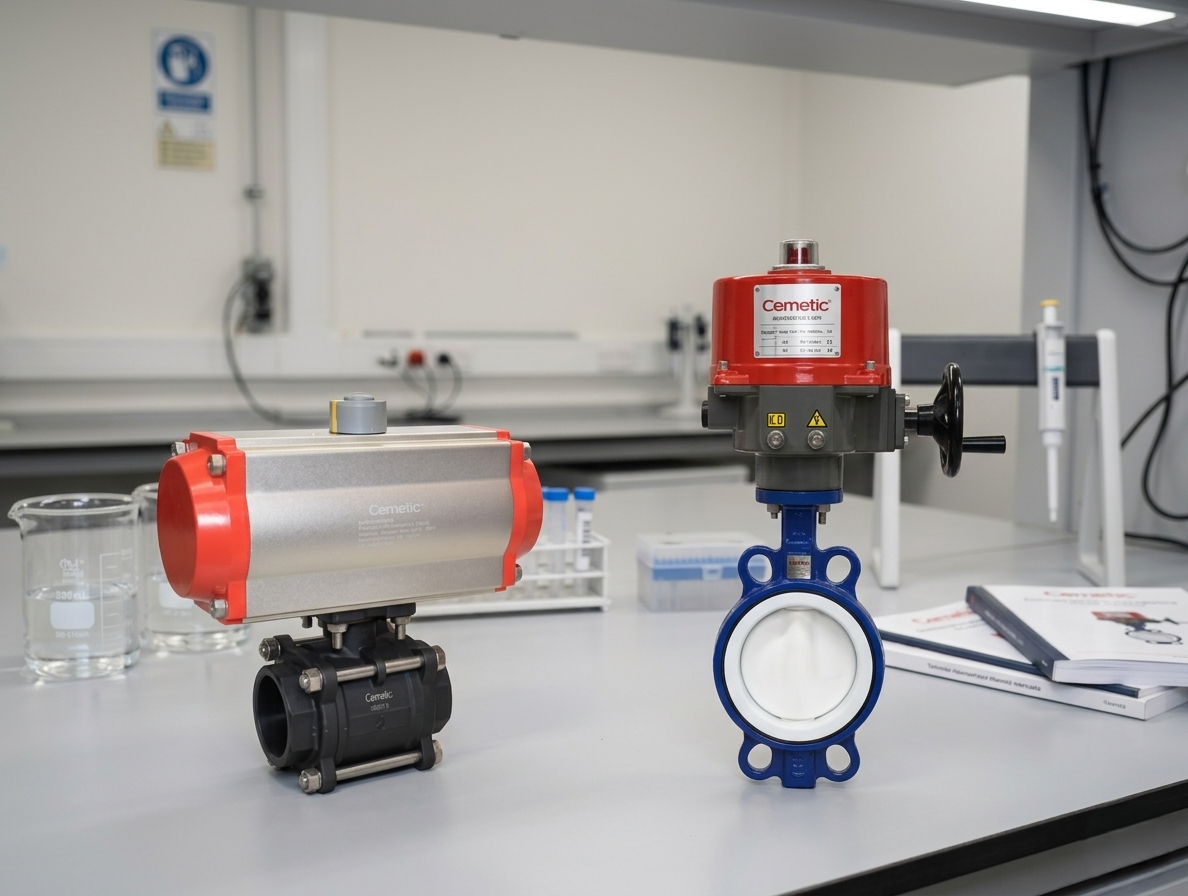

Among the most popular options on the market are ball valves and butterfly valves. Although both serve similar functions, their differences are significant and should be understood before making a purchasing decision.

How does each one work?

The ball valve operates using a solid sphere with a central bore that, when rotated 90°, allows or stops the flow of fluid. When the bore is aligned with the pipe, the flow circulates freely; when rotated 90°, the passage is completely blocked. This simple mechanism makes it one of the most reliable shut-off valves on the market.

The butterfly valve, on the other hand, uses a flat disc mounted on a central shaft inside the pipe. By rotating this disc, the fluid flow is regulated. It is a compact and lightweight design that takes up much less space than other valves of comparable size.

Main differences

1. Sealing and tightness

Ball valves offer virtually perfect sealing. They are the preferred option when an absolute shut-off of flow is required, as they present virtually no leakage when closed. Butterfly valves, depending on the type of seat (resilient or metallic), may have slightly inferior sealing, although high-quality models achieve excellent results under standard conditions.

2. Size and weight

Here the butterfly valve has an advantage. Thanks to its slim and compact design, it is much lighter and takes up less space in the line. This makes it ideal in installations where space is limited or where large diameters are used (above 3 or 4 inches), as a large-diameter ball valve can be considerably more expensive and heavier.

3. Flow control

Although both valves can be used to regulate flow, the butterfly valve has a greater advantage in applications where continuous modulation is required. The ball valve is more suitable for on/off operations, although there are ball versions with V-ports designed for more precise flow control.

4. Maintenance and durability

Ball valves, having fewer components exposed to the fluid, usually require less maintenance and have a long service life even in demanding conditions. Butterfly valves, while also robust, may require more frequent inspection of the disc seals, especially in fluids with solid particles or abrasives.

5. Cost

In small and medium diameters, ball and butterfly valves have competitive prices. However, from certain diameters (generally from 3" upwards), butterfly valves become noticeably more economical, which can represent significant savings in large-scale projects.

When to choose a ball valve?

• Applications requiring full shut-off and tight sealing
• Systems with clean fluids, natural gas, steam, or aggressive chemicals

• Processes where opening and closing speed is critical
• Environments where maintenance must be minimal

When to choose a butterfly valve?

• Installations with large diameter pipes where weight and cost are key factors
• Potable water, cooling water, or low-pressure fluid systems
• Applications requiring flow regulation or modulation
• Reduced physical spaces where compact size is an advantage

Conclusion

There is no "universally better" valve. The choice between a ball valve and a butterfly valve depends on the specific requirements of each application: the type of fluid, working pressure, pipe diameter, type of operation, and available budget.

At Válvulas Cematic, we offer both product lines, with options for various industries and operating conditions. Our technical team is available to advise you and help you select the ideal valve for your project.

Do you have questions about which valve you need? Contact us and we will gladly assist you.
