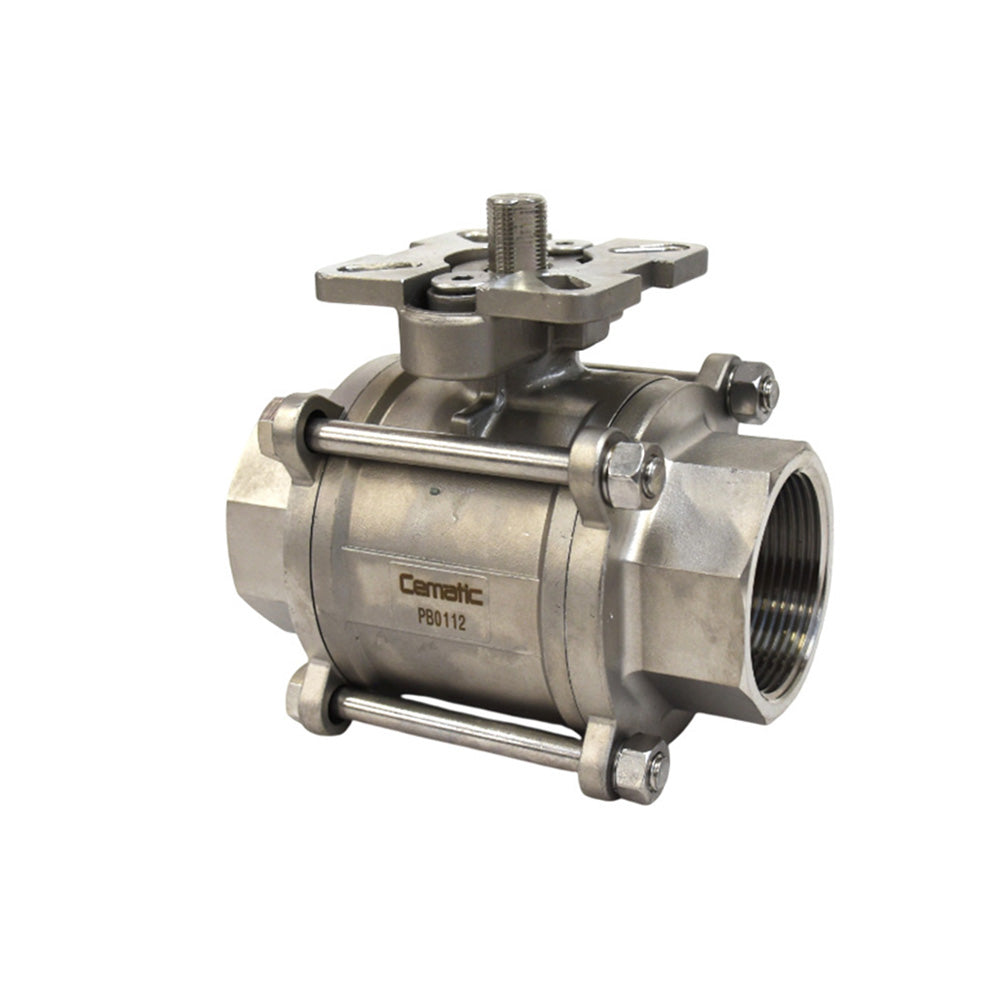

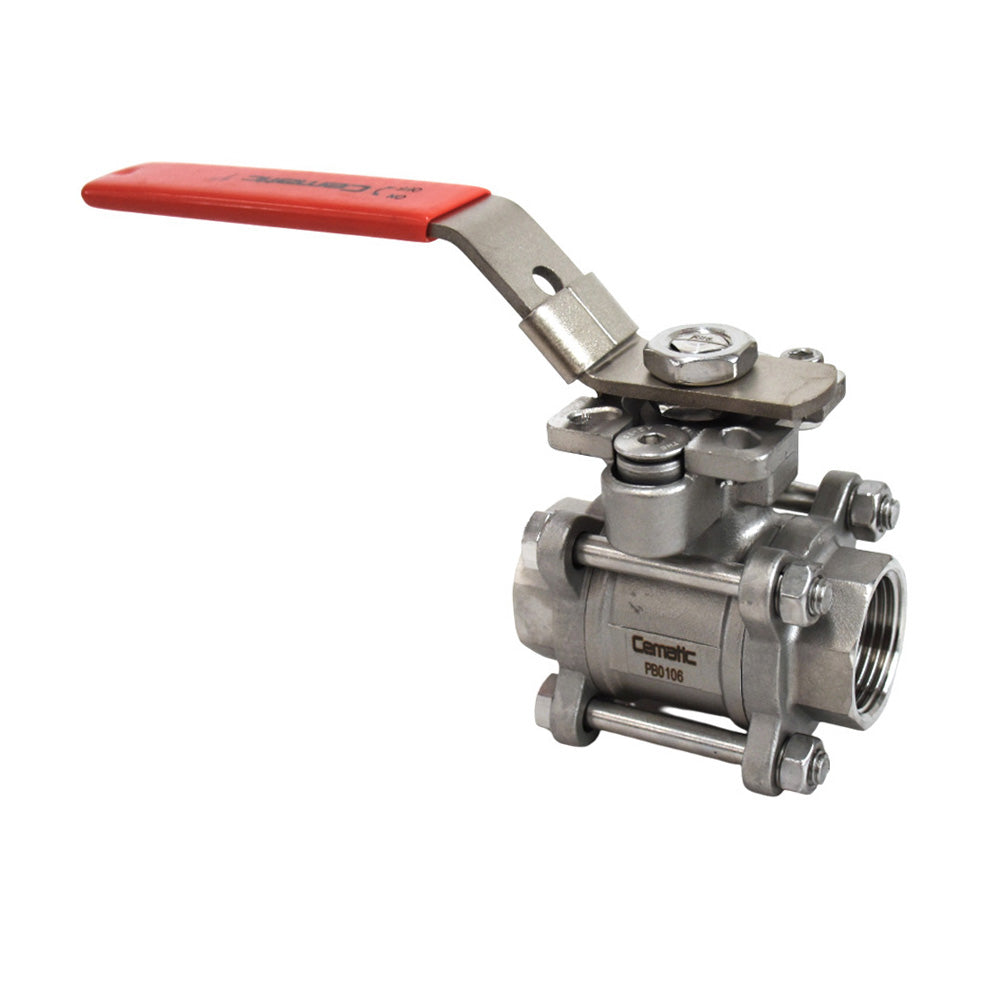

316 Stainless Steel Ball Valve — NPT Thread, Three-Piece, PTFE or RPTFE Seat

The three-piece SS316 ball valve with NPT thread is the most versatile isolation component for industrial installations in diameters from ½" to 3": complete bubble-tight shutoff in a 90° turn, corrosion resistance of SS316 for seawater, moderate chemicals, industrial gases, and general process, direct installation by threading onto pipe or equipment with standard NPT thread, and a three-piece design that allows full access to the valve's interior for inspection, cleaning, or seat replacement without removing it from the line.

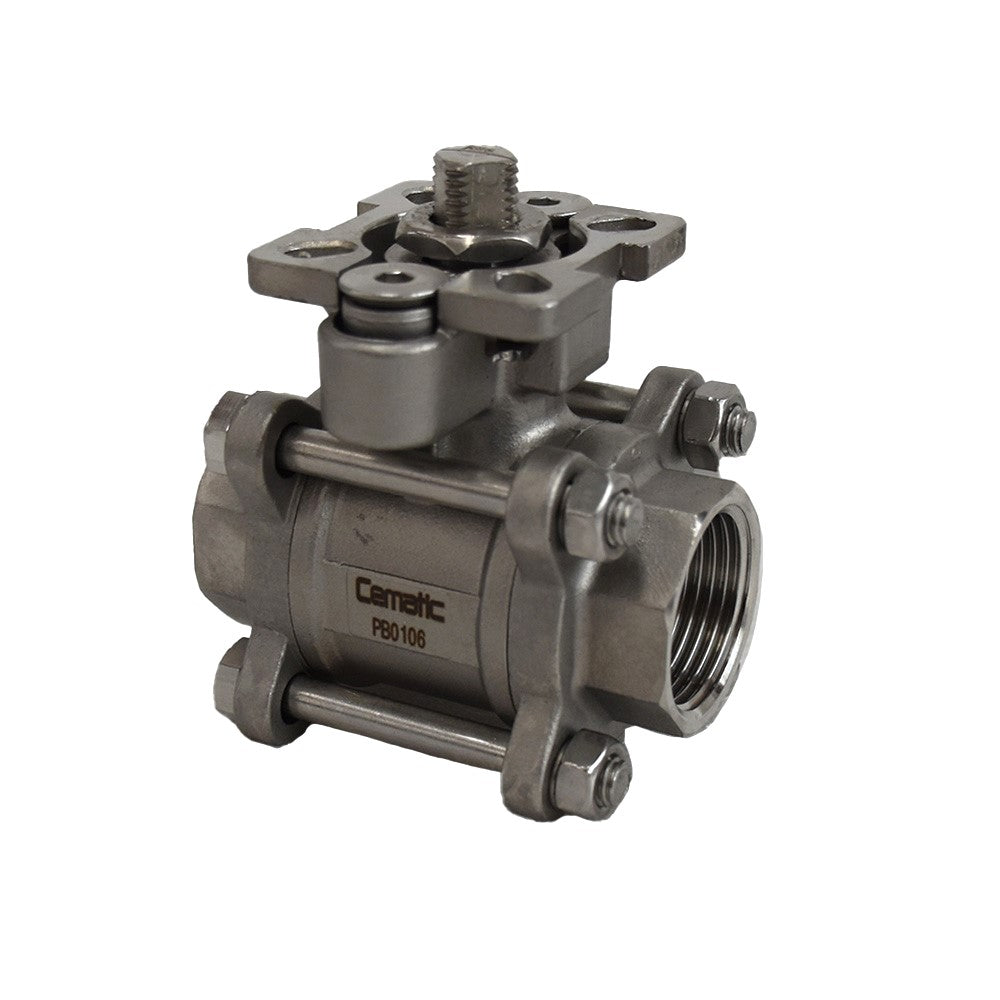

The integrated ISO 5211 mounting pad on all models ensures direct compatibility with any quarter-turn pneumatic or electric actuator on the market — no adapters or mechanical modifications needed.

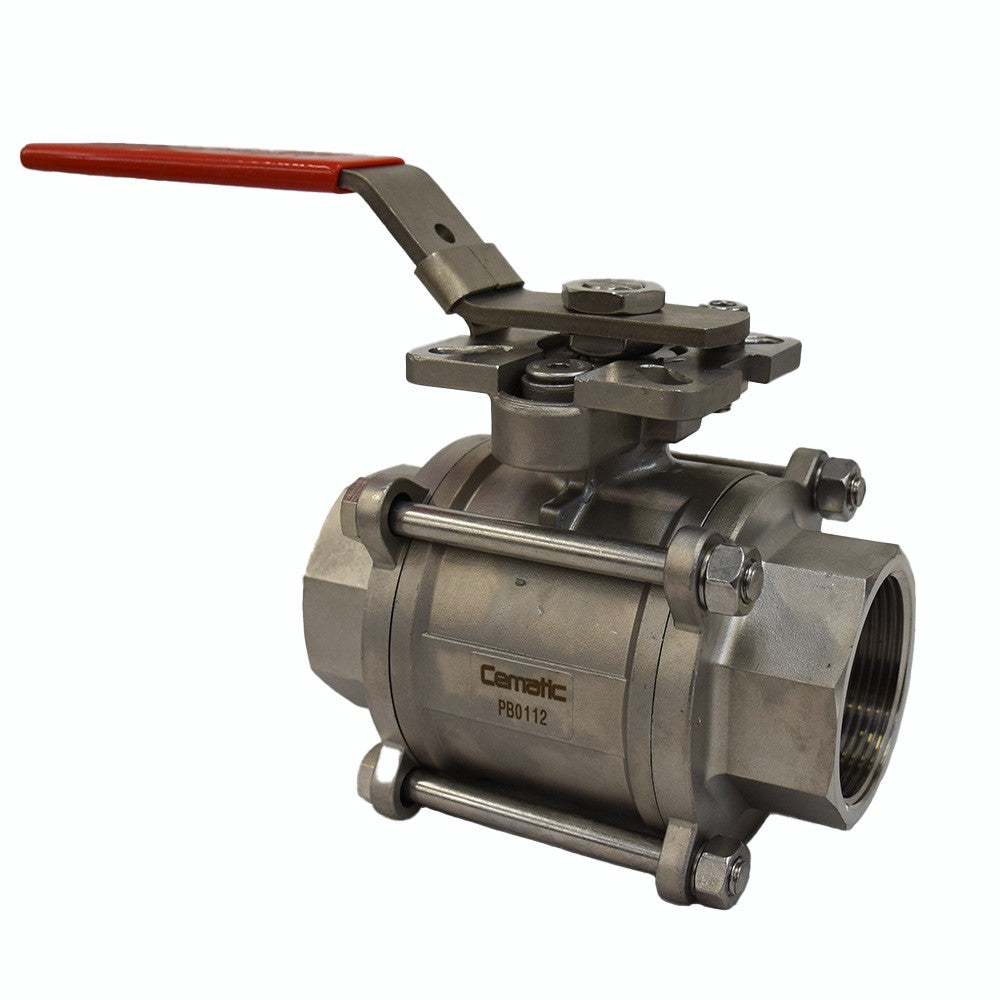

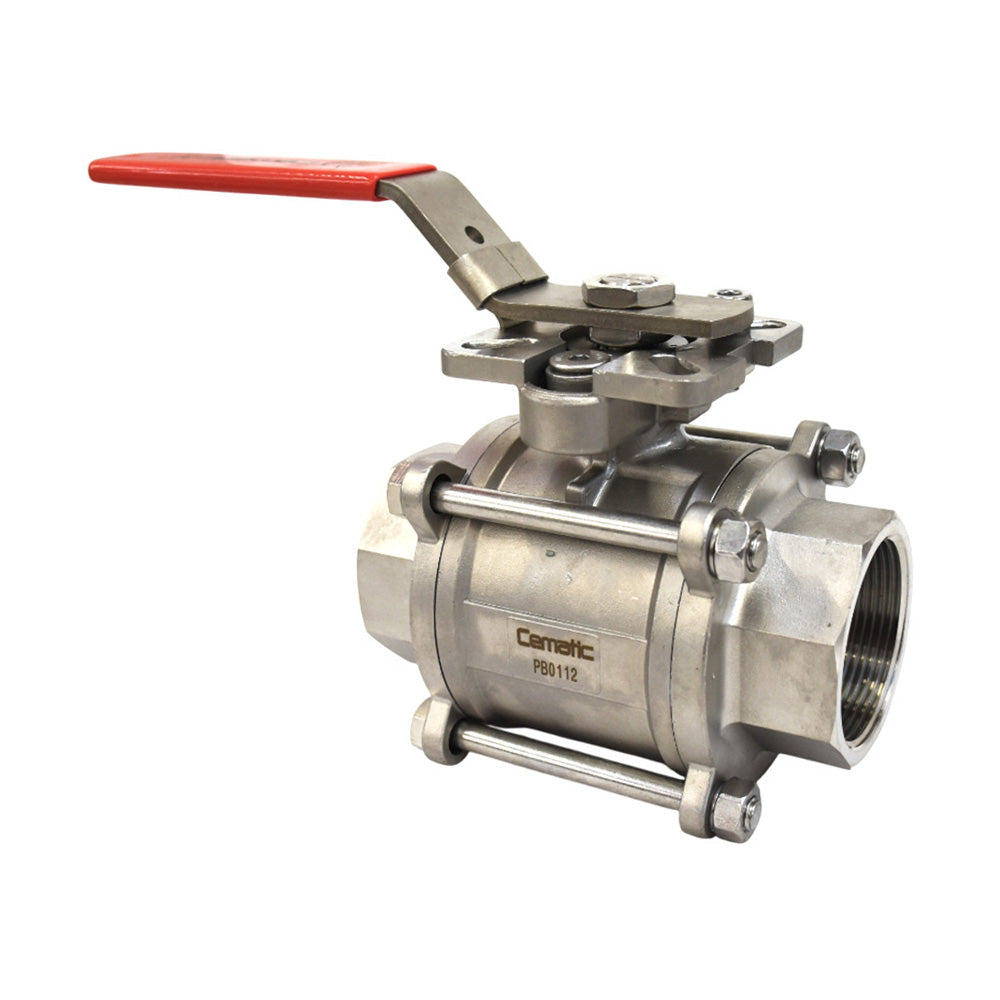

The advantage of the three-piece design in threaded valves

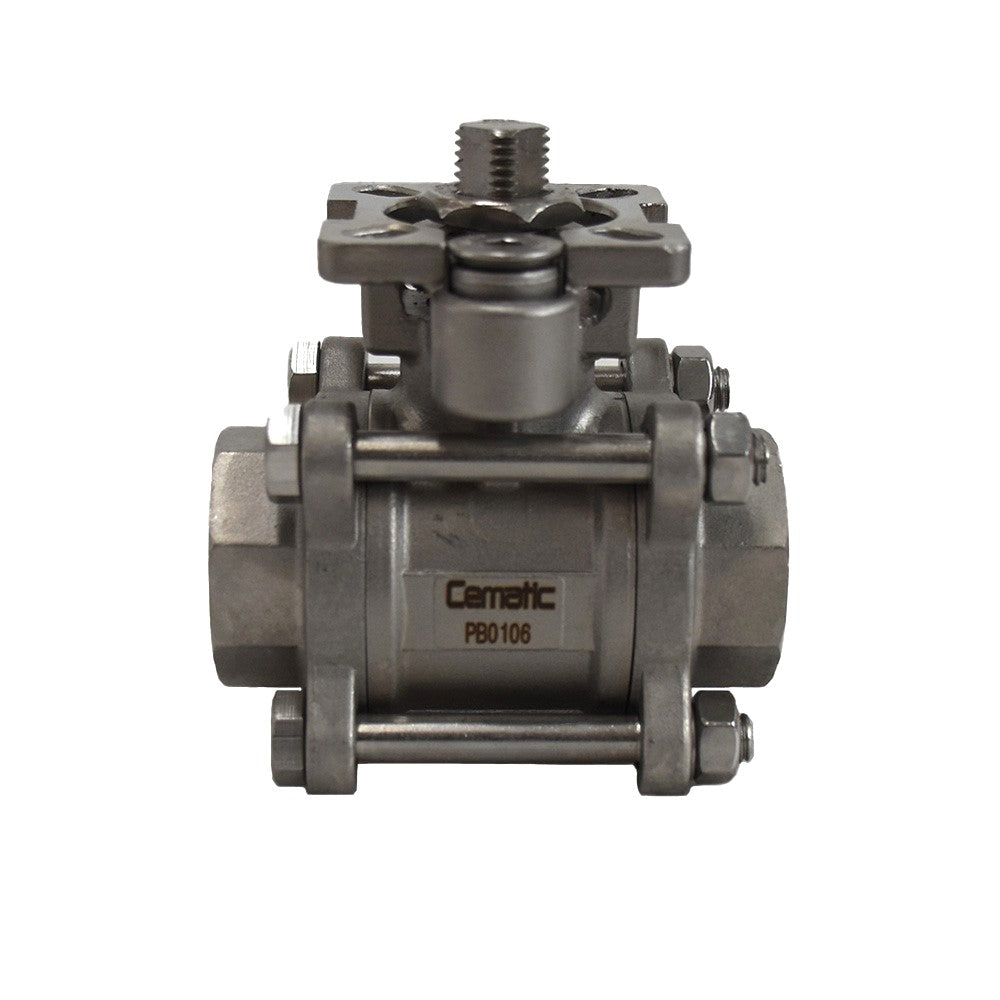

The three-piece design is the main differentiator of this product from one-piece or two-piece threaded ball valves. The central body houses the ball and seats, and two side caps with the NPT threaded connections are screwed onto both sides of the body. By unscrewing the side caps, the central body with the ball and seats becomes fully accessible — without removing the valve from the line, without cutting the pipe:

• Complete visual inspection: Check the condition of the ball and seats without disassembling the valve from the pipe. Detect wear, buildup, or damage before they cause a leak in service.
• Field seat replacement: PTFE or RPTFE seats are replaced by opening the central body — without buying a complete new valve. The cost of a seat kit is a fraction of the valve's cost. In installations with many service points, the accumulated savings in maintenance are significant.
• Cleaning of deposits: Fluids with dissolved solids or fine particles can generate deposits on the seats that prevent a bubble-tight seal. The three-piece design allows for complete manual cleaning of the interior without disassembling the valve.
• Maintenance without system shutdown: The side caps are unscrewed with the valve closed — the central body is removed for maintenance while the caps remain screwed to the pipe, containing the system. Intervention time is reduced from hours (complete valve replacement) to minutes (seat replacement).

Available Seats — PTFE and RPTFE

Virgin PTFE — The Standard Seat

Virgin PTFE is the standard seat for the SS316 threaded ball valve. Its characteristics:

• Chemical resistance: Compatible with virtually all fluids that SS316 resists — diluted acids, alkalis, organic solvents, industrial gases, water, and general process fluids
• Temperature: -20 °C to +180 °C in continuous service
• Sealing: Bubble-tight seal — the smooth surface of PTFE against the polished SS316 ball creates a perfect seal
• Friction: Very low coefficient of friction — the ball rotates on the PTFE seats with minimum operating torque, allowing the use of compact actuators
• First choice for: Water, aqueous solutions, industrial gases, low-pressure steam, diluted acids and alkalis, low-aggressiveness organic solvents

RPTFE (Reinforced PTFE) — Greater Mechanical Resistance

RPTFE is PTFE reinforced with glass or carbon fiber. It offers the same chemical properties as virgin PTFE with greater hardness and resistance to mechanical wear:

• Greater surface hardness: Better resists abrasion from fluids with fine suspended particles that would prematurely degrade virgin PTFE
• Less deformation under load: Virgin PTFE can flow (creep) under seat load in continuous high-pressure and high-temperature service — RPTFE has less tendency to permanent deformation, maintaining sealing force over more operating cycles
• Higher differential pressure: Recommended for valves that frequently operate with high differential pressure in the closed position
• First choice for: Fluids with fine suspended solids, high differential pressure service, frequent opening and closing cycles, installations where seat lifespan is critical
• Limitation: Slight reduction in tightness compared to virgin PTFE in low differential pressure conditions — for low-pressure services where absolute tightness is required, prefer virgin PTFE

Construction Materials

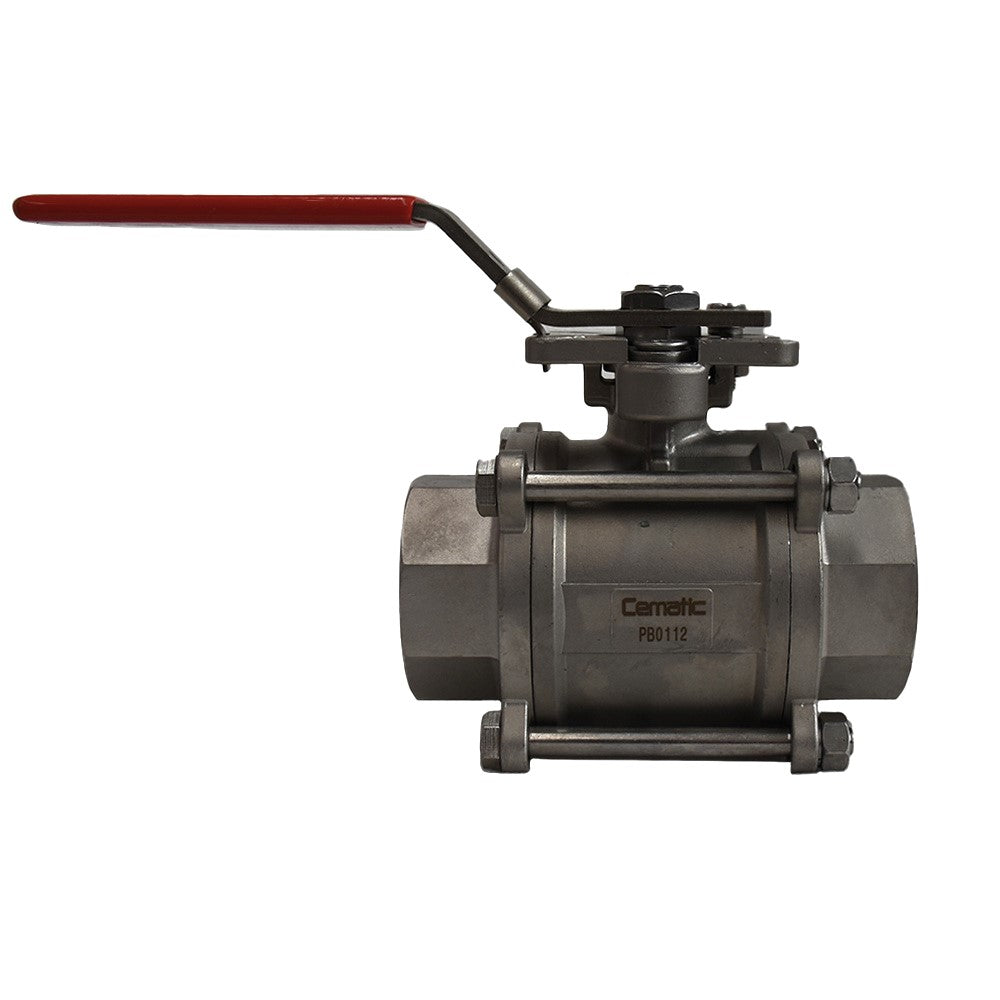

• Body: Three pieces in SS316 stainless steel — central body with ball and seats, plus two NPT threaded side caps. Fully disassemblable for field maintenance.
• Ball: SS316 stainless steel with mirror-polished finish — sealing surface free of scratches or porosities
• Seats: Standard virgin PTFE or RPTFE (reinforced PTFE) for greater mechanical resistance — specify when ordering
• Stem: SS316 stainless steel with PTFE packing and blowout-proof design
• Connection: NPT (ANSI B1.20.1) tapered thread on both side caps

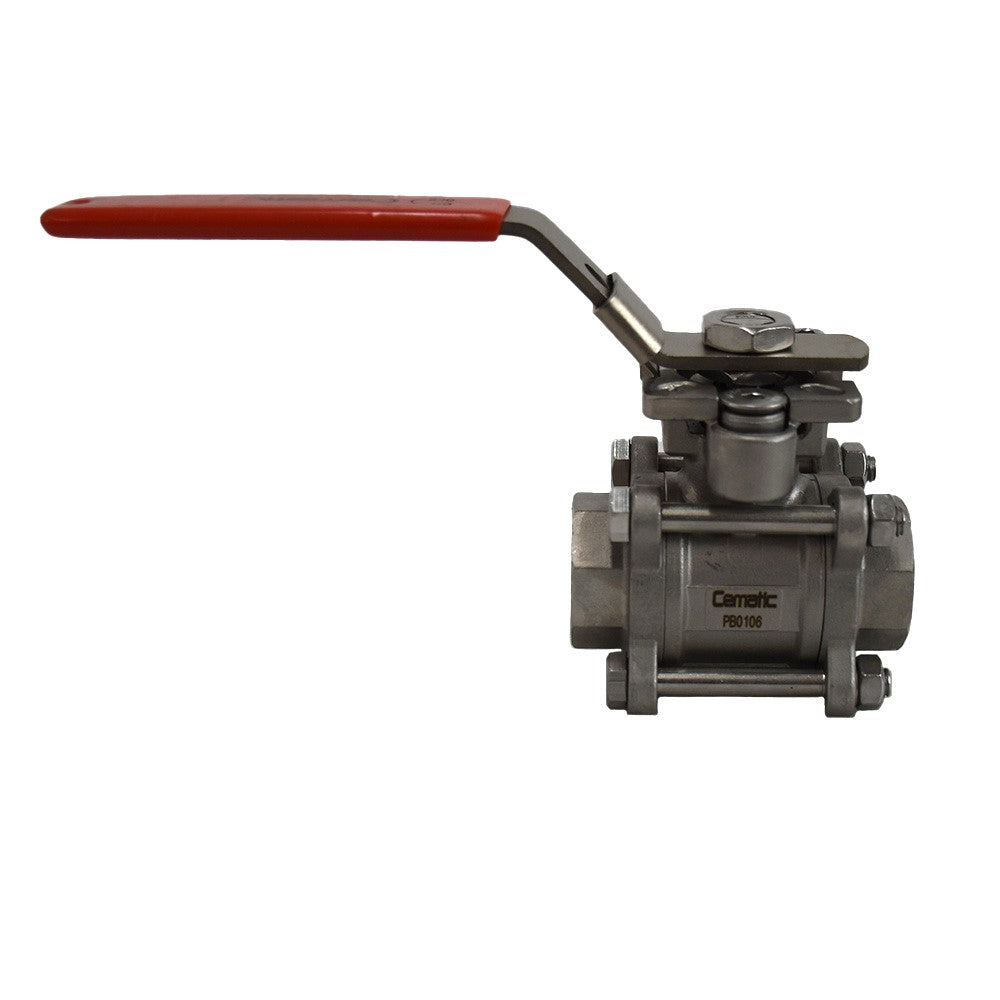

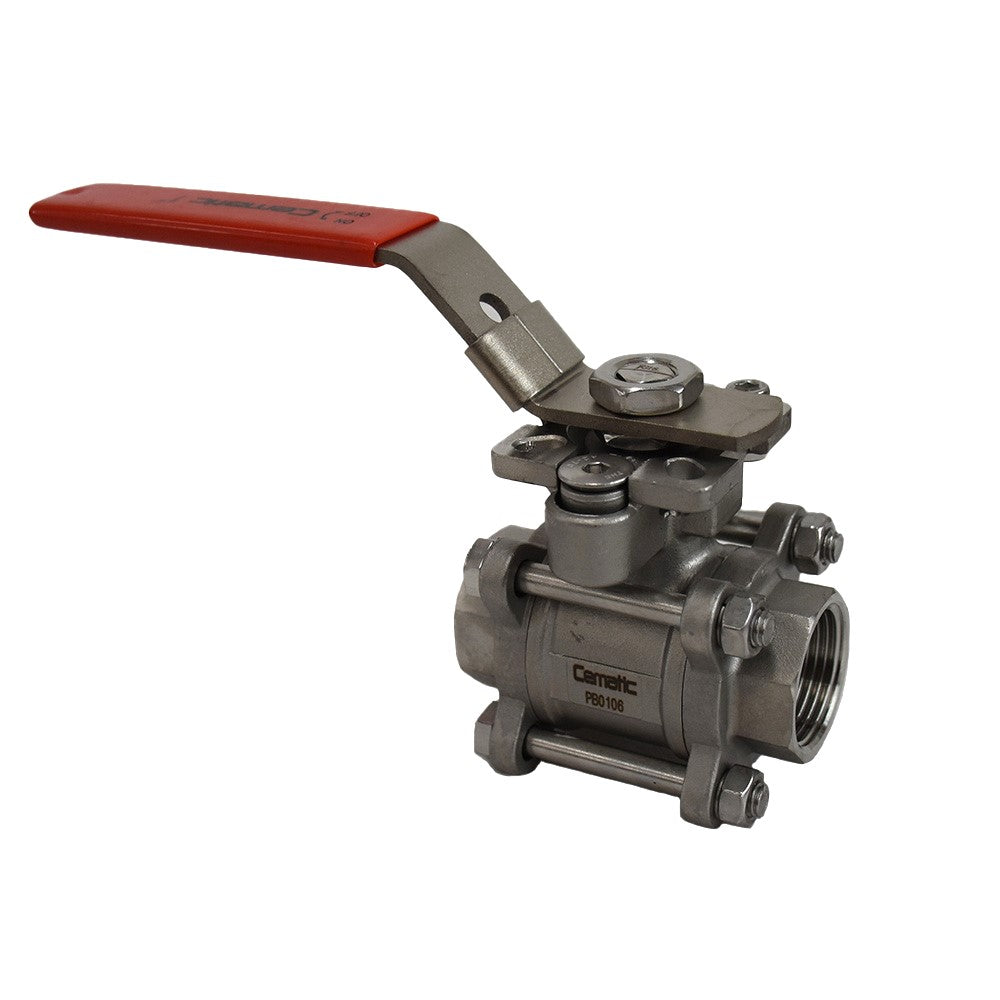

• Handle: SS316 stainless steel with lockable open and closed positions

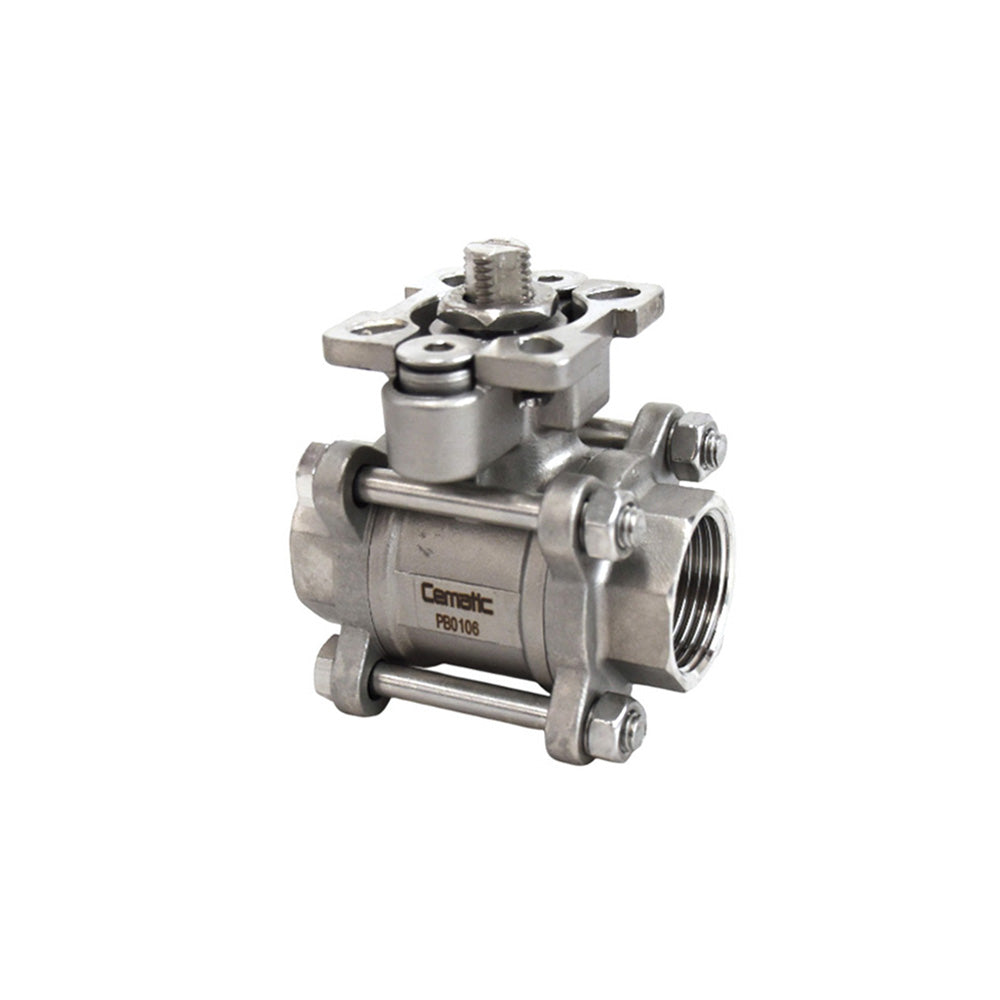

• Actuator mounting pad: Integrated ISO 5211 on all models

Technical Specifications

• Type: Floating quarter-turn ball valve
• Body design: Three-piece body — field disassemblable
• Body material: SS316 stainless steel
• Ball: Polished SS316
• Stem: SS316
• Seats: Standard virgin PTFE; RPTFE available
• Stem packing: PTFE
• Connection: NPT (ANSI B1.20.1) tapered thread
• Available diameters: ½" (DN15), ¾" (DN20), 1" (DN25), 1¼" (DN32), 1½" (DN40), 2" (DN50), 2½" (DN65), 3" (DN80)
• Nominal pressure: Up to PN64 at ambient temperature
• Operating temperature: -20 °C to +180 °C with PTFE or RPTFE seat
• Port: Standard Full Port
• Actuator mounting pad: Standard ISO 5211 on all models

Chemical compatibility of SS316

• ✅ Drinking water, process water, demineralized water, reverse osmosis water
• ✅ Seawater and saline solutions up to 1,000 ppm chlorides at ambient temperature
• ✅ Natural gas, LPG, nitrogen, CO₂, argon, oxygen, and compressed air
• ✅ Sulfuric acid H₂SO₄ up to 10%, hydrochloric acid HCl up to 10%, nitric acid HNO₃ up to 20%
• ✅ NaOH up to 20%, aqueous ammonia up to 28%
• ✅ Alcohols (methanol, ethanol, isopropanol) and acetates
• ✅ Vegetable oils, light mineral oils
• ✅ Low and medium pressure steam up to 150 °C with graphite packing
• ✅ Cryogenic fluids with cryogenic seat version available upon request
• ⚠️ Chlorides >1,000 ppm at elevated temperature: risk of pitting in SS316 — consult
• ❌ HF, H₂SO₄ >30%, concentrated ClO₂: use PFA anti-corrosive valve →

Comparison of body designs in SS316 threaded ball valves

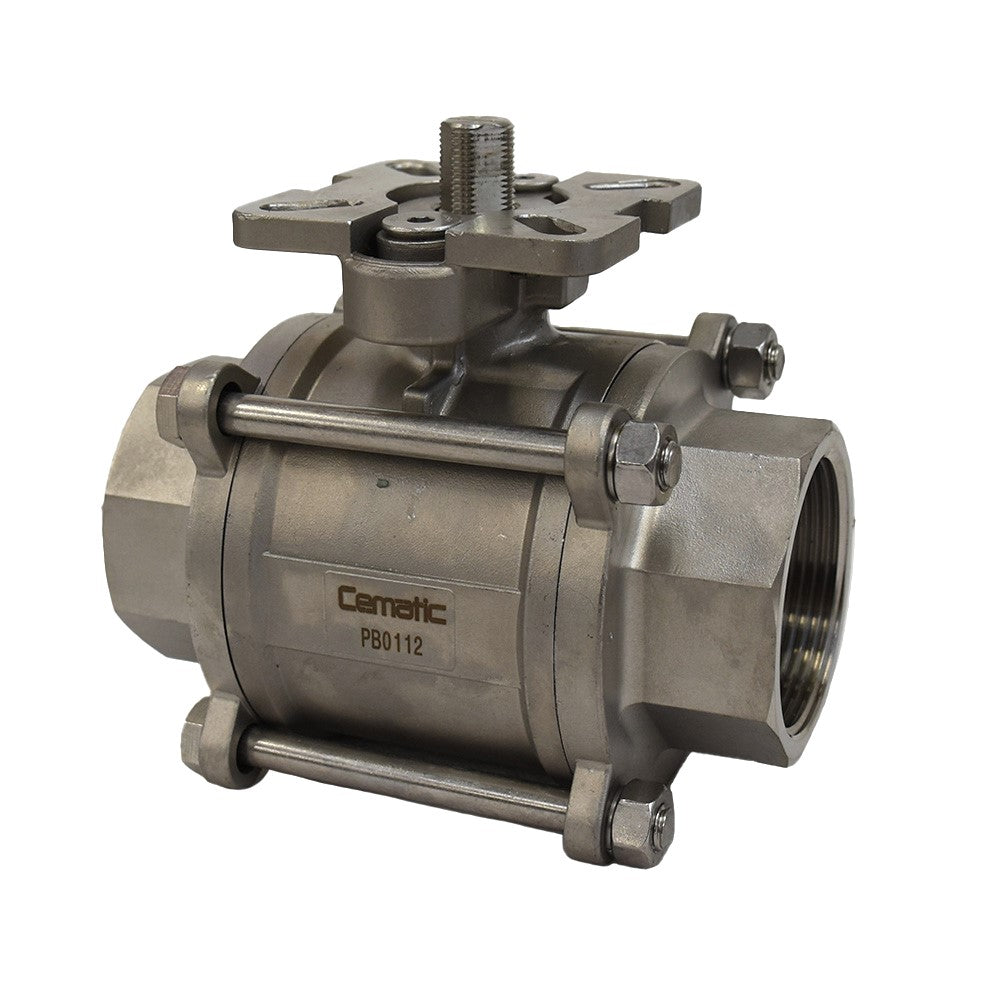

Automation — ISO 5211 for pneumatic or electric actuator

The integrated ISO 5211 mounting pad allows direct mounting of quarter-turn actuators without adapters. For the SS316 threaded ball in the most common diameters (½" to 2"), compact actuators with lower torque are sufficient — Cematic verifies the correct torque for each diameter and process pressure.

• Single-acting NC pneumatic actuator: For reagent dosing and services where closure upon control system failure is the safe state. See ball valve assemblies with pneumatic actuator →
• ON/OFF or modulating electric actuator: For installations without a compressed air network, 24 VDC power from battery or solar panel, or direct Modbus integration to SCADA. See ball valve assemblies with electric actuator →

The 10 most frequent uses in Mexican industrial installations

• Instrumentation manifolds: Isolation of pressure transmitters, gauges, and flowmeters in process plants. The ½" or ¾" SS316 three-piece ball allows seat verification and replacement without removing the valve from the manifold.
• Sampling points: Sample take-off valves in process water lines, chemical solutions, and gases in quality control laboratories.
• Natural gas and LPG distribution: Isolation of individual equipment in gas distribution networks. The NPT thread installs directly into existing connections without additional flanges.
• Instrumentation compressed air systems: Isolation of branches and equipment in instrumentation air networks — SS316 resists compressed air without corrosion.
• Purified water and reverse osmosis: Points of use and instrumentation isolation in purified water distribution systems. SS316 does not contaminate water with metal ions.
• Chemical industry — service points: Service valves at take-offs for diluted acids, alkalis, and aqueous reagents in laboratories and chemical plants.
• Steam systems: Isolation of steam traps, equipment bypasses, and distribution headers. Temperature up to 180 °C with standard PTFE seat.
• Food and pharmaceutical industry — auxiliary services: Distribution of non-critical process water, steam, and industrial gases in plant utility areas.
• Refrigeration systems: Isolation in industrial refrigeration circuits with HFC and HFO fluids compatible with SS316 and PTFE.
• Laboratory gases: Distribution of N₂, CO₂, Ar, and analytical gases. The ¼" and ½" threads are standard in laboratory gas manifolds.

For the complete range of SS316 NPT threaded ball valves, see NPT threaded stainless steel ball valve category →
